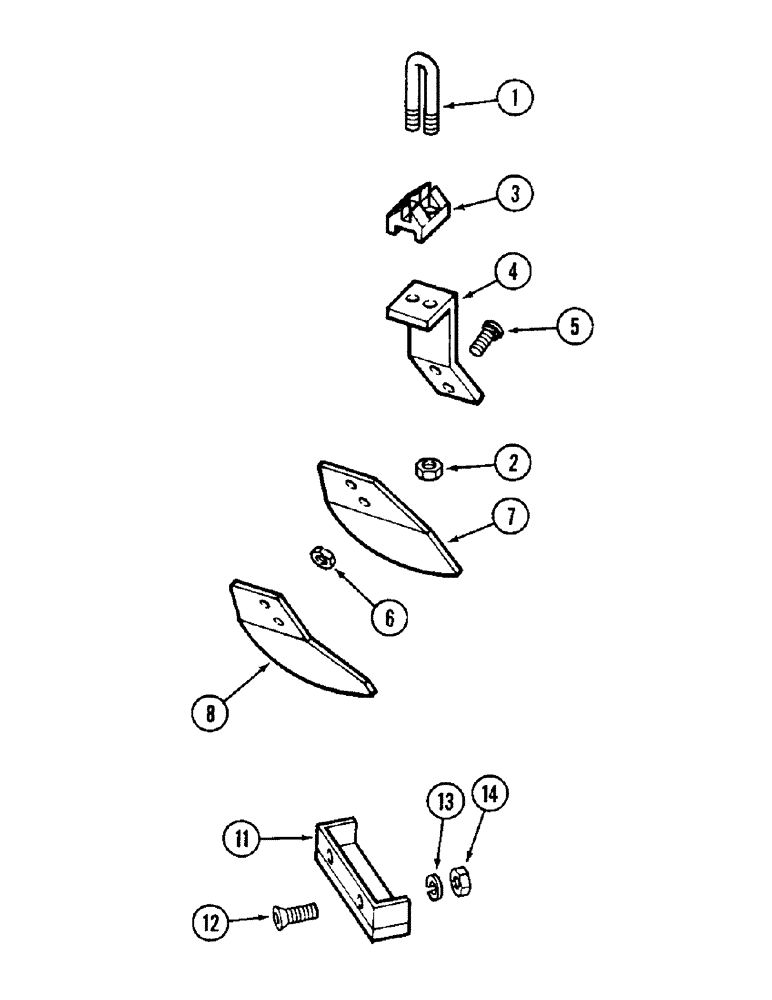

Запчасти Case IH RP (164[2]) - 10-1/2 INCH (266.7 MM) SPACING

1

T54785

BOLT

U-BOLT

15шт.

2

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

30шт.

3

T55808

CLIP

- scraper bar

15шт.

4

T54789

ARM

- scraper

15шт.

5

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

BOLT - 1/2 x 1-1/2" NC carriage (Grade 5)

30шт.

6

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

30шт.

7

T54788

HALF BLADE

BLADE - scraper

12шт.

8

T54790

HALF BLADE

BLADE - scraper bearing stand

3шт.

1

T54785

BOLT

U-BOLT

13шт.

2

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

26шт.

3

T55808

CLIP

- scraper bar

13шт.

4

T54789

ARM

- scraper

13шт.

5

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

BOLT - 1/2 x 1-1/2" NC carriage (Grade 5)

26шт.

6

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

26шт.

7

T54788

HALF BLADE

BLADE - scraper

10шт.

8

T54790

HALF BLADE

BLADE - scraper bearing stand

3шт.

1

T54785

BOLT

U-BOLT

11шт.

2

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

22шт.

3

T55808

CLIP

- scraper bar

11шт.

4

T54789

ARM

- scraper

11шт.

5

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

BOLT - 1/2 x 1-1/2" NC carriage (Grade 5)

22шт.

6

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

22шт.

7

T54788

HALF BLADE

BLADE - scraper

8шт.

8

T54790

HALF BLADE

BLADE - scraper bearing stand

3шт.

11

T55875

WEAR PLATE

PLATE - wear

1шт.

12

164-85

HEX SOC SCREW,Flat Hd, 5/8" - 11 x 2 1/2"

CAPSCREW - 5/8 x 2-1/2" NC flat head hex socket

2шт.

13

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

14

129-107

NUT,5/8"-11, G5

2шт.
