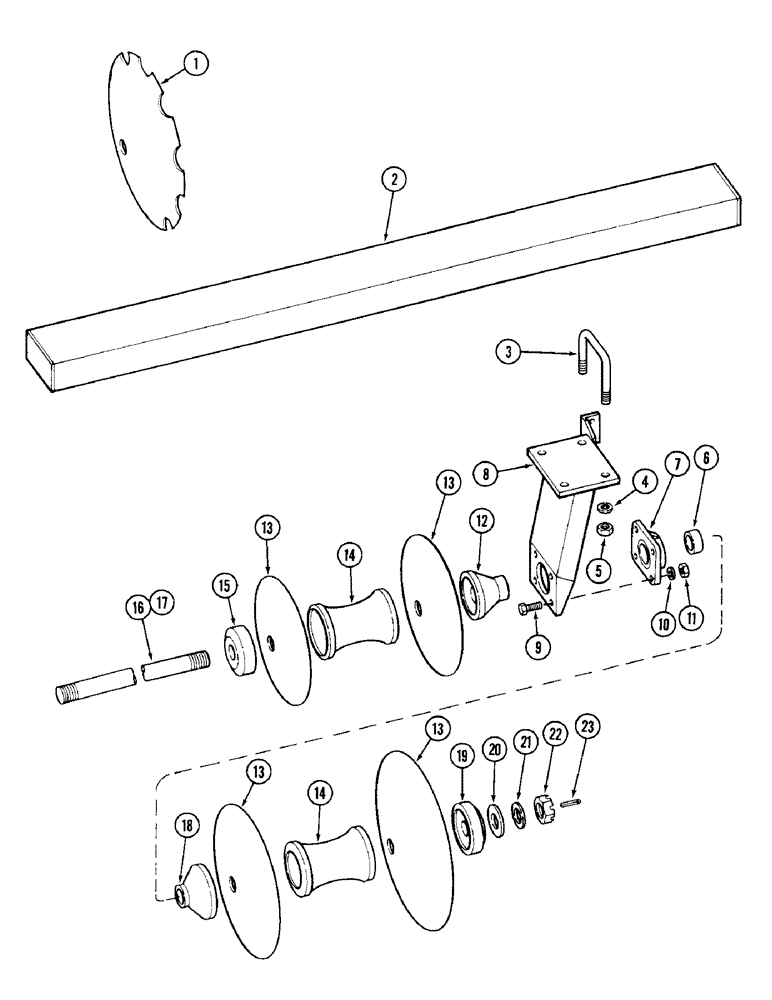

Запчасти Case IH RP (158) - REAR GANG - 10-1/2 INCH (266.7 MM) SPACING, 16 FOOT (4.9 M) CUT

1

T54815

BLADE - disk 24" (609.6 MM) x 6 gauge notch

16шт.

1

T54817

BLADE - disk 24 x 1/4" (609.6 x 6.4 MM) notch

16шт.

1

T54822

BLADE - disk 26 x 1/4" (660.4 x 6.4 MM) notch

16шт.

1

T54813

BLADE - disk 18" (457.2 MM) x 9 gauge notch

1шт.

1

T54812

BLADE

- disk 20" (508.0 MM) x 9 gauge notch

1шт.

1

T54811

BLADE

- disk 22" (558.8 MM) x 9 gauge notch

1шт.

2

T54833

BEAM - gang

1шт.

3

T54787

BOLT

U-BOLT

12шт.

4

192-29

LOCK WASHER,7/8"

7/8"

24шт.

5

129-109

NUT,7/8"-9, G5

24шт.

6

T54783

BUSHING,44.7mm ID x 55.55mm OD x 33.33mm L

- gang shaft

6шт.

7

T55532

HOUSING ASSY.

BEARING FLANGE ASSEMBLY

6шт.

8

T57451

STAND

- bearing

6шт.

9

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

24шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

24шт.

11

129-105

NUT,Hex, 1/2" - 13, Gr 5

24шт.

12

T54820

SPOOL

- half rear bearing

6шт.

13

T54814

BLADE - disk 24" (609.6 MM) x 6 gauge solid

16шт.

13

T54816

BLADE - disk 24 x 1/4" (609.6 x 6.4 MM) solid

16шт.

13

T54821

BLADE - disk 26 x 1/4" (660.4 x 6.4 MM) solid

16шт.

13

T54809

BLADE

- disk 18" (457.2 MM) x 9 gauge solid

1шт.

13

T54808

BLADE

- disk 20" (508.0 MM) x 9 gauge solid

1шт.

13

T54807

BLADE

- disk 22" (558.8 MM) x 9 gauge solid

1шт.

14

T54819

SPOOL

11шт.

15

T54781

SPOOL

END CAP

2шт.

16

T55709

SHAFT

SHAFT - gang 93" (2362.2 MM)

1шт.

17

T55712

SHAFT

SHAFT - gang 103-1/2" (2628.9 MM)

1шт.

18

T54780

SPOOL

- half front bearing

6шт.

19

T54782

SPOOL

END CAP

2шт.

20

T54859

WASHER

- 4 x 1-3/4 x 3/8"

2шт.

21

195-117

WASHER - 4 x 1-7/8" x 7 gauge

2шт.

22

T54854

SLOTTED NUT

NUT - 1-3/4" slotted

4шт.

23

138-164

LOCK PIN,5/16" x 2 3/4", Slotted

Pin, 5/16" x 2 3/4", Slotted

4шт.
