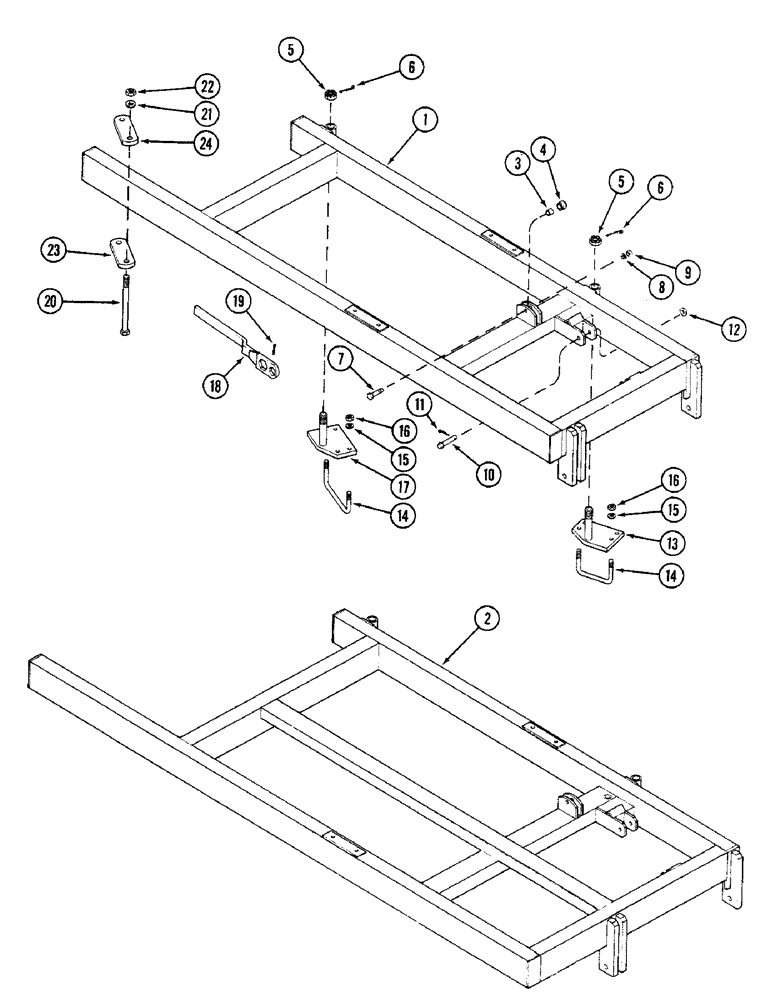

Запчасти Case IH RP (006) - MAIN FRAME, PRIOR TO SERIAL NUMBER 1614210

1

T54737

FRAME

- 10 foot (3.1 M) order T55590

1шт.

2

T54730

FRAME

- 12 through 20 foot (3.7 through 6.1 M)

1шт.

3

T54732

BUSHING

1шт.

4

T54731

ROLLER

1шт.

5

T54854

SLOTTED NUT

NUT - 1-3/4" slotted

2шт.

6

132-159

COTTER PIN,1/4" x 3"

Pin, Split (Cotter), 1/4" x 3"

2шт.

7

113-717

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

1шт.

8

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

9

129-108

NUT,3/4"-10, G5

1шт.

10

T55156

PIN - 1 x 5-1/2" (25.4 x 139.7 MM)

1шт.

11

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

12

195-111

WASHER,1"

- 2-1/2 x 1-1/16" x 8 gauge

1шт.

13

T54756

PLATE

- front gang pivot

1шт.

14

T54787

BOLT

U-BOLT

4шт.

15

192-29

LOCK WASHER,7/8"

7/8"

8шт.

16

129-109

NUT,7/8"-9, G5

8шт.

17

T54757

PLATE - rear gang pivot

1шт.

18

T54827

WRENCH

1шт.

19

132-352

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

1шт.

20

T54856

BOLT

BOLT - 1-1/4 x 16" NC hex 10 to 14 foot (3.1 to 4.3 M)

4шт.

20

T54856

BOLT

BOLT - 1-1/4 x 16" NC hex 16 to 20 foot (4.9 to 6.1 M)

8шт.

21

195-113

WASHER,1 1/4"

- 3 x 1-3/8" x 8 gauge 10 to 14 foot (3.1 to 4.3 M)

4шт.

21

195-113

WASHER,1 1/4"

- 3 x 1-3/8" x 8 gauge 16 to 20 foot (4.9 to 6.1 M)

8шт.

22

129-112

NUT,1 1/4"-7, G5

- 1-1/4" NC hex 10 to 14 foot (3.1 to 4.3 M)

4шт.

22

129-112

NUT,1 1/4"-7, G5

- 1-1/4" NC hex 16 to 20 FOOT (4.9 to 6.1 M)

8шт.

23

T54759

PLATE - clamp bottom 10 to 14 foot (3.1 to 4.3 M)

2шт.

23

T54759

PLATE - clamp bottom 16 to 20 foot (4.9 to 6.1 M)

4шт.

24

T54760

PLATE - clamp top 10 to 14 foot (3.1 to 4.3 M)

2шт.

24

T54760

PLATE - clamp top 16 to 20 foot (4.9 to 6.1 M)

4шт.
