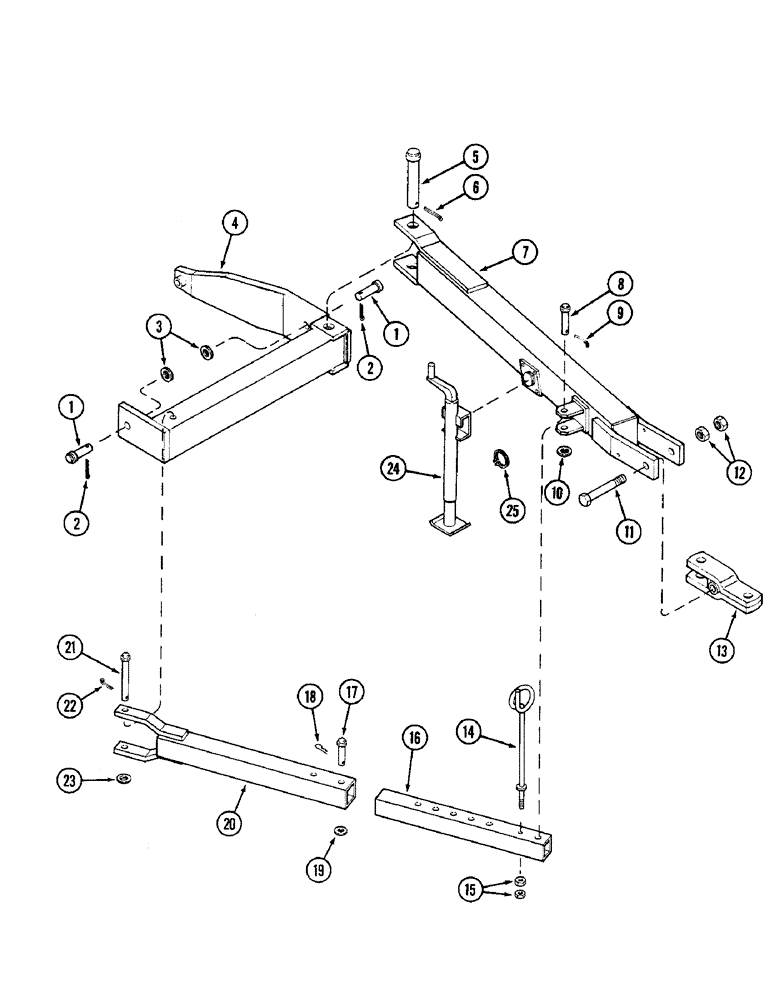

Запчасти Case IH RP (004) - HITCH

1

T54872

PIN

- 1-1/4 x 4-3/8" (31.8 x 111.1 MM)

2шт.

2

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

2шт.

3

195-113

WASHER,1 1/4"

- 3 x 1-3/8" x 8 gauge

2шт.

4

T55454

HITCH - leveling arm

1шт.

5

T55439

PIN - 1-3/4 x 10-1/4" (44.5 x 260.4 MM)

1шт.

6

132-319

COTTER PIN,1/4" x 3"

Pin, Split (Cotter), 1/4" x 3"

1шт.

7

T55442

HITCH - main tube 1.625" ID x 2" OD x 73.75" L

1шт.

8

T54734

PIN

- 1 x 5-1/4" (25.4 x 133.4 MM)

1шт.

9

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

1шт.

10

195-111

WASHER,1"

- 2-1/2 x 1-1/16" x 8 gauge

1шт.

11

13-20128

BOLT,Hex, 1-1/4" - 7 x 8", Gr 5

- 1-1/4 x 8" NC hex (Grade 5)

1шт.

12

129-152

JAM NUT,Jam, 1 1/4"-7, G5

- 1-1/4" NC hex

2шт.

13

T54873

CLEVIS

- hitch

1шт.

14

T54762

CARRIER - hose

1шт.

15

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

16

T54751

MEMBER - hitch adjusting

1шт.

17

T54750

PIN

- 1 x 4-3/8" (25.4 x 111.1 MM)

1шт.

18

136-162

HAIR PIN COTTER,Int, 1/2" x .250"

COTTER

1шт.

19

195-111

WASHER,1"

- 2-1/2 x 1-1/16" x 8 gauge

1шт.

20

T55441

TUBE - hitch adjustment 3.5" OD x 42" L

1шт.

21

T54868

PIN - 1 x 8-3/4" (25.4 x 222.3 MM)

1шт.

22

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

1шт.

23

195-111

WASHER,1"

- 2-1/2 x 1-1/16" x 8 gauge

1шт.

24

T54768

JACK

- hitch

1шт.

25

T33700

SNAP RING,#250, Ext

Ring, Snap, #250, Ext

1шт.
