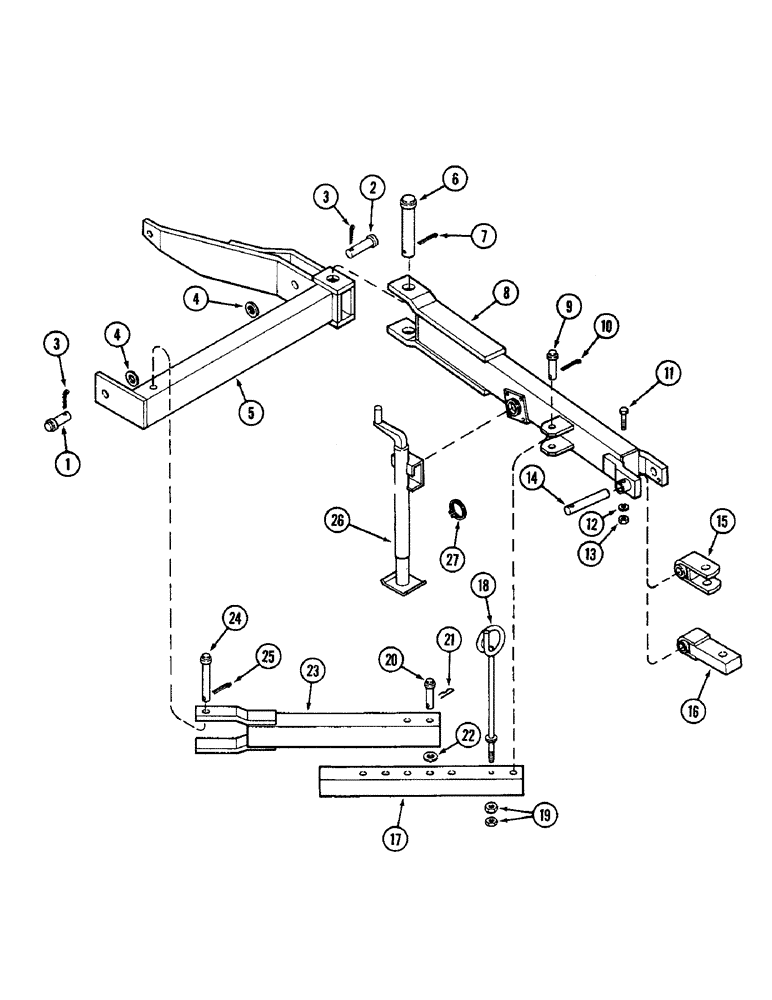

Запчасти Case IH RP (002) - HITCH

1

T54747

PIN - 1-1/4 x 3-5/8" (31.8 x 92.1 MM)

1шт.

2

T54746

PIN - 1-1/4 x 4-3/4" (31.8 x 120.7 MM)

1шт.

3

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

2шт.

4

195-113

WASHER,1 1/4"

- 3 x 1-3/8" x 8 gauge

2шт.

5

T54745

HITCH - leveling arm

1шт.

6

T54772

PIN - 1-3/4 x 9-3/4" (44.5 x 247.7 MM)

1шт.

7

132-319

COTTER PIN,1/4" x 3"

Pin, Split (Cotter), 1/4" x 3"

1шт.

8

T54769

HITCH - main tube

1шт.

9

T54953

PIN

- 1 x 4-3/4" (25.4 x 120.7 MM)

1шт.

10

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

1шт.

11

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

14

T54771

PIN - 1-1/4 x 7-3/8" (31.8 x 187.3 MM)

1шт.

15

T54770

CLEVIS - yoke type

1шт.

16

T54724

CLEVIS - block type

1шт.

17

T54751

MEMBER - hitch adjusting

1шт.

18

T54762

CARRIER - hose

1шт.

19

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

20

T54750

PIN

- 1 x 4-3/8" (25.4 x 111.1 MM)

1шт.

21

136-162

HAIR PIN COTTER,Int, 1/2" x .250"

COTTER

1шт.

22

195-111

WASHER,1"

- 2-1/2 x 1-1/16" x 8 gauge

1шт.

23

T54748

TUBE - hitch adjustment

1шт.

24

T54749

PIN - 1 x 7-1/2" (25.4 x 190.5 MM)

1шт.

25

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

1шт.

26

T54768

JACK

- hitch

1шт.

27

T33700

SNAP RING,#250, Ext

Ring, Snap, #250, Ext

1шт.
