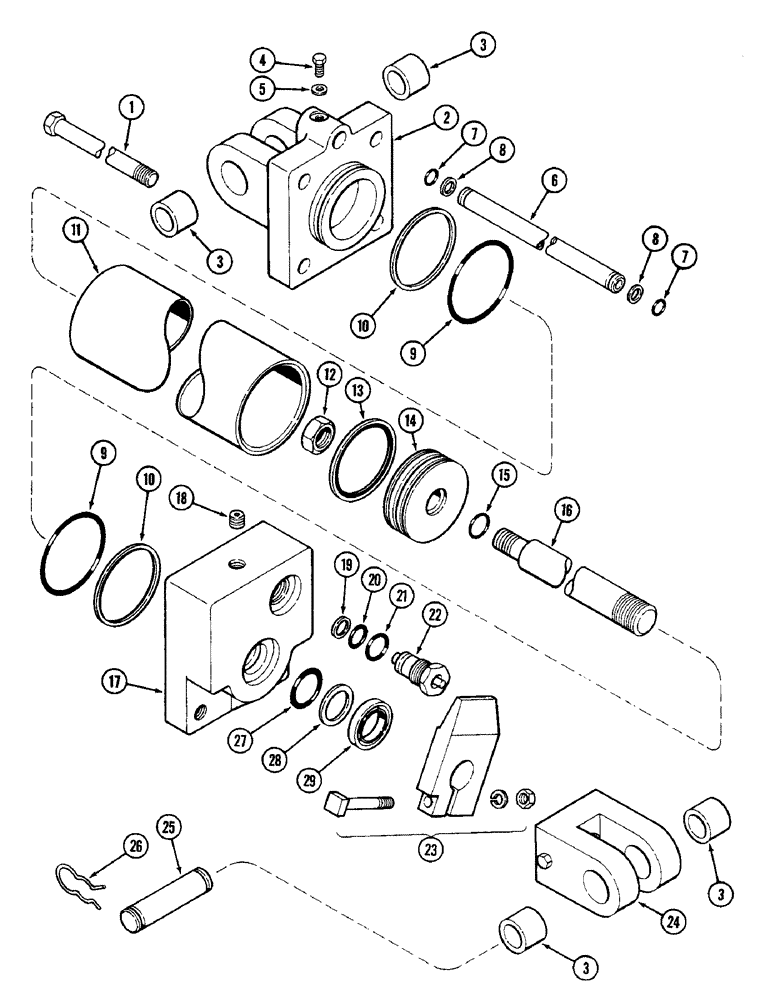

Запчасти Case IH RP (038) - T57365 CYLINDER 4 X 8 INCH (101.6 X 203.2 MM)
№
Артикул
Название
Примечание
Количество
T57365
CYLINDER
- complete
1шт.
1
T57333
ROD - tie
4шт.
2
T56858
CLEVIS - butt
1шт.
3
T57302
BUSHING
4шт.
4
13-46
BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd
- 1/4 x 3/8" NC hex (Grade 5)
1шт.
5
195-401
SEALING WASHER,3/8"
WASHER - sealing 3/8"
1шт.
6
T56839
TUBE - manifold
1шт.
7
T56862
O-RING
- 5/8 x 1/2 x 1/16" (15.9 x 12.7 x 1.6 MM)
2шт.
Part of seal kit P/N T63330
1шт.
8
T56869
WASHER
- backup
2шт.
Part of seal kit P/N T63330
1шт.
9
T56867
O-RING
- 3-7/8 x 3-5/8 x 1/8" (98.4 x 92.1 x 3.2 MM)
2шт.
Part of seal kit P/N T63330
1шт.
10
T56875
WASHER
- backup
2шт.
Part of seal kit P/N T63330
1шт.
11
T57332
TUBE - cylinder
1шт.
12
131-1174
LOCK NUT,1 1/4"-14, GA
NUT - lock 1" - 14
1шт.
13
T56879
SEAL
1шт.
Part of seal kit P/N T63330
1шт.
14
T57334
PISTON
1шт.
15
R15365
O-RING,0.989" ID x 1.129" OD x 0.07"
- 1-1/8 x 1 x 1/16" (28.6 x 25.4 x 1.6 MM)
1шт.
Part of seal kit P/N T63330
1шт.
16
T56837
ROD - piston
1шт.
17
T57335
GLAND
1шт.
18
221-1844
PLUG,Hex Soc, 1/2"-14
- pipe 1/2"
1шт.
19
T56870
WASHER
- backup
1шт.
Part of seal kit P/N T63330
1шт.
20
A17526
O-RING,0.614" ID x 0.754" OD x 0.7"
- 3/4 x 5/8 x 1/16" (19.1 x 15.9 x 1.6 MM)
1шт.
Part of seal kit P/N T63330
1шт.
21
T56868
O-RING
- 15/16 x 49/64 x 3/32" (23.8 x 19.5 x 2.4 MM)
1шт.
Part of seal kit P/N T63330
1шт.
22
T56860
VALVE
ASSEMBLY
1шт.
23
T56853
PLATE
ASSEMBLY - striker
1шт.
24
T56854
CLEVIS
ASSEMBLY
1шт.
25
T52925
PIN
- clevis
2шт.
26
136-251
HAIR PIN COTTER,Int, 7/16" x .177"
PIN, SPLIT (COTTER), Int, 7/16" x .177"
4шт.
27
T13224
O-RING,1.484" ID x 1.762" OD x 0.139"
- 1-3/4 x 1-1/2 x 1/8" (44.5 x 38.1 x 3.2 MM)
1шт.
Part of seal kit P/N T63330
1шт.
28
H745687
WASHER
- backup
1шт.
Part of seal kit P/N T63330
1шт.
29
T52945
WIPER SEAL
SEAL - wiper
1шт.
Part of seal kit P/N T63330
1шт.
T63330
SEAL KIT, Includes Refs. 7, 8, 9, 10, 13, 15, 19, 20, 21, 27, 28 and 29
1шт.
