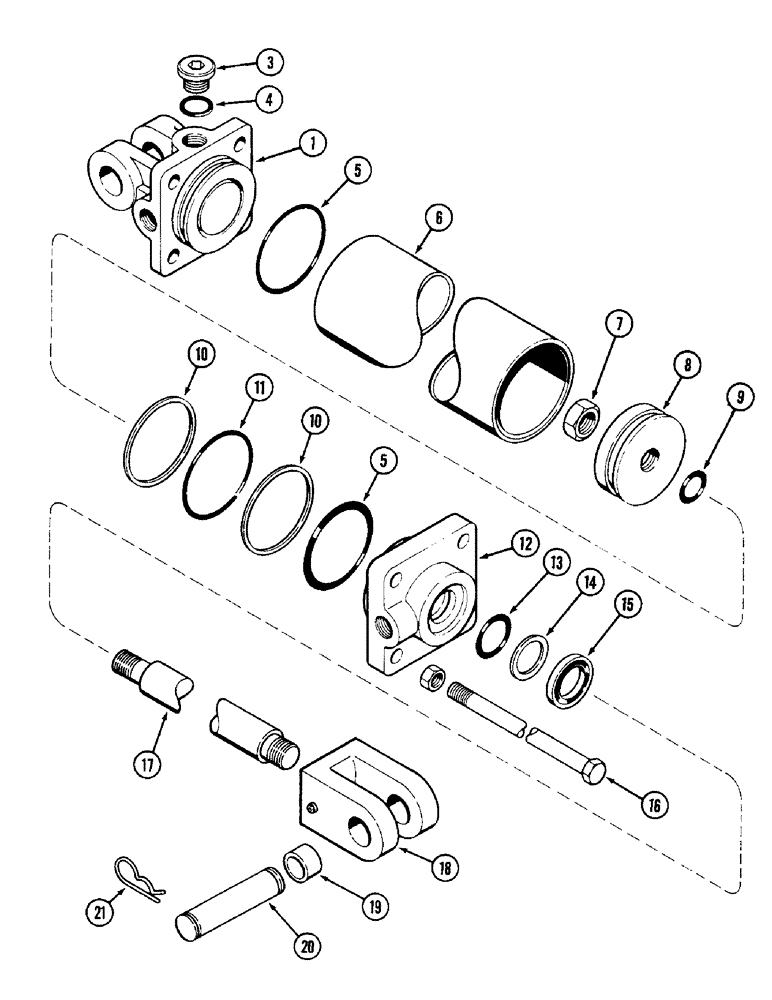

Запчасти Case IH RP (036) - T56444 CYLINDER 4 X 8 INCH (101.6 X 203.2 MM)

T56444

CYLINDER - complete

2шт.

1

T55889

BASE - cylinder

1шт.

3

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Assy Hex Soc, 3/4"-16 ORB

1шт.

5

T52928

O-RING

- 3-41/64 x 3-15/64 x .210" (92.5 x 82.2 x 5.6 MM)

2шт.

Part of seal kit P/N T63279

1шт.

6

T52937

TUBE - cylinder

1шт.

7

131-1174

LOCK NUT,1 1/4"-14, GA

NUT - piston rod 1" - 14

1шт.

8

T52939

PISTON

1шт.

9

R15365

O-RING,0.989" ID x 1.129" OD x 0.07"

- 1-1/8 x 1 x 1/16" (28.6 x 25.4 x 1.6 MM)

1шт.

Part of seal kit P/N T63279

1шт.

10

A23535

OIL SEAL

WASHER - backup

2шт.

Part of seal kit P/N T63279

1шт.

11

A30895

O-RING,0.21" Thk x 3.6" ID, -342, Cl 5, 75 Duro

- 3-7/8 x 3-1/2 x 3/16" (98.4 x 88.9 x 4.8 MM)

1шт.

Part of seal kit P/N T63279

1шт.

12

T56499

GLAND

HEAD - cylinder

1шт.

13

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

- 1-3/4 x 1-1/2 x 1/8" (44.5 x 38.1 x 3.2 MM)

1шт.

Part of seal kit P/N T63279

1шт.

14

H745687

WASHER

- backup

1шт.

Part of seal kit P/N T63279

1шт.

15

T52945

WIPER SEAL

SEAL - wiper

1шт.

Part of seal kit P/N T63279

1шт.

16

T52941

BOLT

ROD - tie

4шт.

17

T52936

ROD

- piston

1шт.

18

T56500

CLEVIS

ASSEMBLY

1шт.

19

T56501

BUSHING

2шт.

20

T52925

PIN

- clevis

2шт.

21

T52926

CLIP

COTTER

4шт.

T63279

KIT

SEAL KIT, Includes Refs. 5, 9, 10, 11, 13, 14 and 15

1шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

0-RING - 5/8 x 13/16 x 3/32" (15.9 x 20.6 x 2.4 MM)

1шт.
