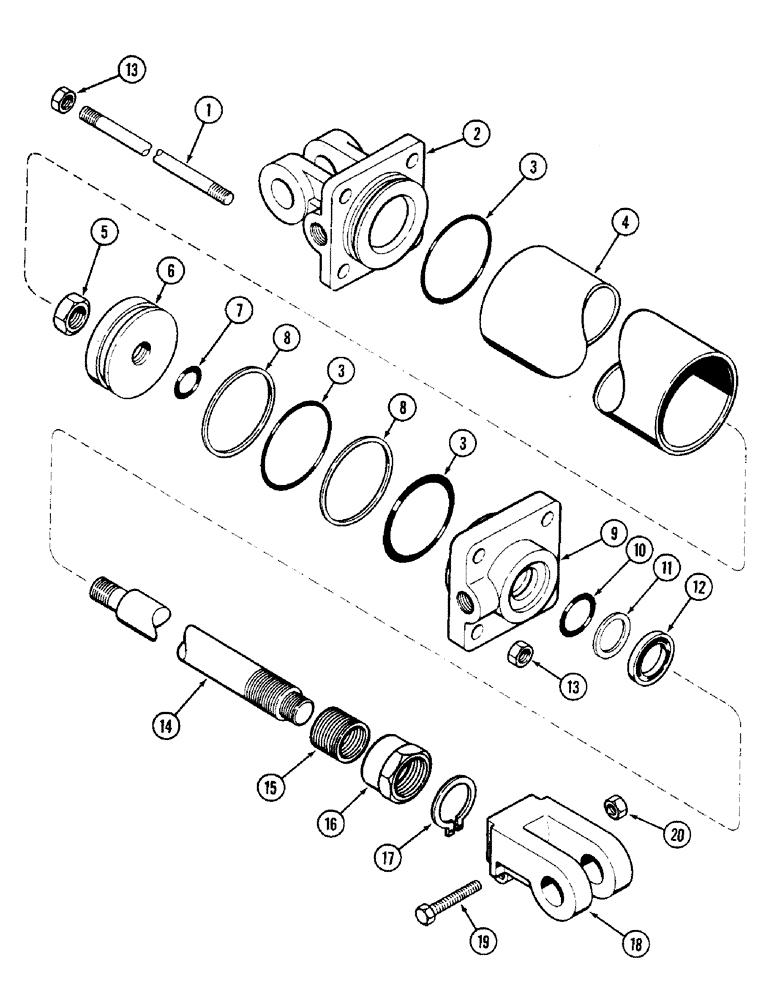

Запчасти Case IH RP (034) - T55391 CYLINDER 4 X 8 INCH (101.6 X 203.2 MM)

T55391

CYLINDER ASSY.

CYLINDER - complete

2шт.

1

B17263

ROD - tie

4шт.

2

B17282

BASE

- cylinder

1шт.

3

A30895

O-RING,0.21" Thk x 3.6" ID, -342, Cl 5, 75 Duro

- 3-7/8 x 3-1/2 x 3/16" (98.4 x 88.9 x 4.8 MM)

3шт.

Part of seal kit P/N B17233

1шт.

4

B17239

TUBE - cylinder

1шт.

5

131-914

NUT,1"-14

NUT - piston rod 1" NF

1шт.

6

B17276

PISTON

1шт.

7

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- 1-1/4 x 1 x 1/8" (31.8 x 25.4 x 3.2 MM)

1шт.

Part of seal kit P/N B17233

1шт.

8

B17285

SEAL - backup

2шт.

Part of seal kit P/N B17233

1шт.

9

B17270

HEAD

- cylinder

1шт.

10

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

- 1-1.2 x 1-1/4 x 1/8" (38.1 x 31.8 x 3.2 MM)

1шт.

Part of seal kit P/N B17233

1шт.

11

B17298

BACK-UP RING

SEAL - backup

1шт.

Part of seal kit P/N B17233

1шт.

12

B17291

WIPER SEAL

SEAL - wiper

1шт.

Part of seal kit P/N B17233

1шт.

13

25-1110

NUT,5/8"-18, G5

- tie rod 5/8" NF

8шт.

14

B17249

ROD

- piston

1шт.

15

B17257

STOP

COLLAR - stop

1шт.

16

B17259

STOP

COLLAR - stop

1шт.

17

A7611

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

1шт.

18

T55844

CLEVIS

- rod (Order B17255)

1шт.

19

61-628

HEX SOC SCREW,3/8"-16 x 1 3/4"

CAPSCREW - 3/8 x 1-3/4" NC socket head

1шт.

20

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

1шт.

B17233

SEAL

KIT, Includes Refs. 3, 7, 8, 10, 11 and 12

1шт.
