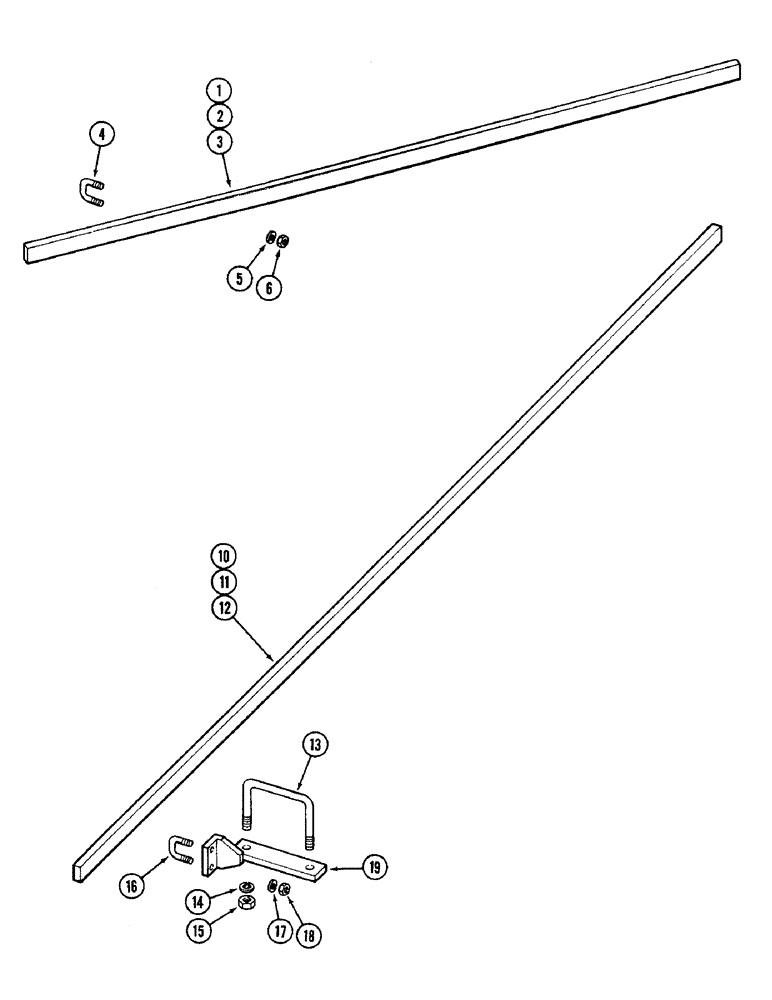

Запчасти Case IH RP (210[3]) - 16 FOOT (4.9 M) CUT

1

T54832

BAR - scraper 184" (4673.6 MM)

1шт.

4

T54786

BOLT

U-BOLT

6шт.

5

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

6

129-105

NUT,Hex, 1/2" - 13, Gr 5

12шт.

2

T54840

BAR - scraper 220" (5588.0 MM)

1шт.

4

T54786

BOLT

U-BOLT

6шт.

5

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

6

129-105

NUT,Hex, 1/2" - 13, Gr 5

12шт.

3

T54848

BAR - scraper 244" (6197.6 MM)

1шт.

4

T54786

BOLT

U-BOLT

6шт.

5

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

6

129-105

NUT,Hex, 1/2" - 13, Gr 5

12шт.

10

T54836

BAR - scraper 197" (5003.8 MM)

1шт.

13

T54764

BOLT

U-BOLT

1шт.

14

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

15

129-108

NUT,3/4"-10, G5

2шт.

16

T54786

BOLT

U-BOLT

7шт.

17

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

14шт.

18

129-105

NUT,Hex, 1/2" - 13, Gr 5

14шт.

19

T54777

BRACKET - scraper bar

1шт.

11

T54844

BAR - scraper 229" (5816.6 MM)

1шт.

13

T54764

BOLT

U-BOLT

1шт.

14

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

15

129-108

NUT,3/4"-10, G5

2шт.

16

T54786

BOLT

U-BOLT

7шт.

17

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

14шт.

18

129-105

NUT,Hex, 1/2" - 13, Gr 5

14шт.

19

T54777

BRACKET - scraper bar

1шт.

12

T54850

BAR - scraper 250" (6350.0 MM)

1шт.

13

T54764

BOLT

U-BOLT

1шт.

14

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

15

129-108

NUT,3/4"-10, G5

2шт.

16

T54786

BOLT

U-BOLT

7шт.

17

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

14шт.

18

129-105

NUT,Hex, 1/2" - 13, Gr 5

14шт.

19

T54777

BRACKET - scraper bar

1шт.
