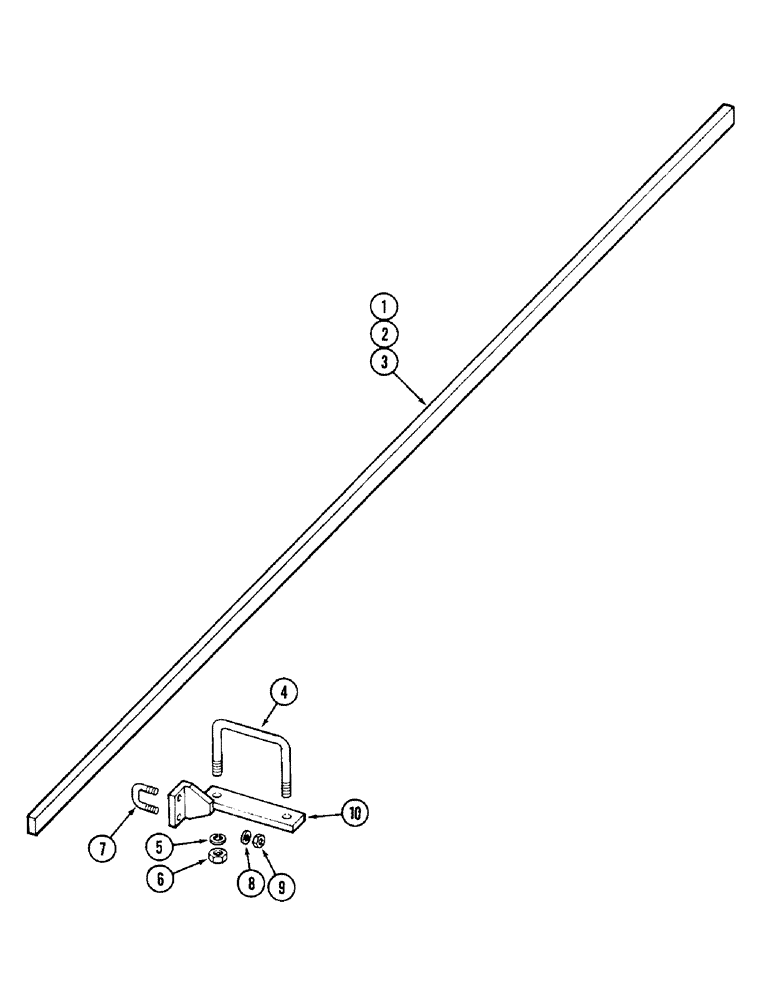

Запчасти Case IH RP (208[1]) - 18 FOOT (5.5 M) CUT

1

T54836

BAR - scraper 197" (5003.8 MM)

1шт.

4

T54764

BOLT

U-BOLT

1шт.

5

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

6

129-108

NUT,3/4"-10, G5

2шт.

7

T54786

BOLT

U-BOLT

7шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

14шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

14шт.

10

T54777

BRACKET - scraper bar

1шт.

2

T54844

BAR - scraper 229" (5816.6 MM)

1шт.

4

T54764

BOLT

U-BOLT

1шт.

5

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

6

129-108

NUT,3/4"-10, G5

2шт.

7

T54786

BOLT

U-BOLT

7шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

14шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

14шт.

10

T54777

BRACKET - scraper bar

1шт.

3

T54850

BAR - scraper 250" (6350.0 MM)

1шт.

4

T54764

BOLT

U-BOLT

1шт.

5

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

6

129-108

NUT,3/4"-10, G5

2шт.

7

T54786

BOLT

U-BOLT

7шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

14шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

14шт.

10

T54777

BRACKET - scraper bar

1шт.
