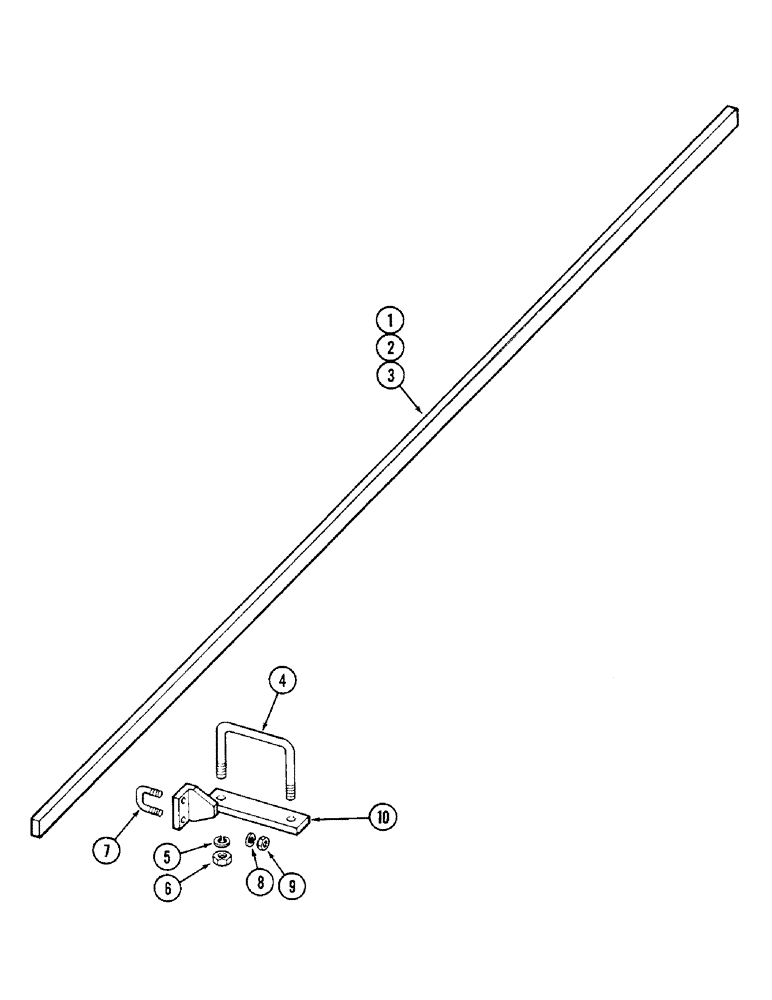

Запчасти Case IH RP (206[2]) - 14 FOOT (4.3 M) CUT

1

T54853

BAR - scraper 124" (3149.6 MM)

1шт.

4

T54764

BOLT

U-BOLT

14шт.

5

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

6

129-108

NUT,3/4"-10, G5

2шт.

7

T54786

BOLT

U-BOLT

4шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

10

T54777

BRACKET - scraper bar

1шт.

2

T54806

BAR - scraper 154" (3911.6 MM)

1шт.

4

T54764

BOLT

U-BOLT

1шт.

5

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

6

129-108

NUT,3/4"-10, G5

2шт.

7

T54786

BOLT

U-BOLT

5шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

10шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

10шт.

10

T54777

BRACKET - scraper bar

1шт.

3

T54825

BAR - scraper 176" (4470.4 MM)

1шт.

4

T54764

BOLT

U-BOLT

3шт.

5

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

6

129-108

NUT,3/4"-10, G5

6шт.

7

T54786

BOLT

U-BOLT

7шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

14шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

14шт.

10

T54777

BRACKET - scraper bar

3шт.
