Запчасти Case IH RP (202[2]) - 18 FOOT (5.5 M) CUT 9 INCH (228.6 MM) SPACING

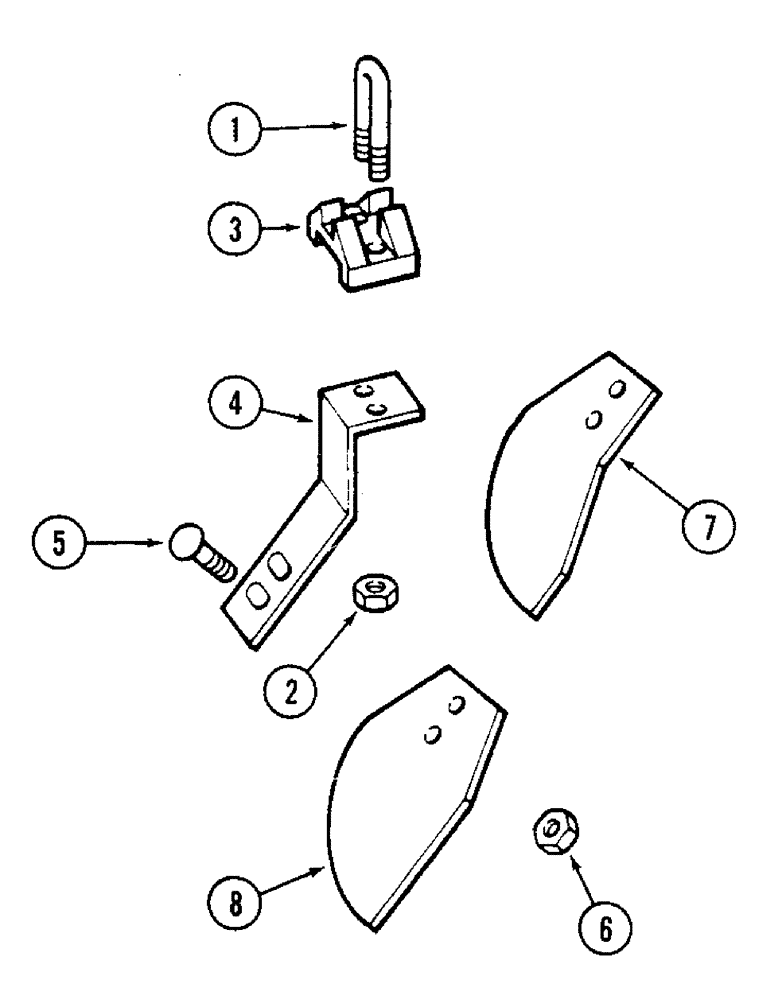

Схема запчастей Case IH RP - (202[2]) - 18 FOOT (5.5 M) CUT 9 INCH (228.6 MM) SPACING

Артикул

Название

Примечание

Количество

1

T54785

BOLT

U-BOLT

21шт.

2

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

42шт.

3

T55808

CLIP

- scraper bar

21шт.

4

T54789

ARM

- scraper

21шт.

5

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

BOLT - 1/2 x 1-1/2" NC carriage (Grade 5)

42шт.

6

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

42шт.

7

T54790

HALF BLADE

BLADE - scraper bearing stand

6шт.

8

T54788

HALF BLADE

BLADE - scraper

15шт.

1

T54785

BOLT

U-BOLT

19шт.

2

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

38шт.

3

T55808

CLIP

- scraper bar

19шт.

4

T54789

ARM

- scraper

19шт.

5

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

BOLT - 1/2 x 1-1/2" NC carriage (Grade 5)

38шт.

6

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

38шт.

7

T54790

HALF BLADE

BLADE - scraper bearing stand

6шт.

8

T54788

HALF BLADE

BLADE - scraper

13шт.

1

T54785

BOLT

U-BOLT

25шт.

2

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

50шт.

3

T55808

CLIP

- scraper bar

25шт.

4

T54789

ARM

- scraper

25шт.

5

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

BOLT - 1/2 x 1-1/2" NC carriage (Grade 5)

50шт.

6

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

50шт.

7

T54790

HALF BLADE

BLADE - scraper bearing stand

6шт.

8

T54788

HALF BLADE

BLADE - scraper

19шт.

1

T54785

BOLT

U-BOLT

22шт.

2

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

44шт.

3

T55808

CLIP

- scraper bar

22шт.

4

T54789

ARM

- scraper

22шт.

5

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

BOLT - 1/2 x 1-1/2" NC carriage (Grade 5)

44шт.

6

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

44шт.

7

T54790

HALF BLADE

BLADE - scraper bearing stand

6шт.

8

T54788

HALF BLADE

BLADE - scraper

16шт.

Выбрано товаров: 32
