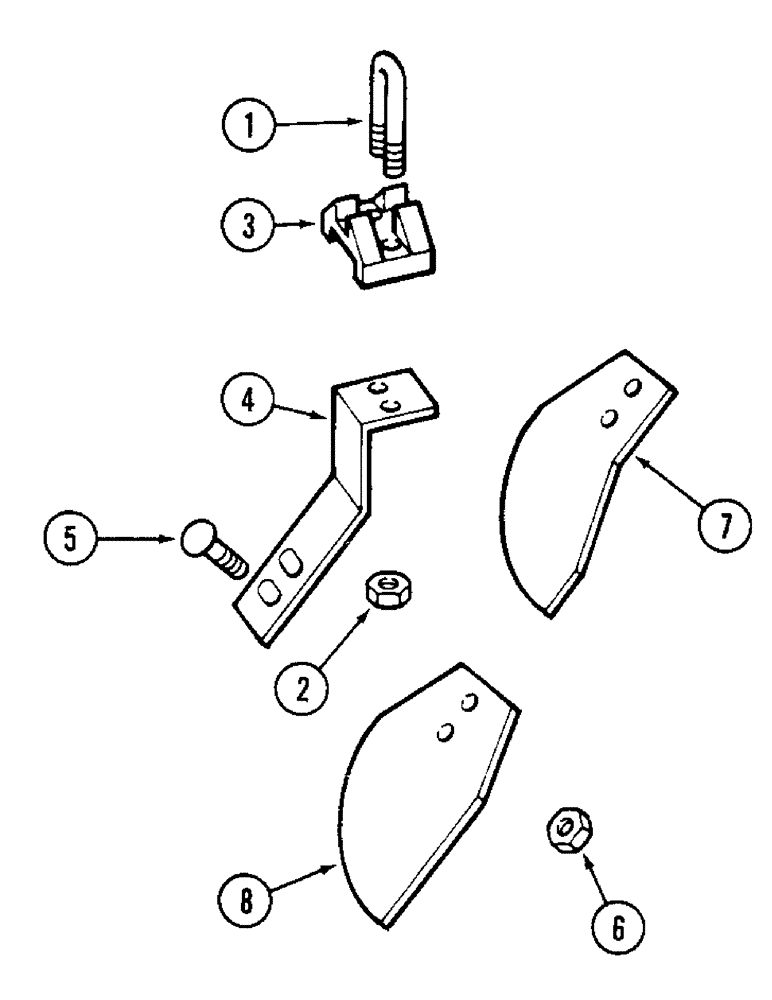

Запчасти Case IH RP (196[3]) - 10-1/2 INCH (266.7 MM) SPACING

1

T54785

BOLT

U-BOLT

14шт.

2

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

28шт.

3

T55808

CLIP

- scraper bar

14шт.

4

T54789

ARM

- scraper

14шт.

5

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

BOLT - 1/2 x 1-1/2" NC carriage (Grade 5)

28шт.

6

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

28шт.

7

T54790

HALF BLADE

BLADE - scraper bearing stand

3шт.

8

T54788

HALF BLADE

BLADE - scraper

11шт.

1

T54785

BOLT

U-BOLT

12шт.

2

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

24шт.

3

T55808

CLIP

- scraper bar

12шт.

4

T54789

ARM

- scraper

12шт.

5

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

BOLT - 1/2 x 1-1/2" NC carriage (Grade 5)

24шт.

6

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

24шт.

7

T54790

HALF BLADE

BLADE - scraper bearing stand

3шт.

8

T54788

HALF BLADE

BLADE - scraper

9шт.

1

T54785

BOLT

U-BOLT

17шт.

2

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

34шт.

3

T55808

CLIP

- scraper bar

17шт.

4

T54789

ARM

- scraper

17шт.

5

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

BOLT - 1/2 x 1-1/2" NC carriage (Grade 5)

34шт.

6

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

34шт.

7

T54790

HALF BLADE

BLADE - scraper bearing stand

4шт.

8

T54788

HALF BLADE

BLADE - scraper

13шт.

1

T54785

BOLT

U-BOLT

15шт.

2

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

30шт.

3

T55808

CLIP

- scraper bar

15шт.

4

T54789

ARM

- scraper

15шт.

5

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

BOLT - 1/2 x 1-1/2" NC carriage (Grade 5)

30шт.

6

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

30шт.

7

T54790

HALF BLADE

BLADE - scraper bearing stand

4шт.

8

T54788

HALF BLADE

BLADE - scraper

11шт.
