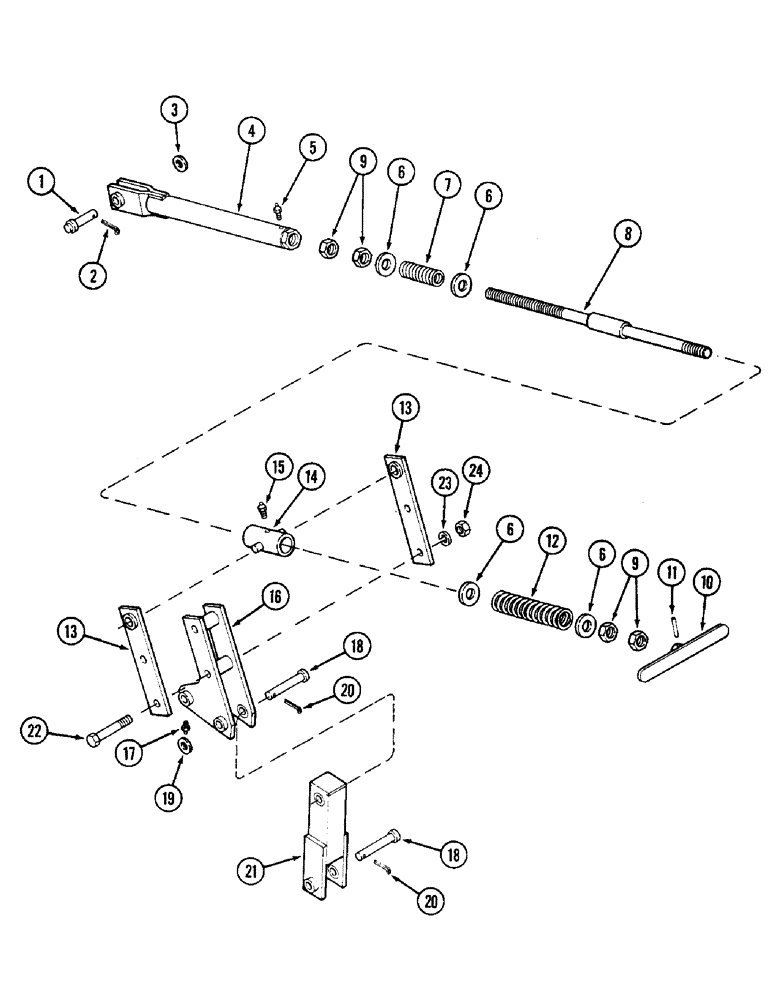

Запчасти Case IH RP (024) - LEVELING AND LIFT ASSEMBLY

1

T54750

PIN

- 1 x 4-3/8" (25.4 x 111.1 MM)

1шт.

2

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

1шт.

3

195-111

WASHER,1"

- 2-1/2 x 1-1/16" x 8 gauge

1шт.

4

T55444

TUBE - leveling 31.5" L

1шт.

5

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease 1/4"

1шт.

6

T54884

WASHER

STOP - spring

4шт.

7

T54883

SPRING

1шт.

8

T54880

SCREW - leveling

1шт.

9

129-154

NUT,Jam, 1 1/2"-6, G5

- 1-1/2" NC hex

4шт.

10

T54879

HANDLE - leveling screw

1шт.

11

138-159

LOCK PIN,5/16" x 1 3/4", Slotted

Pin, 5/16" x 1 3/4", Slotted

1шт.

12

T54882

SPRING

1шт.

13

T54941

STRAP - trunnion

2шт.

14

T54881

TRUNNION

1шт.

15

219-2

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

1шт.

16

T55399

PIVOT

1шт.

17

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease 1/4"

1шт.

18

T54952

PIN

- 1 x 6-3/8" (25.4 x 161.9 MM)

2шт.

19

195-111

WASHER,1"

- 2-1/2 x 1-1/16" x 8 gauge

2шт.

20

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

2шт.

21

T55437

CONNECTOR - leveling

1шт.

22

113-737

BOLT,Hex, 3/4" - 10 x 6", Gr 5

2шт.

23

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

24

129-108

NUT,3/4"-10, G5

2шт.
