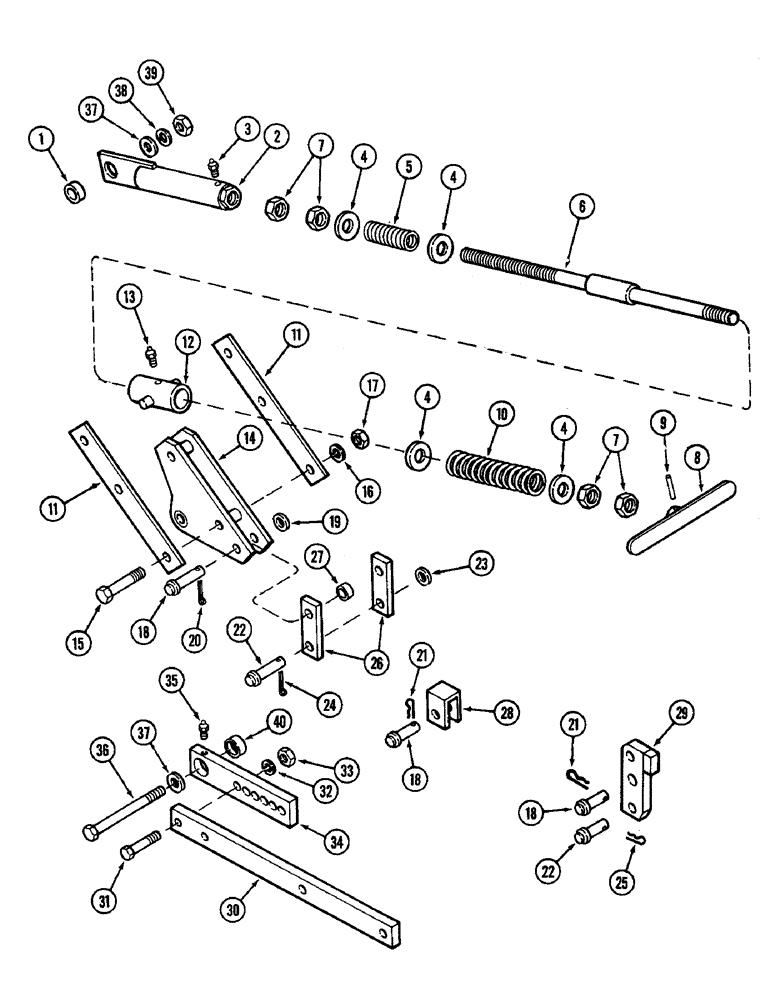

Запчасти Case IH RP (022) - LEVELING AND LIFT ASSEMBLY
№
Артикул
Название
Примечание
Количество
1
T54727
BUSHING
- leveling screw 1-7/8 x 7/8" (47.6 x 22.2 MM)
1шт.
2
T54739
CONNECTOR - leveling screw
1шт.
4
T54740
STOP - spring
4шт.
5
T54742
SPRING
1шт.
6
T54738
SCREW
- leveling
1шт.
7
129-152
JAM NUT,Jam, 1 1/4"-7, G5
- 1-1/4" NC hex
4шт.
8
T54741
HANDLE - leveling screw
1шт.
9
138-159
LOCK PIN,5/16" x 1 3/4", Slotted
Pin, 5/16" x 1 3/4", Slotted
1шт.
10
T54743
SPRING
1шт.
11
T54753
STRAP - leveling pivot
2шт.
12
T54744
TRUNNION
1шт.
14
T54752
PIVOT
1шт.
15
113-918
BOLT,Hex, 1" - 8 x 5", Gr 5
- 1 x 5" NC hex (Grade 5)
2шт.
16
192-31
LOCK WASHER,1"
WASHER, LOCK, 1"
2шт.
17
129-110
NUT,1"-8, G5
2шт.
18
T54750
PIN
- 1 x 4-3/8" (25.4 x 111.1 MM)
3шт.
19
195-111
WASHER,1"
- 2-1/2 x 1-1/16" x 8 gauge
1шт.
20
132-313
COTTER PIN,1/4" x 2"
PIN, Split (Cotter), 1/4" x 2"
1шт.
21
136-162
HAIR PIN COTTER,Int, 1/2" x .250"
COTTER
2шт.
22
T54735
PIN
- 1 x 3-1/2" (25.4 x 88.9 MM)
2шт.
23
195-111
WASHER,1"
- 2-1/2 x 1-1/16" x 8 gauge
1шт.
24
132-313
COTTER PIN,1/4" x 2"
PIN, Split (Cotter), 1/4" x 2"
1шт.
25
136-162
HAIR PIN COTTER,Int, 1/2" x .250"
COTTER
1шт.
26
T54767
CONNECTOR - leveling arm
2шт.
27
T54766
SPACER - 1-1/4 x 11/16" (31.8 x 17.5 MM)
1шт.
28
T54763
STOP - cylinder bar
1шт.
29
T54733
BAR - front cylinder attaching
1шт.
30
T55000
BAR
- cylinder
1шт.
32
192-27
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
2шт.
33
129-108
NUT,3/4"-10, G5
2шт.
34
T54758
BAR
END - cylinder bar
1шт.
36
T54857
BOLT
- 7/8 x 10" NC hex
1шт.
37
195-110
WASHER,7/8"
- 2-1/4 x 15/16" x 8 gauge
2шт.
38
192-29
LOCK WASHER,7/8"
7/8"
1шт.
39
129-109
NUT,7/8"-9, G5
1шт.
40
T54726
BUSHING
- cylinder bar end 1-7/8 x 1-3/16" (47.6 x 30.2 MM)
1шт.
Выбрано товаров: 40
