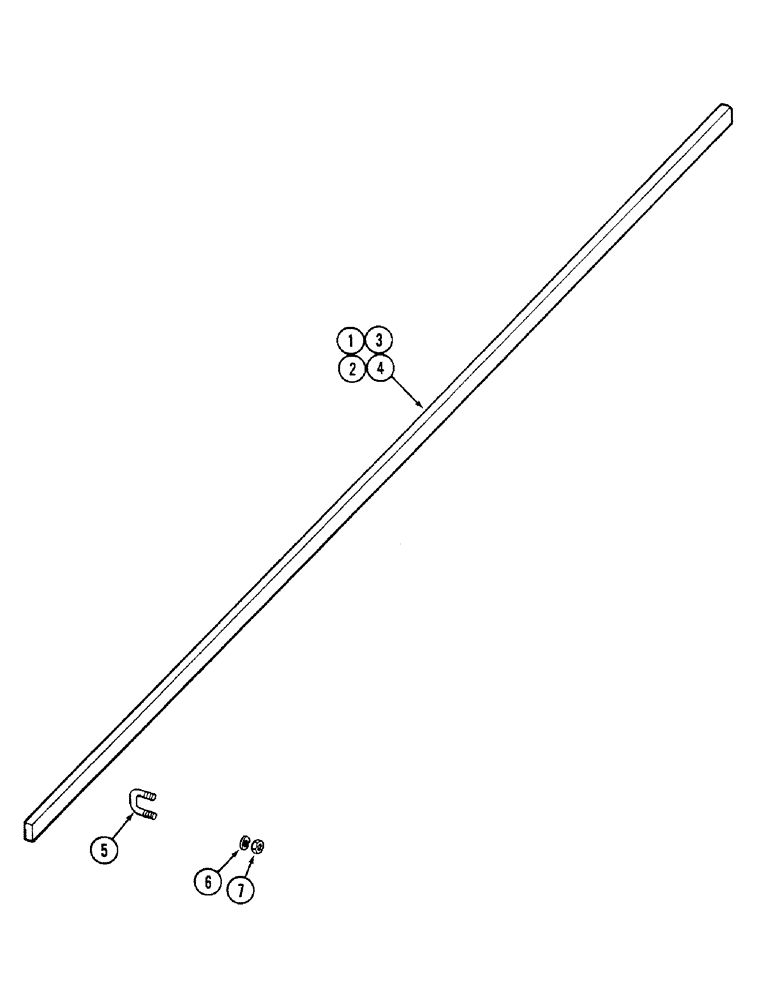

Запчасти Case IH RP (182) - SCRAPER BAR - FRONT GANG, WITH EXTRA BEARING STANDS, 10 FOOT

1

T54852

BAR - scraper 116" (2946.4 MM)

1шт.

5

T54786

BOLT

U-BOLT

5шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

10шт.

7

129-105

NUT,Hex, 1/2" - 13, Gr 5

10шт.

1

T54852

BAR - scraper 116" (2946.4 MM), 10-1/2 inch (266.7 mm) spacing

1шт.

5

T54786

BOLT

U-BOLT, 10-1/2 inch (266.7 mm) spacing

4шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , 10-1/2 inch (266.7 mm) spacing 1/2"

8шт.

7

129-105

NUT,Hex, 1/2" - 13, Gr 5

10-1/2 inch (266.7 mm) spacing 1/2"-13, G5

8шт.

2

T54792

BAR - scraper 142" (3606.8 MM), 12 foot (3.7 m) cut

1шт.

5

T54786

BOLT

U-BOLT, 12 foot (3.7 m) cut

6шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , 12 foot (3.7 m) cut 1/2"

12шт.

7

129-105

NUT,Hex, 1/2" - 13, Gr 5

12 foot (3.7 m) cut 1/2"-13, G5

12шт.

3

T54823

BAR - scraper 164" (4165.6 MM), 14 foot (4.3 m) cut

1шт.

5

T54786

BOLT

U-BOLT, 14 foot (4.3 m) cut

6шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , 14 foot (4.3 m) cut 1/2"

12шт.

7

129-105

NUT,Hex, 1/2" - 13, Gr 5

14 foot (4.3 m) cut 1/2"-13, G5

12шт.

4

T54832

BAR - scraper 184" (4673.6 MM), 16 foot (4.9 m) cut

1шт.

5

T54786

BOLT

U-BOLT, 16 foot (4.9 m) cut

8шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , 16 foot (4.9 m) cut 1/2"

16шт.

7

129-105

NUT,Hex, 1/2" - 13, Gr 5

16 foot (4.9 m) cut 1/2"-13, G5

16шт.
