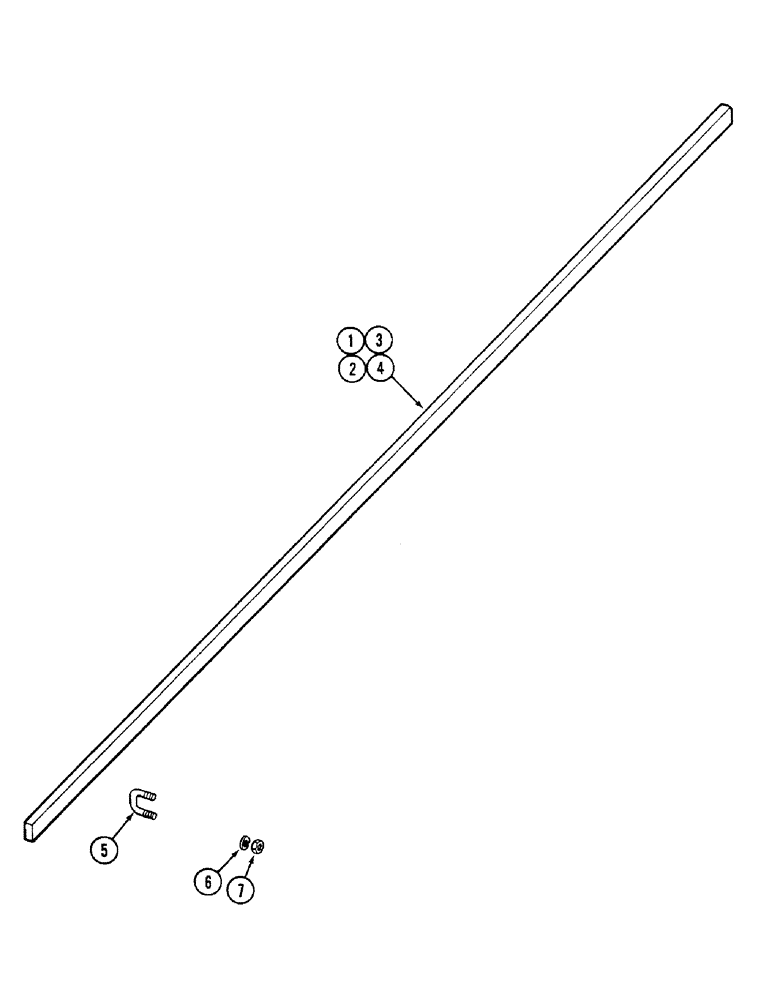

Запчасти Case IH RP (182[1]) - 10-1/2 INCH (266.7 MM) SPACING

1

T54852

BAR - scraper 116" (2946.4 MM)

1шт.

5

T54786

BOLT

U-BOLT

5шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

10шт.

7

129-105

NUT,Hex, 1/2" - 13, Gr 5

10шт.

1

T54852

BAR - scraper 116" (2946.4 MM)

1шт.

5

T54786

BOLT

U-BOLT

4шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

7

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

2

T54792

BAR - scraper 142" (3606.8 MM)

1шт.

5

T54786

BOLT

U-BOLT

6шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

7

129-105

NUT,Hex, 1/2" - 13, Gr 5

12шт.

3

T54823

BAR - scraper 164" (4165.6 MM)

1шт.

5

T54786

BOLT

U-BOLT

6шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

7

129-105

NUT,Hex, 1/2" - 13, Gr 5

12шт.

4

T54832

BAR - scraper 184" (4673.6 MM)

1шт.

5

T54786

BOLT

U-BOLT

8шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

16шт.

7

129-105

NUT,Hex, 1/2" - 13, Gr 5

16шт.
