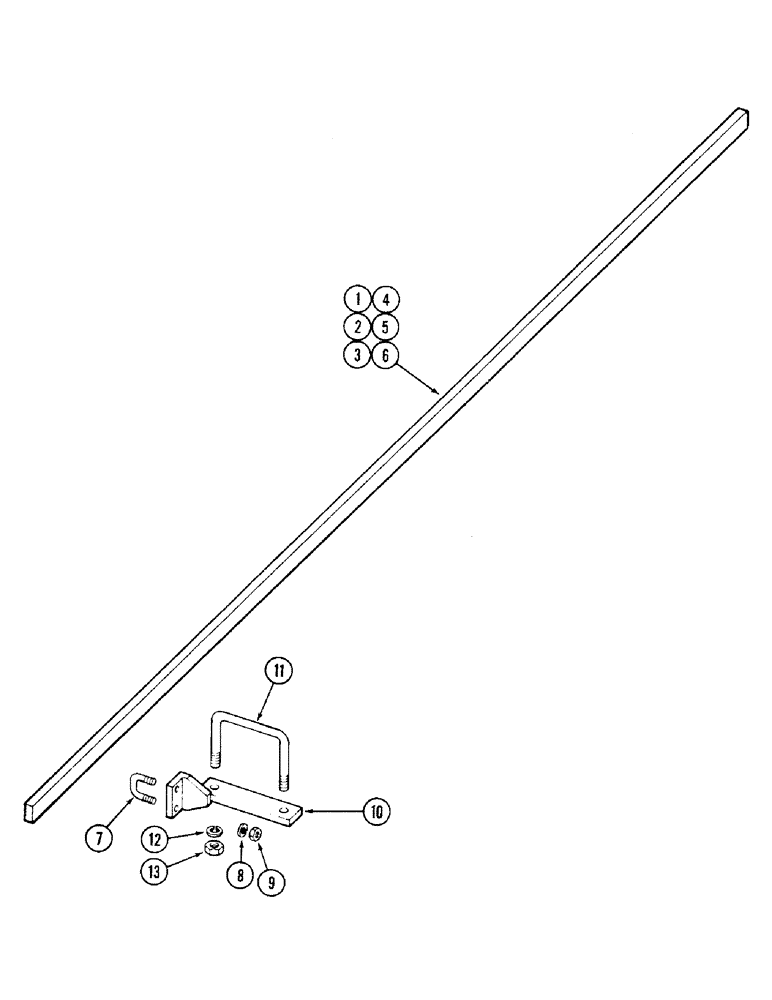

Запчасти Case IH RP (180) - SCRAPER BAR - FRONT GANG, 10 FOOT (3.1 M) CUT, 12 FOOT (3.7

1

T54852

BAR - scraper 116" (2946.4 MM)

1шт.

7

T54786

BOLT

U-BOLT

3шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

2

T54792

BAR - scraper 142" (3606.8 MM)

1шт.

7

T54786

BOLT

U-BOLT

4шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

3

T54823

BAR- scraper 164" (4165.6 MM), 14 foot (4.3 m) cut

1шт.

7

T54786

BOLT

U-BOLT, 14 foot (4.3 m), cut

6шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , 14 foot (4.3 m) cut 1/2"

12шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

14 foot (4.3 m) cut 1/2"-13, G5

12шт.

10

T54777

BRACKET - scraper bar, 14 foot (4.3 m) cut

2шт.

11

T54764

BOLT

U-BOLT, 14 foot (4.3 m) cut

2шт.

12

192-27

LOCK WASHER,3/4"

WASHER, LOCK, , 14 foot (4.3 m) cut 3/4"

4шт.

13

129-108

NUT,3/4"-10, G5

14 foot (4.3 m) cut 3/4"-10, G5

4шт.

4

T54832

BAR - scraper 184" (4673.6 MM), 16 foot (4.9 m) cut

1шт.

7

T54786

BOLT

U-BOLT, 16 foot (4.9 m) cut

6шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , 16 foot (4.9 m) cut 1/2"

12шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

16 foot (4.9 m) cut 1/2"-13, G5

12шт.

5

T54840

BAR - scraper 220" (5588.0 MM), 18 foot (5.5 m) cut

1шт.

7

T54786

BOLT

U-BOLT, 18 foot (5.5 m) cut

6шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , 18 foot (5.5 m) cut 1/2"

12шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

18 foot (5.5 m) cut 1/2"-13, G5

12шт.

6

T54848

BAR - scraper 244" (6197.6 MM), 20 foot (6.1 m) cut

1шт.

7

T54786

BOLT

U-BOLT, 20 foot (6.1 m) cut

6шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , 20 foot (6.1 m) cut 1/2"

12шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

20 foot (6.1 m) cut 1/2"-13, G5

12шт.
