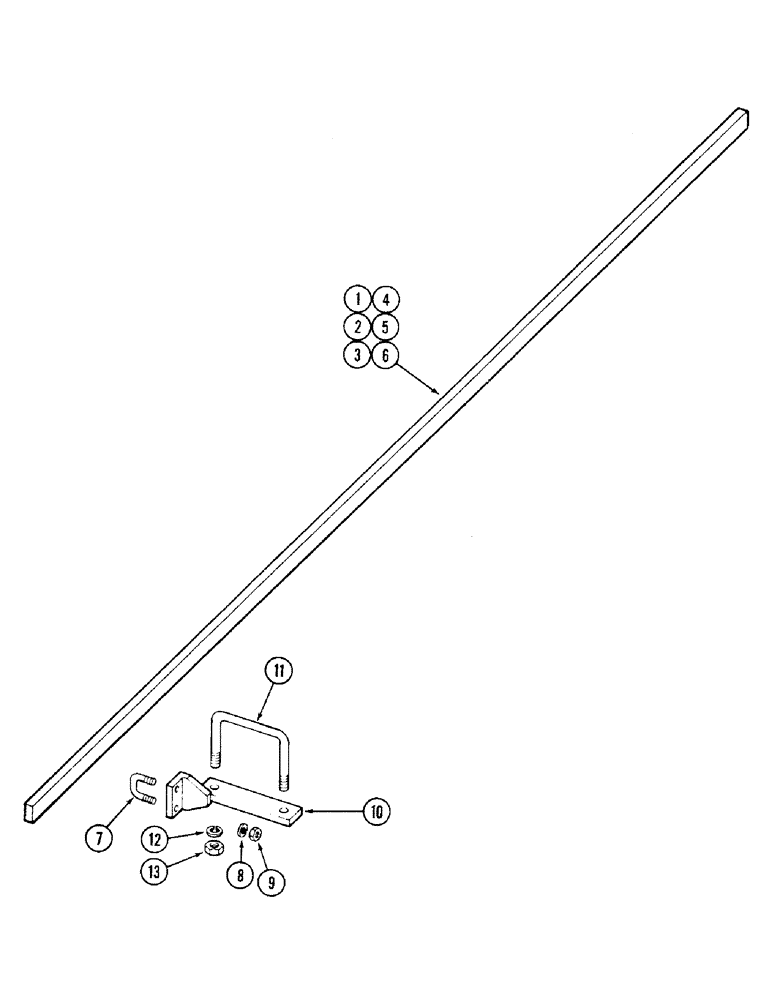

Запчасти Case IH RP (180[5]) - 20 FOOT (6.1 M) CUT

1

T54852

BAR - scraper 116" (2946.4 MM)

1шт.

7

T54786

BOLT

U-BOLT

3шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

2

T54792

BAR - scraper 142" (3606.8 MM)

1шт.

7

T54786

BOLT

U-BOLT

4шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

3

T54823

BAR- scraper 164" (4165.6 MM)

1шт.

7

T54786

BOLT

U-BOLT

6шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

12шт.

10

T54777

BRACKET - scraper bar

2шт.

11

T54764

BOLT

U-BOLT

2шт.

12

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

13

129-108

NUT,3/4"-10, G5

4шт.

4

T54832

BAR - scraper 184" (4673.6 MM)

1шт.

7

T54786

BOLT

U-BOLT

6шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

12шт.

5

T54840

BAR - scraper 220" (5588.0 MM)

1шт.

7

T54786

BOLT

U-BOLT

6шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

12шт.

6

T54848

BAR - scraper 244" (6197.6 MM)

1шт.

7

T54786

BOLT

U-BOLT

6шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

12шт.
