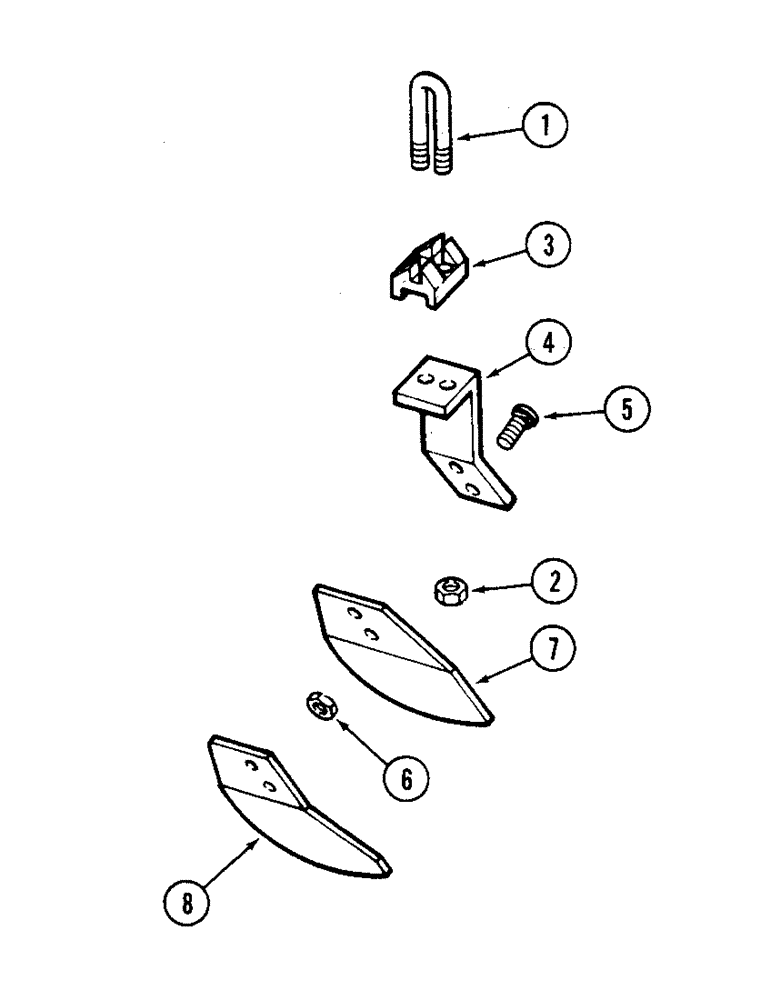

Запчасти Case IH RP (172) - SCRAPERS - FRONT GANG 14 FOOT (4.3 M) CUT, WITH EXTRA BEARING STANDS W/ 9" (228.6 MM) SPACING
№
Артикул
Название
Примечание
Количество
1
T54785
BOLT
U-BOLT
18шт.
2
131-805
LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet
NUT - lock 1/2" NC hex
36шт.
3
T55808
CLIP
- scraper bar
18шт.
4
T54789
ARM
- scraper
18шт.
5
111-524
CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5
BOLT - 1/2 x 1-1/2" NC carriage (Grade 5)
36шт.
6
131-805
LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet
NUT - lock 1/2" NC hex
36шт.
7
T54788
HALF BLADE
BLADE - scraper
12шт.
8
T54790
HALF BLADE
BLADE - scraper bearing stand
6шт.
1
T54785
BOLT
U-BOLT
16шт.
2
131-805
LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet
NUT - lock 1/2" NC hex
32шт.
3
T55808
CLIP
- scraper bar
16шт.
4
T54789
ARM
- scraper
16шт.
5
111-524
CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5
BOLT - 1/2 x 1-1/2" NC carriage (Grade 5)
32шт.
6
131-805
LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet
NUT - lock 1/2" NC hex
32шт.
7
T54788
HALF BLADE
BLADE - scraper
10шт.
8
T54790
HALF BLADE
BLADE - scraper bearing stand
6шт.
1
T54785
BOLT
U-BOLT
20шт.
2
131-805
LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet
NUT - lock 1/2" NC hex
40шт.
3
T55808
CLIP
- scraper bar
20шт.
4
T54789
ARM
- scraper
20шт.
5
111-524
CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5
BOLT - 1/2 x 1-1/2" NC carriage (Grade 5)
40шт.
6
131-805
LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet
NUT - lock 1/2" NC hex
40шт.
7
T54788
HALF BLADE
BLADE - scraper
12шт.
8
T54790
HALF BLADE
BLADE - scraper bearing stand
8шт.
1
T54785
BOLT
U-BOLT
18шт.
2
131-805
LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet
NUT - lock 1/2" NC hex
36шт.
3
T55808
CLIP
- scraper bar
18шт.
4
T54789
ARM
- scraper
18шт.
5
111-524
CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5
BOLT - 1/2 x 1-1/2" NC carriage (Grade 5)
36шт.
6
131-805
LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet
NUT - lock 1/2" NC hex
36шт.
7
T54788
HALF BLADE
BLADE - scraper
10шт.
8
T54790
HALF BLADE
BLADE - scraper bearing stand
8шт.
Выбрано товаров: 32
