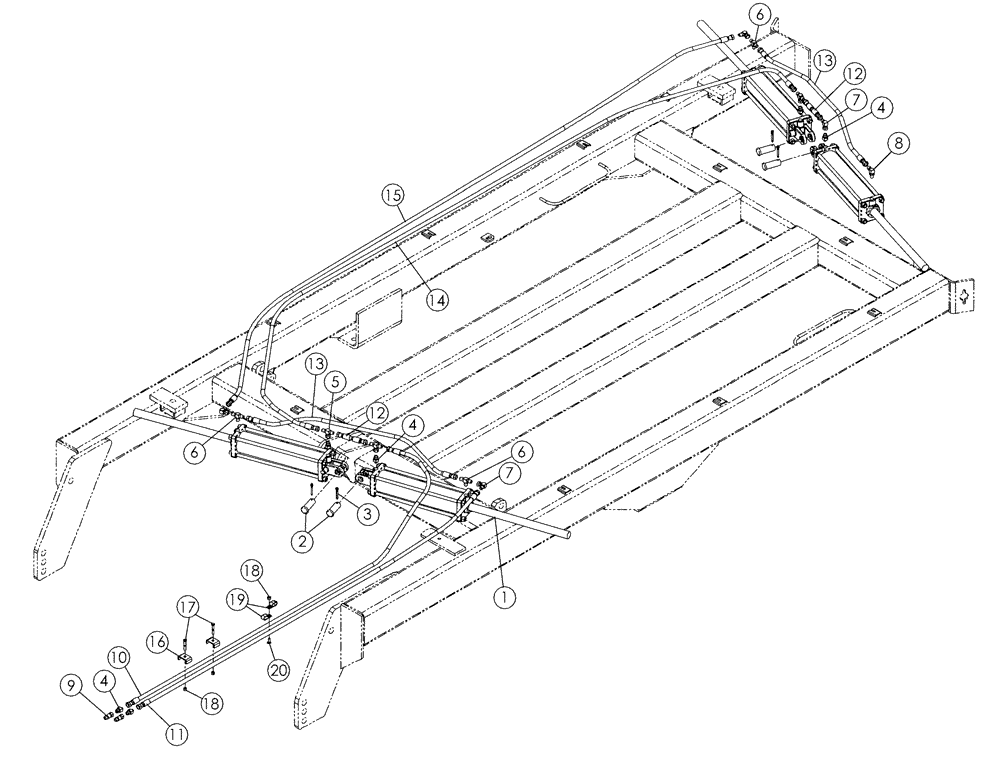

Запчасти Case IH RMX790 (35.100.03) - WING FOLD HYDRAULICS (08) - HYDRAULICS

1

87443139

CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3-1/2 x 16, 21 And 24 Machines

4шт.

1

87457706

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 406.4mm Stroke

4 x 16, 27 Machines

4шт.

2

427-20325

CLEVIS PIN,1 1/4" x 3 1/4"

4шт.

3

432-1632

COTTER PIN,1/4" x 2"

4шт.

4

1263477C3

HYD CONNECTOR

3/4 SAEM, 9/16 JICM

6шт.

5

218-836

TEE,37 Degree, 9/16"-18 x 9/16"-18, Fem Sw Br

3шт.

6

218-5192

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

3шт.

7

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

4шт.

8

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

1шт.

9

25705041

COUPLING

Hydraulic, 3/4 SAEF

2шт.

10

133933C2

HYDRAULIC HOSE

3/8 x 260

1шт.

11

1284292C1

HYDRAULIC HOSE

3/8 x 245

1шт.

12

147777C2

HYDRAULIC HOSE,6.40 mm ID x 280.00 mm

2шт.

13

812382C1

HYDRAULIC HOSE

1/4 x 50

2шт.

14

1264171C1

HYDRAULIC HOSE,6.40 mm ID x 5590.00 mm, SAE 100R1

1/4 x 215

1шт.

15

810606C1

FLEXIBLE HOSE

1/4 x 195

1шт.

16

06400125

CLAMP

Hose

2шт.

17

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

18

86992213

NUT

0.375, ZP, Stover, gd C

1шт.

19

22510700

HOSE CLAMP,15.86mm

Cushion, 5/8

1шт.

20

433-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.
