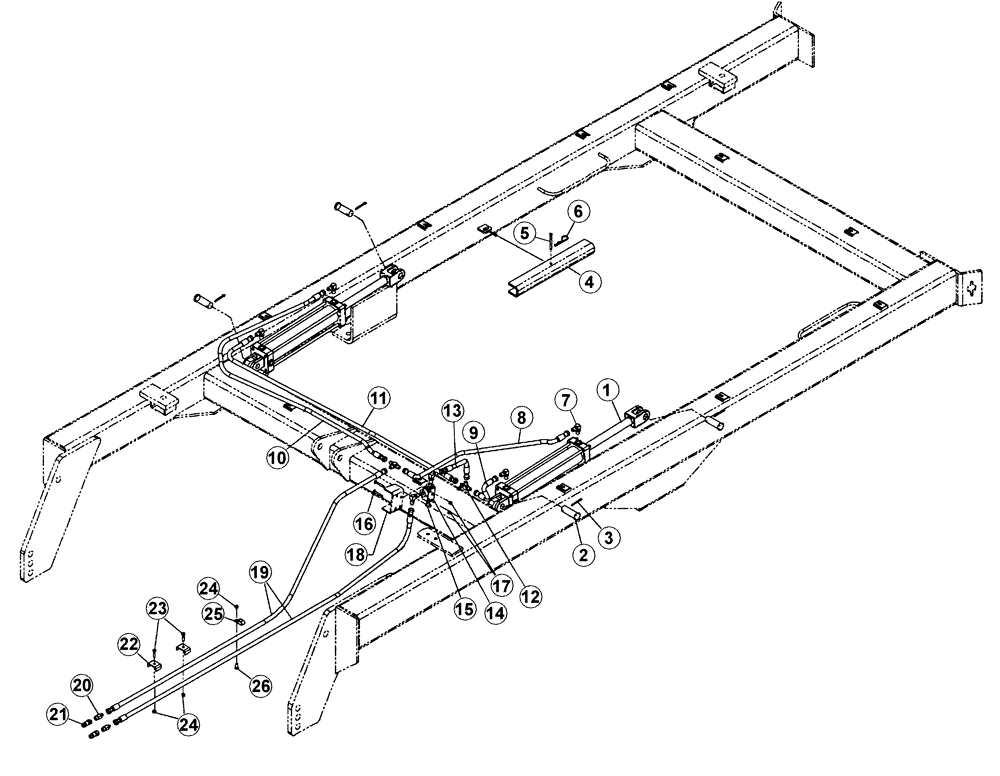

Запчасти Case IH RMX790 (35.100.02) - TRANSPORT HYDRAULICS - SINGLE POINT DEPTH CONTROL (08) - HYDRAULICS

1

87423765

CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3-1/2 x 16

2шт.

2

427-20350

CLEVIS PIN,31.75mm OD x 88.9mm L

4шт.

3

432-1632

COTTER PIN,1/4" x 2"

4шт.

4

87435824

CHANNEL

Cylinder

2шт.

5

439-1656

HEADED PIN,3/8" x 3 1/2"

2шт.

6

1978737C1

COTTER PIN,Int, 1/8" x 49mm

Hair

2шт.

7

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

6шт.

8

393704R92

HYDRAULIC HOSE

Hydraulic, 3/8 x 31

1шт.

9

1284323C1

HYDRAULIC HOSE

Hydraulic, 3/8 x 15

1шт.

10

810570C2

HYDRAULIC HOSE

Hydraulic, 3/8 x 90

1шт.

11

1254574C2

HYDRAULIC HOSE

Hydraulic, 3/8 x 60

1шт.

12

218-593

TEE,9/16"-18, 37 Degree

2шт.

13

1251872C2

HYDRAULIC HOSE

Hydraulic, 3/8 x 23

1шт.

14

396150A1

VALVE, CONTROL

Hydraulice, Single Point Depth Control

1шт.

14

396151A1

KIT

Hydraulic, Single Point Depth Control

1шт.

15

214389

PLUG,3/4" - 16 ORB

Steel

1шт.

16

433-536

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 5

2шт.

17

86992212

NUT

5/16

2шт.

18

87519377

U-BRACKET

Depth Control

1шт.

20

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

2шт.

21

25705041

COUPLING

3/4 SAEF

2шт.

22

06200125

HOSE CLAMP

Hose Clamp

2шт.

23

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

24

86992213

NUT

3/8

7шт.

25

22510700

HOSE CLAMP,15.86mm

5/8 , Cushion

5шт.

26

433-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

5шт.

27

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP Not Shown

1шт.
