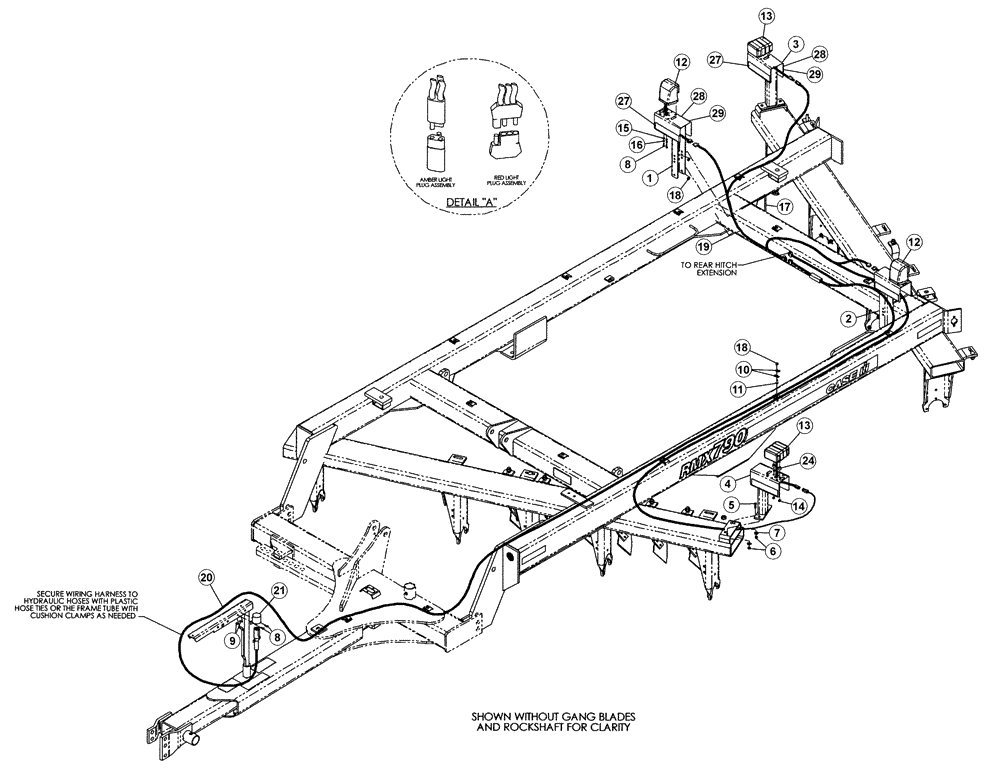

Запчасти Case IH RMX790 (55.404.01) - WARNING AND TAILLIGHT KIT NON FOLDING (04) - ELECTRICAL SYSTEMS

1

87450226

BRACKET

Light Assembly, Rh, Inc. 27 - 29

1шт.

2

87450228

BRACKET

Light Assembly, Lh, Inc. 27 - 29

1шт.

3

87455787

BRACKET

Light, RH, Rigid, Inc. 27 - 29

1шт.

4

87455788

BRACKET

Light, LH, Rigid, Inc. 27 - 29

1шт.

5

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

6

86992213

NUT

3/8, NC

4шт.

7

495-21044

WASHER,3/8"

4шт.

8

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

9

86992211

NUT

1/4, NC

2шт.

10

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

Cushion, Single

6шт.

10

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

Cushion, Single

4шт.

11

433-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

6шт.

12

87446791

LAMP

Light Assembly, Red

2шт.

13

87446792

LAMP,12V, 21W, Amber

Light Assembly, Amber

2шт.

14

86992212

NUT

5/16, NC

4шт.

15

495-81102

WASHER,.266" x 1/2" x .060"

6шт.

16

492-11025

LOCK WASHER,1/4"

6шт.

17

87426569

U-BOLT

3/8 x 6 x 8

2шт.

18

86992213

NUT

3/8, NC

10шт.

19

87446756

WIRE HARNESS

Wiring Harness, Rear

1шт.

20

87446673

WIRE HARNESS

Wiring Harness, Front

1шт.

21

27601214

HOLDER

Plug

1шт.

22

533959R1

CABLE TIE,.135" x 11"

CABLE STRAP Hose Tie, 11, Not Shown

1шт.

23

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP Hose Tie, Not Shown

1шт.

24

87449661

SPACER

Bushing, Spacer, Amber Light

4шт.

25

87459023

LENS

Amber, Not Shown

1шт.

Used On 87446792 Lamp

1шт.

26

87459024

LENS

Red, Not Shown

1шт.

Used On 87446791 Lamp

1шт.

27

311864A1

REFLECTOR

Yellow

1шт.

28

311863A1

REFLECTOR

Red

1шт.

29

311865A1

REFLECTOR

Flouresent

1шт.
