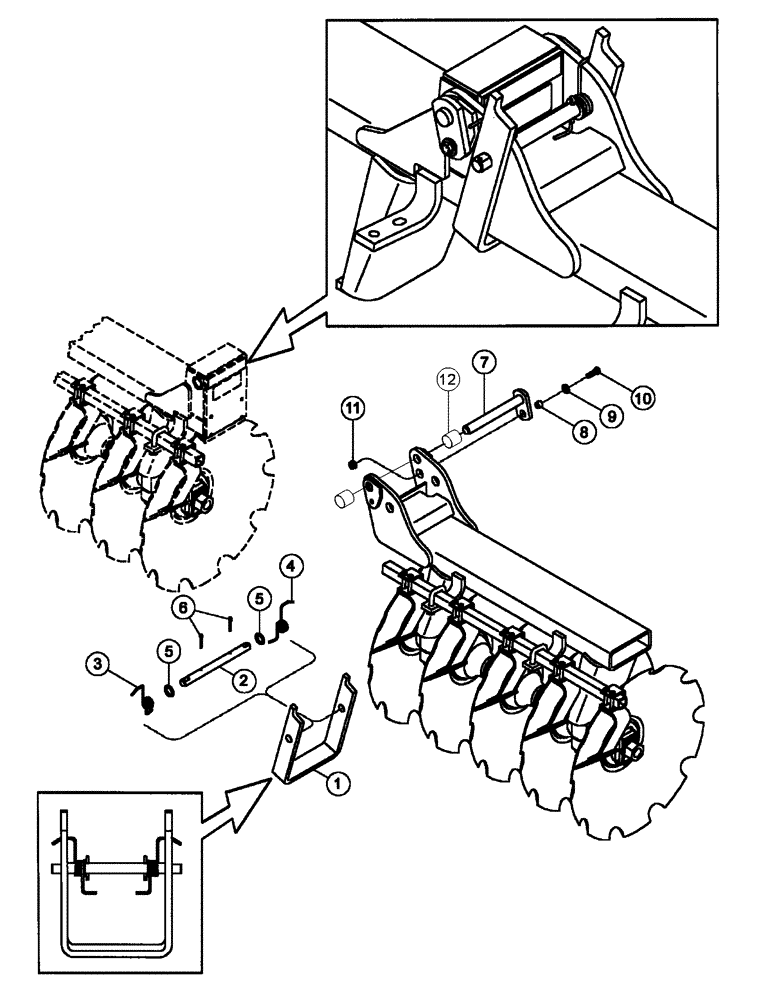

Запчасти Case IH RMX790 (75.200.23) - FRONT DISK GANG WING HINGE PARTS (09) - CHASSIS/ATTACHMENTS

1

121273C2

BRACKET

Lockout

1шт.

2

87450942

PIN

Latch, 1-1/4 Inch

1шт.

3

87356561

TAB SPRING

Hinge Latch, Lh

1шт.

4

87356563

TAB SPRING

Hinge Latch, Rh

1шт.

5

495-81203

WASHER,1 9/32" x 2" x .120"

2шт.

6

432-2032

COTTER PIN,5/16" x 2"

2шт.

7

87450905

PIVOT PIN,38.1mm OD x 358mm L

Flag, Hinge Pivot

1шт.

8

87450941

BUSHING

Pivot

1шт.

9

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

1шт.

10

426-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

1шт.

11

87301493

SERRATED NUT,Flg, USR, 5/8"-11, G8

1шт.

12

87426728

BUSHING

1.50" ID 1.75 OD

2шт.
