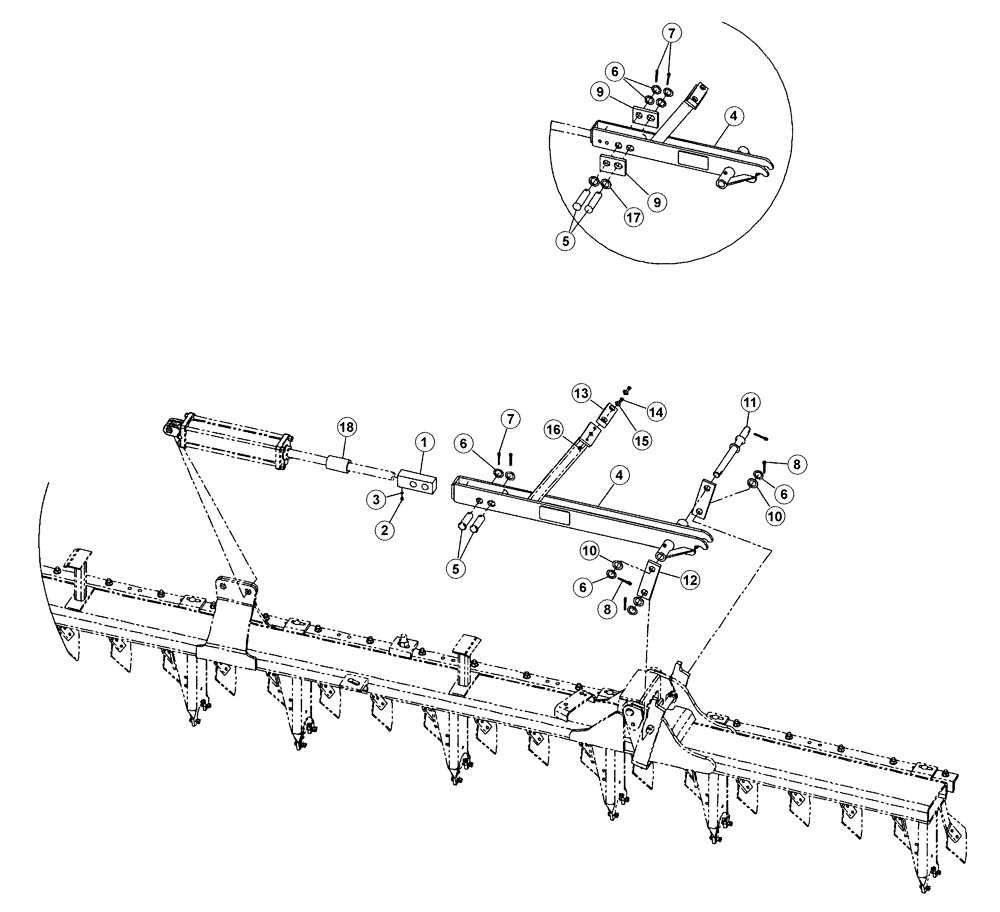

Запчасти Case IH RMX790 (75.200.22) - WING CYLINDER EXTENSION ASSEMBLY (09) - CHASSIS/ATTACHMENTS

1

87437073

BLOCK

Cylinder Clevis

4шт.

2

483-1388

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

4шт.

3

87443141

PLASTIC PLUG

Thread Nylon

4шт.

4

87440210

CYLINDER

21 Machine Only, Rear And Right Hand Front

1шт.

4

87440211

EXTENSION

21 Machine Only, Left Hand Front

1шт.

4

87441496

EXTENSION

21 Machine Only, Rear

1шт.

4

87437149

EXTENSION

24 And 27 Machines Only

1шт.

5

427-20375

CLEVIS PIN,31.75mm OD x 95.25mm L

1шт.

5

427-20500

CLEVIS PIN,31.75mm OD x 125mm L

21 Machine Only, Left Hand Front

2шт.

6

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1-1/4, 14 Ga

1шт.

7

432-1632

COTTER PIN,1/4" x 2"

8шт.

8

432-2032

COTTER PIN,5/16" x 2"

16шт.

9

87440208

PAD

Cylinder Extension Rest, 21 Machine Only, Left Hand Front

2шт.

10

495-81203

WASHER,1 9/32" x 2" x .120"

16шт.

11

87437063

PIN

Extension Link

4шт.

11

87459211

PIN

Extension Link, 21 Machine Only

4шт.

12

87437133

STRAP

Latch, Pull

8шт.

13

04670230

SPACER

Rubber Pad

4шт.

14

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

8шт.

15

495-21044

WASHER,3/8"

8шт.

16

86992213

NUT

0.375

8шт.

17

496-81009

WASHER,33.33mm ID x 50.33mm OD x 5.41mm Thk

21 Machine Only, Left Hand Front

2шт.

18

87442514

COLLAR

Wing, Fold Cylinder Stop

4шт.
