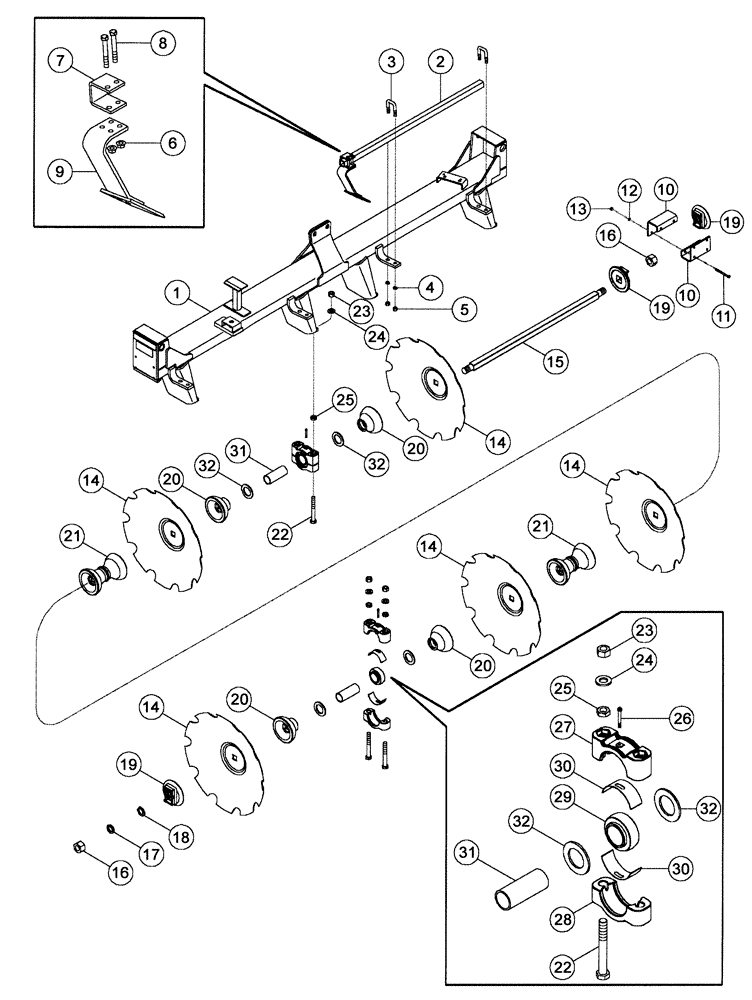

Запчасти Case IH RMX790 (75.200.19) - PLOWING FOLDING REAR MAIN DISK GANG PARTS (09) - CHASSIS/ATTACHMENTS

1

87437476

SUPPORT TUBE

Rear Gang, Folding, 21 Foot

1шт.

2

953398R1

TUBE

Scraper, 142 Inch

1шт.

3

60255C1

BOLT

U-Bolt

4шт.

4

492-11075

LOCK WASHER,3/4"

8шт.

5

425-1012

NUT,3/4"-10, G5

8шт.

6

86512371

SERRATED NUT,Flg, USR, 1/2"-13

22шт.

7

1263644C1

CLAMP

Scraper

12шт.

8

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

22шт.

9

1263645C91

HALF BLADE

Scraper Assembly, LH

12шт.

10

129567C1

SUPPORT

Gang Driver

2шт.

11

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

4шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

13

425-108

NUT,1/2" - 13, Gr 5

4шт.

14

60279C3

DISK HARROW

825 x 8 mm, Notched

12шт.

15

60244C2

BOLT

Arbor, 1-3/4 Inch, Square

2шт.

16

425-1628

NUT,1 3/4"-5, G5, Hvy

4шт.

17

60254C1

LOCK WASHER,45.54mm ID x 66.5mm OD x 9.22mm Thk

Spring, Lock

2шт.

18

60243C2

SPACER

Hex

2шт.

19

60253C2

WASHER

End

4шт.

20

60250C1

SPOOL

Bearing, 12 Inch

8шт.

21

60252C1

SPOOL

Spacing, 12 Inch

4шт.

22

60248C1

BOLT,Hex, 1" - 8 x 8", Gr 5

1 x 8 Inch, NC

8шт.

23

425-1016

NUT,1"-8, G5

8шт.

24

25550R1

WASHER,1 1/16" x 2" x .219", HDN

8шт.

25

425-1416

JAM NUT,Jam, 1"-8, G5

8шт.

26

219-7

LUBE NIPPLE,1/8" - 27 NPTF

4шт.

27

961902R2

CAP

Upper Bearing

4шт.

28

961903R2

CLAMP

Bearing Mount, Lower

4шт.

29

60249C91

BALL BEARING,70mm ID x 125mm OD x 61.93mm W

Ball

4шт.

30

60247C1

STRIP

Isolator, Rubber

8шт.

31

60251C1

TUBE,2.312" ID, 2.745" OD, 6.8" Length

Arbor Bolt Support

4шт.

32

961921R1

WASHER,70.231 mm ID x 110.3 mm OD x 6.35 mm

Trash Bearing

8шт.
