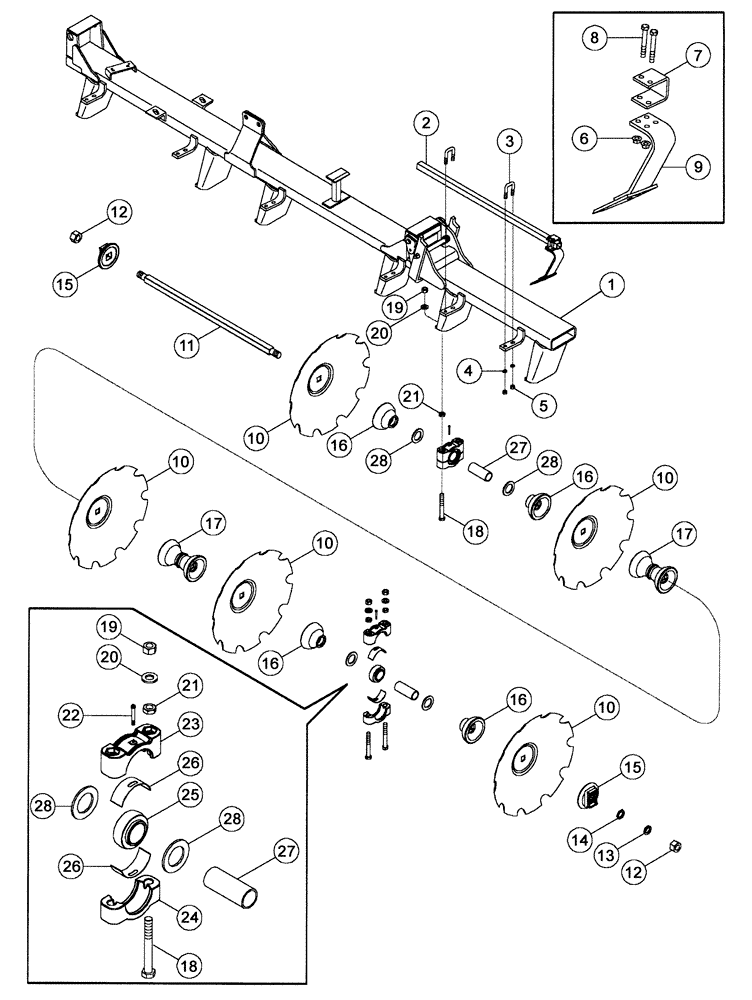

Запчасти Case IH RMX790 (75.200.18) - PLOWING FOLDING LH AND RH FRONT WING DISK GANG PARTS (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

87429784

TUBE,914, 284 mm L

Wing Gang, Front, RH, 21 Foot

1шт.

1

87429786

TUBE,914, 496.48 mm L

Wing Gang, Front, LH, 21 Foot

1шт.

2

112878C1

TUBE

SPARE PART Scraper, 56 Inch, 21 Foot

1шт.

3

60255C1

BOLT

U-Bolt

2шт.

4

492-11075

LOCK WASHER,3/4"

4шт.

5

425-1012

NUT,3/4"-10, G5

4шт.

6

86512371

SERRATED NUT,Flg, USR, 1/2"-13

10шт.

7

1263644C1

CLAMP

Scraper

5шт.

8

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

10шт.

9

1263646C91

HALF BLADE

Scraper Assembly, RH

5шт.

10

60279C3

DISK HARROW

825 x 8 mm, Notched

5шт.

11

112884C1

BAR

Arbor, 1-3/4 Inch, Square

1шт.

12

425-1628

NUT,1 3/4"-5, G5, Hvy

1-3/4 Inch, Heavy

2шт.

13

60254C1

LOCK WASHER,45.54mm ID x 66.5mm OD x 9.22mm Thk

Spring, Lock

1шт.

14

60243C2

SPACER

Hex

1шт.

15

60253C2

WASHER

End

2шт.

16

60250C1

SPOOL

Bearing, 12 Inch

4шт.

17

60252C1

SPOOL

Spacing, 12 Inch

2шт.

18

60248C1

BOLT,Hex, 1" - 8 x 8", Gr 5

1 x 8 Inch, NC

4шт.

19

425-1016

NUT,1"-8, G5

4шт.

20

25550R1

WASHER,1 1/16" x 2" x .219", HDN

1.062 x 2 x .219 Inch

4шт.

21

425-1416

JAM NUT,Jam, 1"-8, G5

1 Inch, Jam, NC

4шт.

22

219-7

LUBE NIPPLE,1/8" - 27 NPTF

Lube, 2.62 Inch Long

2шт.

23

961902R2

CAP

Upper Bearing

2шт.

24

961903R2

CLAMP

Bearing Mount, Lower

2шт.

25

60249C91

BALL BEARING,70mm ID x 125mm OD x 61.93mm W

Ball

2шт.

26

60247C1

STRIP

Isolator, Rubber

4шт.

27

60251C1

TUBE,2.312" ID, 2.745" OD, 6.8" Length

Arbor Bolt Support

2шт.

28

961921R1

WASHER,70.231 mm ID x 110.3 mm OD x 6.35 mm

Trash Bearing

4шт.

Выбрано товаров: 29
