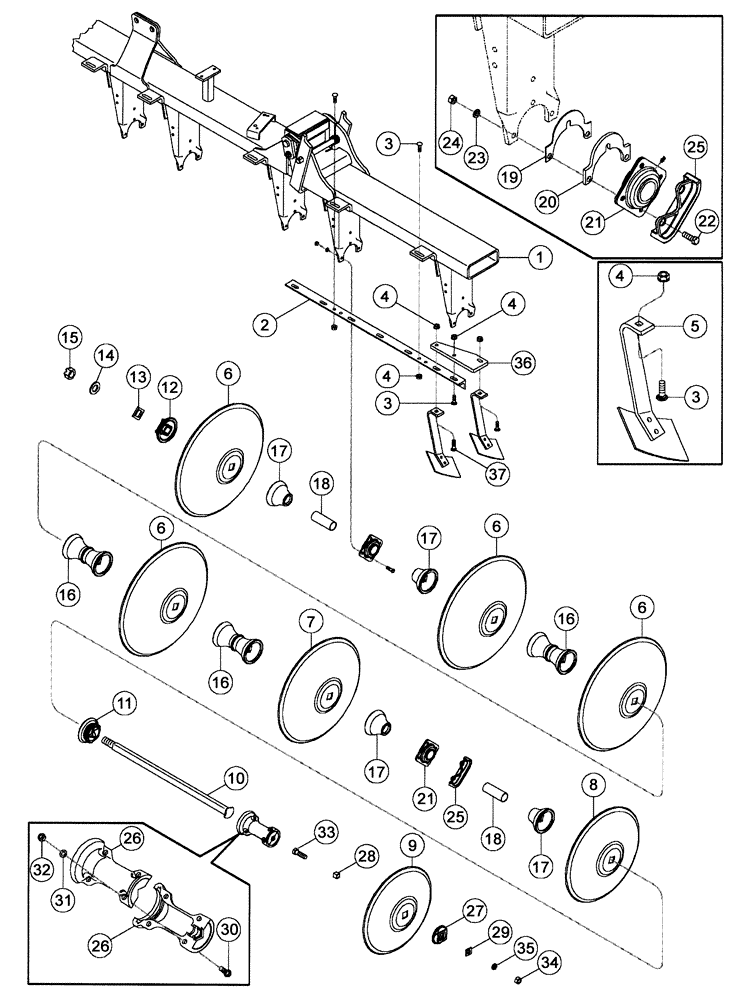

Запчасти Case IH RMX790 (75.200.16) - ALL-PURPOSE FOLDING RH REAR WING DISK GANG PARTS (09) - CHASSIS/ATTACHMENTS

1

87437513

SUPPORT TUBE

Folding, Rear Wing Gang, RH, 21 Foot

1шт.

1

87437513

SUPPORT TUBE

Folding, Rear Wing Gang, RH, 24 Foot

1шт.

1

86991163

SUPPORT TUBE

Folding, Rear Wing Gang, RH, 27 Foot

1шт.

2

87458874

ANGLE

Scraper, Rear Wing Gang, RH, 21 Foot

1шт.

2

87458874

ANGLE

Scraper, Rear Wing Gang, RH, 24 Foot

1шт.

2

87454027

ANGLE

Scraper, Rear Wing Gang, RH, 27 Foot

1шт.

3

433-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

1шт.

4

1256884C1

NUT

5/8 Inch, NC, Flange

1шт.

5

121470C92

SCRAPER

Assembly, LH

1шт.

6

27600R3

DISC

DISK, 28.5"X 6.5MM CLV/LF

1шт.

6

31225R3

DISK HARROW

723 x 8 mm, Notched

1шт.

6

27601R3

DISK HARROW

DISK, 28.5"X 6.5MM CLV/LF

1шт.

6

31224R3

DISK HARROW

DISK, 28.5"X 8.00MM

1шт.

7

58917C3

DISK HARROW

DISK, 26.5"X6.5MM CLV/LF

1шт.

7

28345R3

DISK HARROW

DISK, 26.5"X8MM SR5

1шт.

7

58934C3

DISK HARROW

DISK, 26.5"X6.5MM CLV/LF

1шт.

7

28336R3

DISK HARROW

673 x 8.0 mm, Solid

1шт.

8

549986R2

DISK HARROW

24CL5

1шт.

8

87443004

PLOW DISC

24 Inch x 5 mm, Solid

1шт.

9

87618090

DISC

DISK, 22"X5MM-NOTCHED CC

1шт.

9

87618089

DISC

DISK, 22"X5MM CTR CRIMP

1шт.

10

549978R1

SQUARE BOLT

1-1/2 Inch Square Arbor (6-Blade)

1шт.

10

549980R1

BOLT,1 1/2" - 6 x 2004mm

1-1/2 Inch Square Arbor (8-Blade)

1шт.

11

100697C1

WASHER

Furrow Filler

1шт.

12

549973R2

SQ HOLE WASHER

End

1шт.

13

488836R2

NUT

Nut

1шт.

14

492-21150

LOCK WASHER,1 1/2"

1шт.

15

425-1024

NUT,1 1/2"-6, G5

1шт.

16

549976R1

SPOOL

Spacing, 10-1/2 Inch Spacing

1шт.

17

549977R1

SPOOL,56.4 mm ID x 155 mm OD x 101.8 mm

Bearing, 10-1/2 Inch Spacing

4шт.

18

549971R1

SUPPORT TUBE

Arbor Bolt

2шт.

19

58919C1

SHIM

1шт.

20

139617C1

SHIM

1шт.

21

ST740B

BALL BEARING,55.58mm ID

Ball with Grease Zerk

2шт.

21

ST740BGV

BEARING

Value, Ball Bearing

2шт.

22

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

22

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(with Bearing Guard)

1шт.

22

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

24

425-108

NUT,1/2" - 13, Gr 5

1шт.

25

414598A1

GUARD

Bearing, Wear

1шт.

26

129797C1

HUB

Furrow Filler

1шт.

27

596769R1

SQ HOLE WASHER

Arbor Bolt

1шт.

28

100694C1

PLATE,SMALL SQUARE

1шт.

29

100695C1

SPACER

1шт.

30

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

31

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

32

425-108

NUT,1/2" - 13, Gr 5

4шт.

33

413-1448

BOLT,Hex, 7/8" - 9 x 3", Gr 5

1шт.

34

425-1014

NUT,7/8"-9, G5

1шт.

35

492-11088

LOCK WASHER,7/8"

1шт.

36

87441206

MOUNTING PARTS

Furrow Filler Scraper

1шт.

37

433-1040

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 5

1шт.
