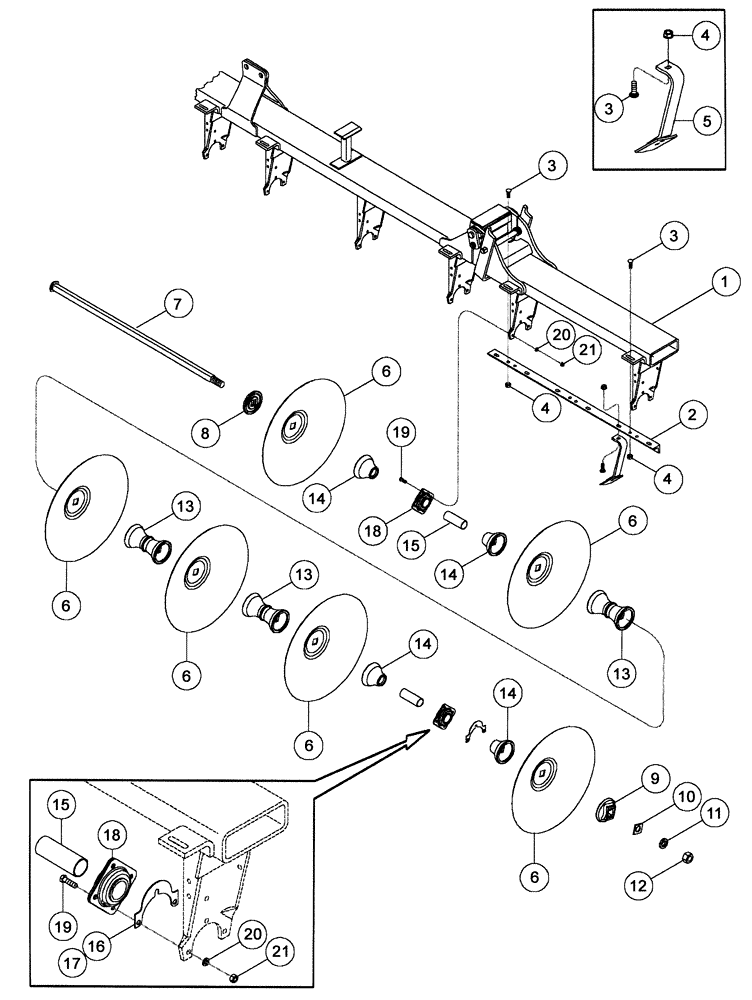

Запчасти Case IH RMX790 (75.200.13) - ALL-PURPOSE FOLDING LH AND RH FRONT WING DISK GANG PARTS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
87437514
SUPPORT TUBE
Front Wing Gang, LH, 21 Foot
1шт.
1
87437515
SUPPORT TUBE
Front Wing Gang, RH, 21 Foot
1шт.
1
87437514
SUPPORT TUBE
Front Wing Gang, LH, 24 Foot
1шт.
1
87437515
SUPPORT TUBE
Front Wing Gang, RH, 24 Foot
1шт.
1
86991160
SUPPORT TUBE
Front Wing Gang, LH, 27 Foot
1шт.
1
86991161
SUPPORT TUBE
Front Wing Gang, RH, 27 Foot
1шт.
2
87454033
ANGLE
Scraper Front Wing Gang, LH & RH, 21 Foot
1шт.
2
87454033
ANGLE
Scraper Front Wing Gang, LH & RH, 24 Foot
1шт.
2
87454032
ANGLE
Scraper Front Wing Gang, LH & RH, 27 Foot
1шт.
3
433-1032
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5
1шт.
4
1256884C1
NUT
5/8 Inch, Flange, NC
1шт.
5
121471C92
SCRAPER
Assembly, RH
1шт.
6
27600R3
DISC
DISK, 28.5"X 6.5MM CLV/LF
1шт.
6
31225R3
DISK HARROW
723 x 8 mm, Notched
1шт.
6
27601R3
DISK HARROW
DISK, 28.5"X 6.5MM CLV/LF
1шт.
6
31224R3
DISK HARROW
DISK, 28.5"X 8.00MM
1шт.
7
549978R1
SQUARE BOLT
1-1/2 Inch Square Arbor (6-Blade)
1шт.
7
549979R1
BOLT,Rnd Cor Sq Hd, 1 1/2" - 6 x 1732mm
1-1/2 Inch Square Arbor (7-Blade)
1шт.
7
549980R1
BOLT,1 1/2" - 6 x 2004mm
1-1/2 Inch Square Arbor (8-Blade)
1шт.
8
60615C1
WASHER
Head
1шт.
9
549973R2
SQ HOLE WASHER
End
1шт.
10
488836R2
NUT
Nut
1шт.
11
492-21150
LOCK WASHER,1 1/2"
1шт.
12
425-1024
NUT,1 1/2"-6, G5
1шт.
13
549976R1
SPOOL
Spacing, 10-1/2 Inch, Spacing
1шт.
14
549977R1
SPOOL,56.4 mm ID x 155 mm OD x 101.8 mm
Bearing, 10-1/2 Inch, Spacing
1шт.
15
549971R1
SUPPORT TUBE
Arbor Bolt
2шт.
16
58919C1
SHIM
1шт.
17
139617C1
SHIM
1шт.
18
ST740B
BALL BEARING,55.58mm ID
Ball with Grease Zerk
2шт.
18
ST740BGV
BEARING
Value, Ball Bearing
2шт.
19
413-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5
1шт.
19
413-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
1шт.
20
80679
LOCK WASHER,1/20.507 CST ZND
1шт.
21
425-108
NUT,1/2" - 13, Gr 5
1шт.
Выбрано товаров: 35
