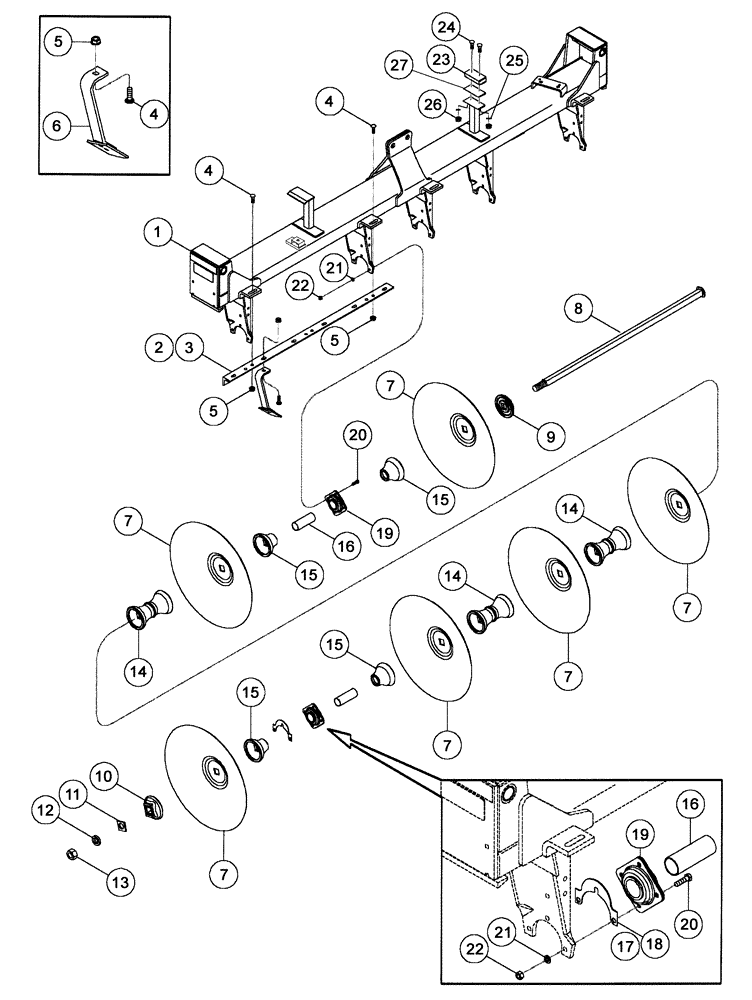

Запчасти Case IH RMX790 (75.200.09) - FINISHING FOLDING REAR MAIN DISK GANG PARTS SERIAL NUMBER JFH0034091 AND PRIOR (09) - CHASSIS/ATTACHMENTS

1

87439350

SUPPORT TUBE

Folding, Rear Main Frame, 21 Foot

1шт.

1

87439350

SUPPORT TUBE

Folding, Rear Main Frame, 24 Foot

1шт.

1

87439354

SUPPORT TUBE

Folding, Rear Main Frame, 27 Foot

1шт.

2

87451855

ANGLE

Scraper, Folding, Rear LH, 21 Foot

1шт.

2

87451855

ANGLE

Scraper, Folding, Rear LH, 24 Foot

1шт.

2

87451854

ANGLE

Scraper, Folding, Rear LH, 27 Foot

1шт.

3

87451854

ANGLE

Scraper, Folding, Rear, RH, 21 Foot

1шт.

3

87451854

ANGLE

Scraper, Folding, Rear, RH, 24 Foot

1шт.

3

87451883

ANGLE

Scraper, Folding, Rear, RH, 27 Foot

1шт.

3

87451857

ANGLE

Scraper, Folding, Rear, Middle, 27 Foot

1шт.

4

433-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

1шт.

5

1256884C1

NUT

5/8 Inch, NC, Flange

1шт.

6

121470C92

SCRAPER

Assembly, LH

1шт.

7

58934C3

DISK HARROW

DISK, 26.5"X6.5MM CLV/LF

1шт.

7

28336R3

DISK HARROW

660 x 8 mm, Solid

1шт.

8

447940A1

PLOW BOLT

1-1/2 Inch Square Arbor (8-Blade)

1шт.

8

447941A1

PLOW BOLT

1-1/2 Inch Square Arbor (9-Blade)

1шт.

8

447942A1

PLOW BOLT

1-1/2 Inch Square Arbor (10-Blade)

1шт.

9

60615C1

WASHER

Head

1шт.

10

549973R2

SQ HOLE WASHER

End

1шт.

11

87428606

NUT

Strip

1шт.

12

87412142

WASHER,40mm ID x 75mm OD x 6.5mm Thk

1-1/2 Inch Arbor Bolt

1шт.

13

425-1224

SLOTTED NUT,1 1/2"-6, G5

1шт.

438-12036

LOCK PIN,5/16" x 2 1/4", Slotted

Not Shown

1шт.

14

437773A1

SPOOL

Spacing, 9 Inch Spacing

1шт.

15

437775A1

SPOOL

Bearing, 9 Inch Spacing

1шт.

16

86983480

BUSHING,49.28mm ID x 55.17mm OD x 122mm L

Arbor Bolt

1шт.

17

58919C1

SHIM

1шт.

18

139617C1

SHIM

1шт.

19

ST740B

BALL BEARING,55.58mm ID

Ball with Grease Zerk

1шт.

19

ST740BGV

BEARING

Value, Ball Bearing

1шт.

20

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

20

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(with Bearing Guard) (Optional)

1шт.

20

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

21

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

22

425-108

NUT,1/2" - 13, Gr 5

1шт.

23

04670230

SPACER

Rubber Pad

1шт.

24

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

25

495-21044

WASHER,3/8"

2шт.

26

86992213

NUT

0.375

2шт.

27

87457698

PLATE, SPACER

PLATE,SPACER

1шт.
