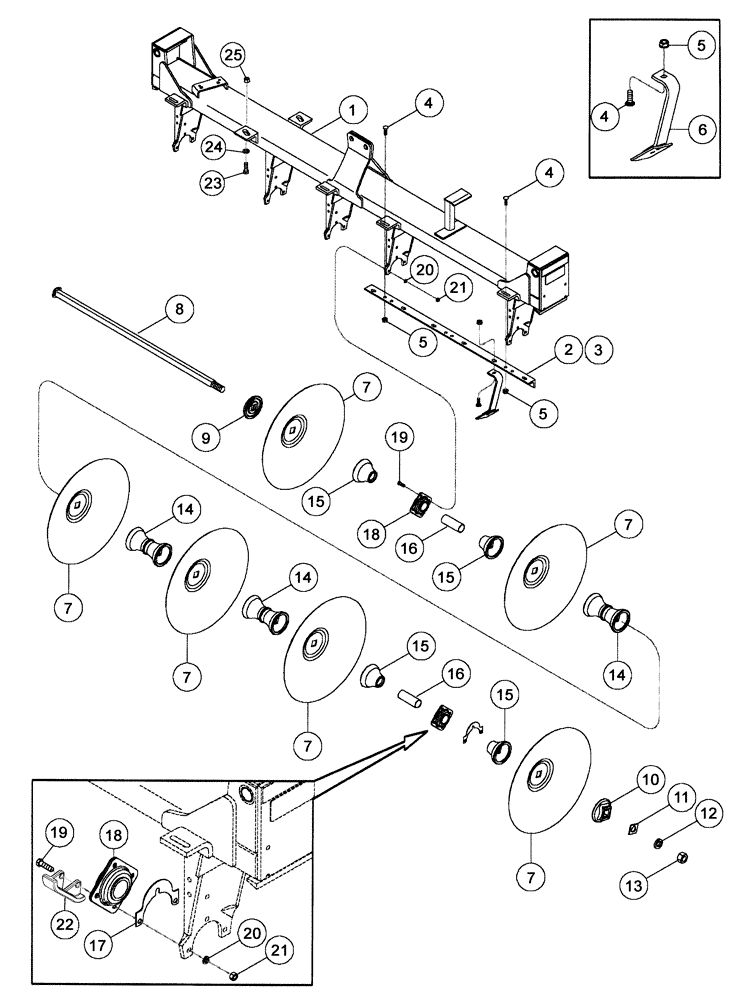

Запчасти Case IH RMX790 (75.200.07) - FINISHING FOLDING FRONT MAIN DISK GANG PARTS SERIAL NUMBER JFH0034091 AND PRIOR (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
87437520
SUPPORT TUBE
Main Frame, Folding, 21 Foot
1шт.
1
87429236
TUBE,4150 mm L
Main Frame, Folding, 24 Food
1шт.
1
87429236
TUBE,4150 mm L
Main Frame, Folding, 27 Foot
1шт.
2
87454031
ANGLE
Scraper, Main Frame, LH, Folding, 21 Foot
1шт.
2
87454032
ANGLE
Scraper, Main Frame, LH, Folding, 24 Foot
1шт.
2
87454032
ANGLE
Scraper, Main Frame, LH, Folding, 27 Foot
1шт.
3
87454033
ANGLE
Scraper, Main Frame, RH, Folding, 21 Foot
1шт.
3
87454032
ANGLE
Scraper, Main Frame, RH, Folding, 24 Foot
1шт.
3
87454032
ANGLE
Scraper, Main Frame, RH, Folding, 27 Foot
1шт.
4
433-1032
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5
1шт.
5
1256884C1
NUT
5/8 Inch, Flange, NC
1шт.
6
121471C92
SCRAPER
Assembly, RH
1шт.
7
58917C3
DISK HARROW
DISK, 26.5"X6.5MM CLV/LF
1шт.
7
28345R3
DISK HARROW
DISK, 26.5"X8MM SR5
1шт.
7
58934C3
DISK HARROW
DISK, 26.5"X6.5MM CLV/LF
1шт.
7
28336R3
DISK HARROW
660 x 8 mm, Solid
1шт.
8
549978R1
SQUARE BOLT
1-1/2 Inch Square Arbor (6-Blade)
1шт.
8
549979R1
BOLT,Rnd Cor Sq Hd, 1 1/2" - 6 x 1732mm
1-1/2 Inch Square Arbor (7-Blade)
1шт.
8
549980R1
BOLT,1 1/2" - 6 x 2004mm
1-1/2 Inch Square Arbor (8-Blade)
1шт.
9
60615C1
WASHER
Head
1шт.
10
549973R2
SQ HOLE WASHER
End
1шт.
11
488836R2
NUT
Nut
1шт.
12
492-21150
LOCK WASHER,1 1/2"
1шт.
13
425-1024
NUT,1 1/2"-6, G5
1шт.
14
549976R1
SPOOL
Spacing, 10-1/2 Inch Spacing
1шт.
15
549977R1
SPOOL,56.4 mm ID x 155 mm OD x 101.8 mm
Bearing, 10-1/2 Inch Spacing
1шт.
16
549971R1
SUPPORT TUBE
Arbor Bolt Support
1шт.
17
139617C1
SHIM
1шт.
18
ST740B
BALL BEARING,55.58mm ID
Ball with Grease Zerk
1шт.
18
ST740BGV
BEARING
Value, Ball Bearing
1шт.
19
413-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5
1шт.
19
413-832
BOLT,Hex, 1/2" - 13 x 2", Gr 5
(used with Bearing Wear Guard) (Optional)
1шт.
20
80679
LOCK WASHER,1/20.507 CST ZND
1шт.
21
425-108
NUT,1/2" - 13, Gr 5
1шт.
22
414598A1
GUARD
Bearing, Wear (Optional)
1шт.
23
413-1648
BOLT,Hex, 1" - 8 x 3", Gr 5
1шт.
24
87036175
WASHER,1.06" ID x 2" OD x 0.22" Thk
1шт.
25
86992219
LOCK NUT
1 Inch, NC
1шт.
Выбрано товаров: 38
