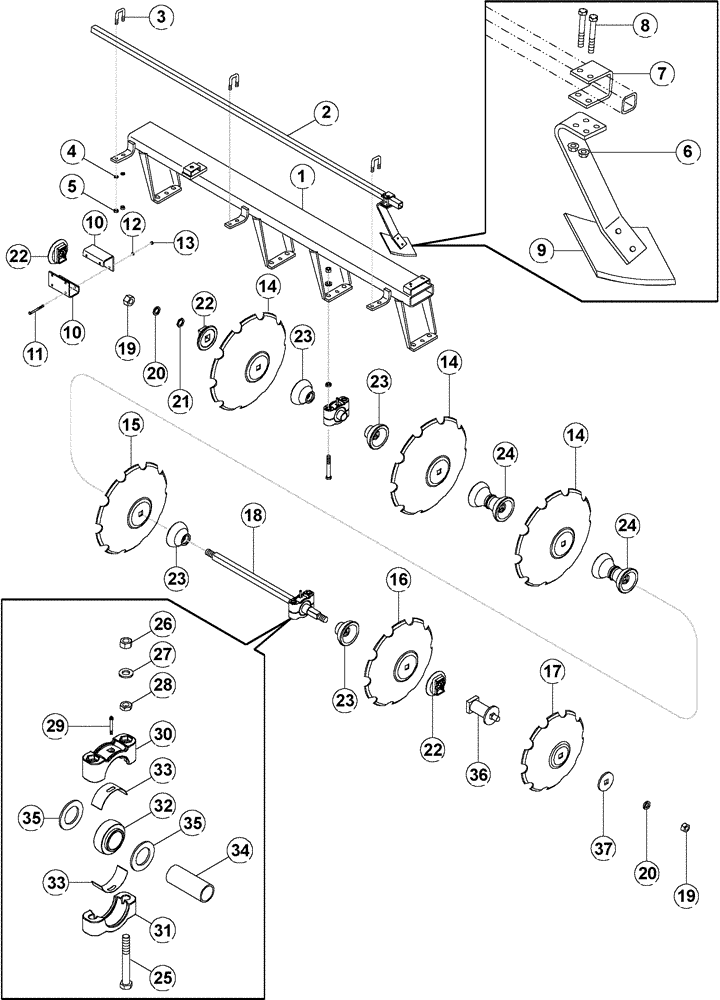

Запчасти Case IH RMX790 (75.200.06) - PLOWING NON FOLDING REAR MAIN DISK GANG PARTS (09) - CHASSIS/ATTACHMENTS

1

87439364

SUPPORT TUBE

Gang, 11 Foot, Rigid

1шт.

1

87439366

SUPPORT TUBE

Gang, 14 Foot, Rigid

1шт.

1

87439368

SUPPORT TUBE

Gang, 17 Foot, Rigid

1шт.

1

87439370

SUPPORT TUBE

Gang, 20 Foot, Rigid

1шт.

2

87454183

TUBE,3531 mm L

Scraper Mount, 127 Inches, 11 Foot

1шт.

Scraper Not Included

1шт.

2

87454184

TUBE,4400 mm L

Scraper Mount, 163 Inches, 14 Foot

1шт.

Scraper Not Included

1шт.

2

87454185

TUBE,5359 mm L

Scraper Mount, 211 Inches, 17 Foot

1шт.

Scraper Not Included

1шт.

2

87454186

TUBE,6325 mm L

Scraper Mount, 249 Inches, 20 Foot

1шт.

Scraper Not Included

1шт.

3

60255C1

BOLT

U-Bolt

1шт.

4

492-11075

LOCK WASHER,3/4"

1шт.

5

425-1012

NUT,3/4"-10, G5

1шт.

6

86512371

SERRATED NUT,Flg, USR, 1/2"-13

1шт.

7

1263644C1

CLAMP

Scraper

1шт.

8

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

1шт.

9

1263645C91

HALF BLADE

Scraper Assembly, LH

1шт.

10

129567C1

SUPPORT

Gang Driver

2шт.

11

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

4шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

13

425-108

NUT,1/2" - 13, Gr 5

4шт.

14

60279C3

DISK HARROW

825 x 8.0 mm, Notched

1шт.

15

60278C2

DISC

30 Inch x 8.0 mm, Notched

1шт.

16

60276C3

DISK HARROW

731 x 8.0 mm, Notched

1шт.

17

28345R3

DISK HARROW

DISK, 26.5"X8MM SR5

1шт.

18

112884C1

BAR

Arbor, 1-3/4 Inch Square (5-blade)

1шт.

18

60244C2

BOLT

Arbor, 1-3/4 Inch Square (6-blade)

1шт.

18

60245C1

BOLT

Arbor, 1-3/4 Inch Square (7-blade)

1шт.

18

60246C1

BOLT

Arbor, 1-3/4 Inch Square (10-blade)

1шт.

19

425-1024

NUT,1 1/2"-6, G5

2шт.

20

492-21150

LOCK WASHER,1 1/2"

2шт.

21

60243C2

SPACER

Nut, Hex

1шт.

22

60253C2

WASHER

End

2шт.

23

60250C1

SPOOL

Bearing 12 Inch

4шт.

24

60252C1

SPOOL

Spacing 12 Inch

1шт.

25

60248C1

BOLT,Hex, 1" - 8 x 8", Gr 5

1 x 8 Inch, NC

4шт.

26

425-1016

NUT,1"-8, G5

4шт.

27

25550R1

WASHER,1 1/16" x 2" x .219", HDN

4шт.

28

425-1416

JAM NUT,Jam, 1"-8, G5

4шт.

29

219-7

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

30

961902R2

CAP

Upper Bearing Mount

2шт.

31

961903R2

CLAMP

Bearing Mounting Lower

2шт.

32

60249C91

BALL BEARING,70mm ID x 125mm OD x 61.93mm W

Ball

2шт.

33

60247C1

STRIP

Isolator, Rubber

4шт.

34

60251C1

TUBE,2.312" ID, 2.745" OD, 6.8" Length

Bushing, Arbor Bolt Support

2шт.

35

961921R1

WASHER,70.231 mm ID x 110.3 mm OD x 6.35 mm

Washer, Trash Bearing

4шт.

36

60260C1

FILLER

Furrow

1шт.

37

60263C1

SQ HOLE WASHER

Furrow Filler

1шт.
