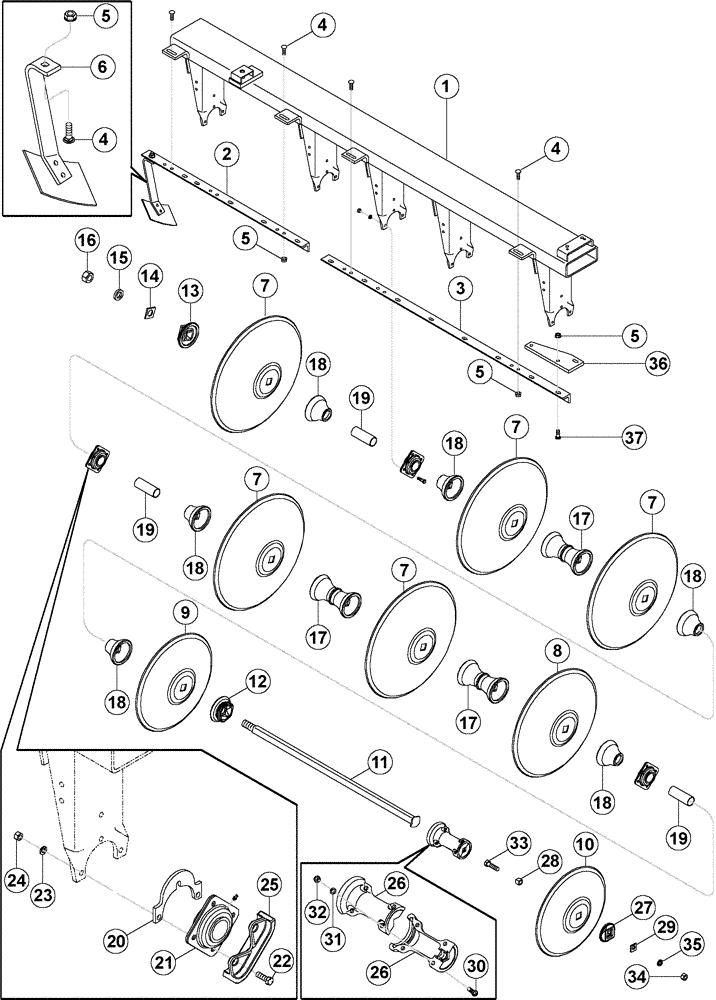

Запчасти Case IH RMX790 (75.200.04) - ALL PURPOSE NON FOLDING REAR MAIN DISK GANG PARTS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
87439356
SUPPORT TUBE
Rear Gang, 11 Foot, Rigid
1шт.
1
87439358
SUPPORT TUBE
Rear Gang, 14 Foot, Rigid
1шт.
1
87439360
SUPPORT TUBE
Rear Gang, 17 Foot, Rigid
1шт.
1
87439362
SUPPORT TUBE
Rear Gang, 20 Foot, Rigid
1шт.
2
87454033
ANGLE
Scraper, 10-1/2 Inch Spacing, 11 Foot Rigid
1шт.
2
87454032
ANGLE
Scraper, 10-1/2 Inch Spacing, 14 Foot Rigid
1шт.
2
87454033
ANGLE
Scraper, 10-1/2 Inch Spacing, 17 Foot Rigid
1шт.
2
87454029
ANGLE
Scraper, 10-1/2 Inch Spacing, 20 Foot Rigid
1шт.
3
87454028
ANGLE
Scraper, 10-1/2 Inch Spacing, 11 Foot Rigid
1шт.
3
87454027
ANGLE
Scraper, 10-1/2 Inch Spacing, 14 Foot Rigid
1шт.
3
87454028
ANGLE
Scraper, 10-1/2 Inch Spacing, 17 Foot Rigid, Middle
1шт.
3
87454031
ANGLE
Scraper, 10-1/2 Inch Spacing 17 Rh
1шт.
3
87454033
ANGLE
Scraper, 10-1/2 Inch Spacing, 20 Foot Rigid Middle
1шт.
3
87454027
ANGLE
Scraper, 10-1/2 Inch Spacing, 20 Foot Rigid, RH
1шт.
4
433-1032
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5
1шт.
5
1256884C1
NUT
Flange, 5/8 Inch, NC
1шт.
6
121470C92
SCRAPER
Assembly, LH
1шт.
7
27601R3
DISK HARROW
DISK, 28.5"X 6.5MM CLV/LF
1шт.
7
31224R3
DISK HARROW
DISK, 28.5"X 8.00MM
1шт.
7
27600R3
DISC
DISK, 28.5"X 6.5MM CLV/LF
1шт.
7
31225R3
DISK HARROW
723 x 8.0 mm, Notched
1шт.
8
58934C3
DISK HARROW
DISK, 26.5"X6.5MM CLV/LF
1шт.
8
28336R3
DISK HARROW
673 x 8.0 mm, Solid
1шт.
8
58917C3
DISK HARROW
DISK, 26.5"X6.5MM CLV/LF
1шт.
8
28345R3
DISK HARROW
DISK, 26.5"X8MM SR5
1шт.
9
87443004
PLOW DISC
24 Inch x 5 mm, Solid
1шт.
9
549986R2
DISK HARROW
24CL5
1шт.
10
87618089
DISC
DISK, 22"X5MM CTR CRIMP
1шт.
10
87618090
DISC
DISK, 22"X5MM-NOTCHED CC
1шт.
11
549978R1
SQUARE BOLT
Arbor, 1-1/2 Inch Square (6-blade)
1шт.
11
549979R1
BOLT,Rnd Cor Sq Hd, 1 1/2" - 6 x 1732mm
Arbor, 1-1/2 Inch Square (7-blade)
1шт.
11
549980R1
BOLT,1 1/2" - 6 x 2004mm
Arbor, 1-1/2 Inch Square (8-blade)
1шт.
11
549981R1
BOLT,1 1/2" - 6 x 2271mm
Arbor, 1-1/2 Inch Square (9-blade)
1шт.
11
60173C1
BOLT
Arbor, 1-1/2 Inch Square (10-blade)
1шт.
12
100697C1
WASHER
Furrow Filler, Shown
1шт.
12
60615C1
WASHER
Furrow Filler, Not Shown
1шт.
13
549973R2
SQ HOLE WASHER
End
1шт.
14
488836R2
NUT
Nut
1шт.
15
492-21150
LOCK WASHER,1 1/2"
1шт.
16
425-1024
NUT,1 1/2"-6, G5
1шт.
17
549976R1
SPOOL
Spacing, 10-1/2 Inch Spacing
1шт.
18
549977R1
SPOOL,56.4 mm ID x 155 mm OD x 101.8 mm
Bearing, 10-1/2 Inch Spacing
1шт.
19
549971R1
SUPPORT TUBE
Arbor Bolt Support
1шт.
20
58919C1
SHIM
1шт.
20
139617C1
SHIM
1шт.
21
ST740B
BALL BEARING,55.58mm ID
Ball w/grease zerk
1шт.
21
ST740BGV
BEARING
Value, Ball Bearing
1шт.
22
413-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5
1шт.
22
413-832
BOLT,Hex, 1/2" - 13 x 2", Gr 5
(with Bearing Wear Guard)
1шт.
22
413-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
1шт.
23
80679
LOCK WASHER,1/20.507 CST ZND
1шт.
24
425-108
NUT,1/2" - 13, Gr 5
1шт.
25
414598A1
GUARD
Bearing Wear
1шт.
26
129797C1
HUB
Furrow Filler
2шт.
27
596769R1
SQ HOLE WASHER
Arbor Bolt
1шт.
28
100694C1
PLATE,SMALL SQUARE
Block Driver
1шт.
29
100695C1
SPACER
1шт.
30
413-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5
4шт.
31
80679
LOCK WASHER,1/20.507 CST ZND
4шт.
32
425-108
NUT,1/2" - 13, Gr 5
4шт.
33
413-1448
BOLT,Hex, 7/8" - 9 x 3", Gr 5
1шт.
34
425-1014
NUT,7/8"-9, G5
1шт.
35
492-11088
LOCK WASHER,7/8"
1шт.
36
87441206
MOUNTING PARTS
Furrow Filler Scraper
1шт.
37
433-1040
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 5
1шт.
Выбрано товаров: 65
