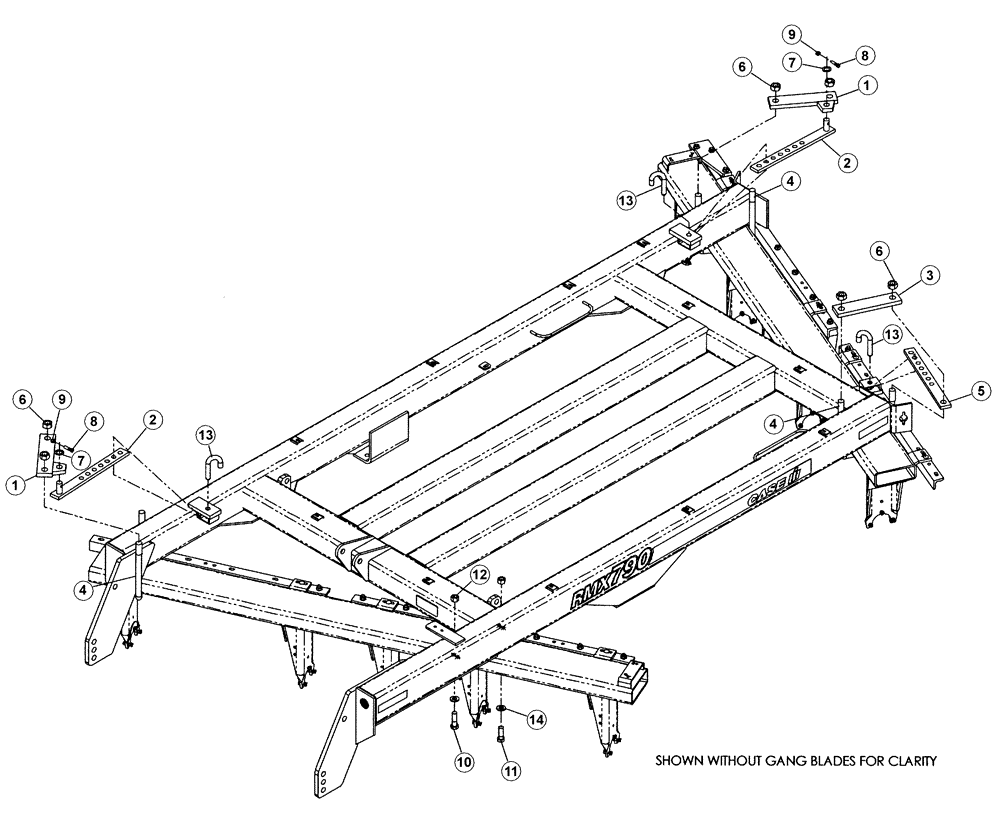

Запчасти Case IH RMX790 (75.200.01) - DISK GANG FRAME MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

121261C1

BAR

Gang, U-bolt

2шт.

2

87438513

BAR

Gang, Adjust

2шт.

3

112908C1

BAR

U-Bolt

1шт.

4

112907C1

U-BOLT

Painted

3шт.

5

139518C1

BAR

Gang Adjust

3шт.

6

425-1020

NUT,1 1/4"-7, G5

6шт.

7

495-81203

WASHER,1 9/32" x 2" x .120"

2шт.

8

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

9

86992215

LOCK NUT,1/2"-13, GC

2шт.

10

413-1656

BOLT,Hex, 1" - 8 x 3-1/2", Gr 5

1шт.

11

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

1шт.

12

86992219

LOCK NUT

1, NC

2шт.

13

60161C1

PIN,25.4mm OD

J-Pin, 1 Dia.

3шт.

14

87036175

WASHER,1.06" ID x 2" OD x 0.22" Thk

2шт.
