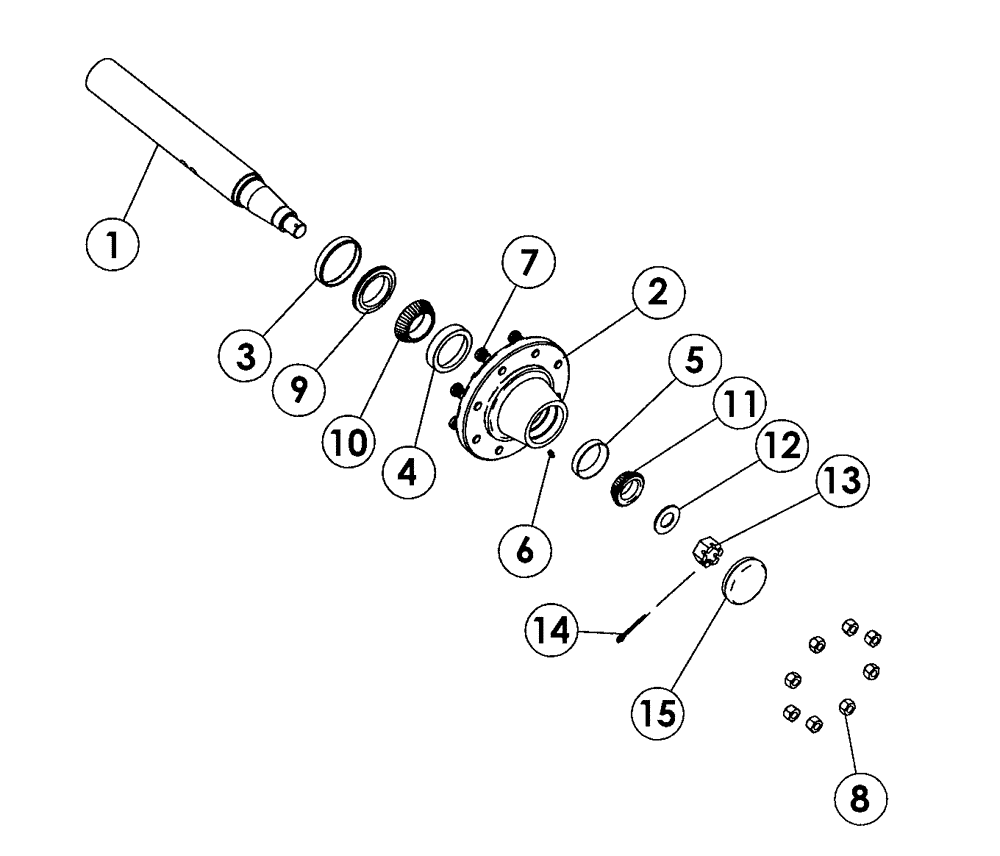

Запчасти Case IH RMX790 (44.100.02) - AXLE HUB AND SPINDLE, 8-BOLT (09) - CHASSIS/ATTACHMENTS

1

87454025

STUB AXLE/STEERING S

8 - Bolt

1шт.

2

86990965

HUB

8 - Bolt with Cups, Inc. 4 - 9

1шт.

3

169329C91

OIL SEAL,63.3mm ID x 95.81mm OD x 8mm Thk

1шт.

4

625743C1

BEARING CUP,90mm OD x 18.5mm W

Taper Roller

1шт.

5

663558R1

BEARING CUP

Taper Roller

1шт.

6

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

7

557309R1

BOLT

Hub Wheel

8шт.

8

554480R1

WHEEL NUT

Wheel

8шт.

9

169328C1

SLEEVE

Oil Seal, Wear

1шт.

10

625742C1

ROLLER BEARING,2.1654" ID x 3.5433" OD x 0.9055" W

1шт.

11

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1шт.

12

496-11119

WASHER,1 3/16" x 2 1/4" x .134" HDN

1шт.

13

425-1318

SLOTTED NUT,1 1/8"-12, G5

1шт.

14

432-1232

COTTER PIN,3/16" OD x 2" L

1шт.

15

560950R1

HUB CAP

Hub

1шт.
