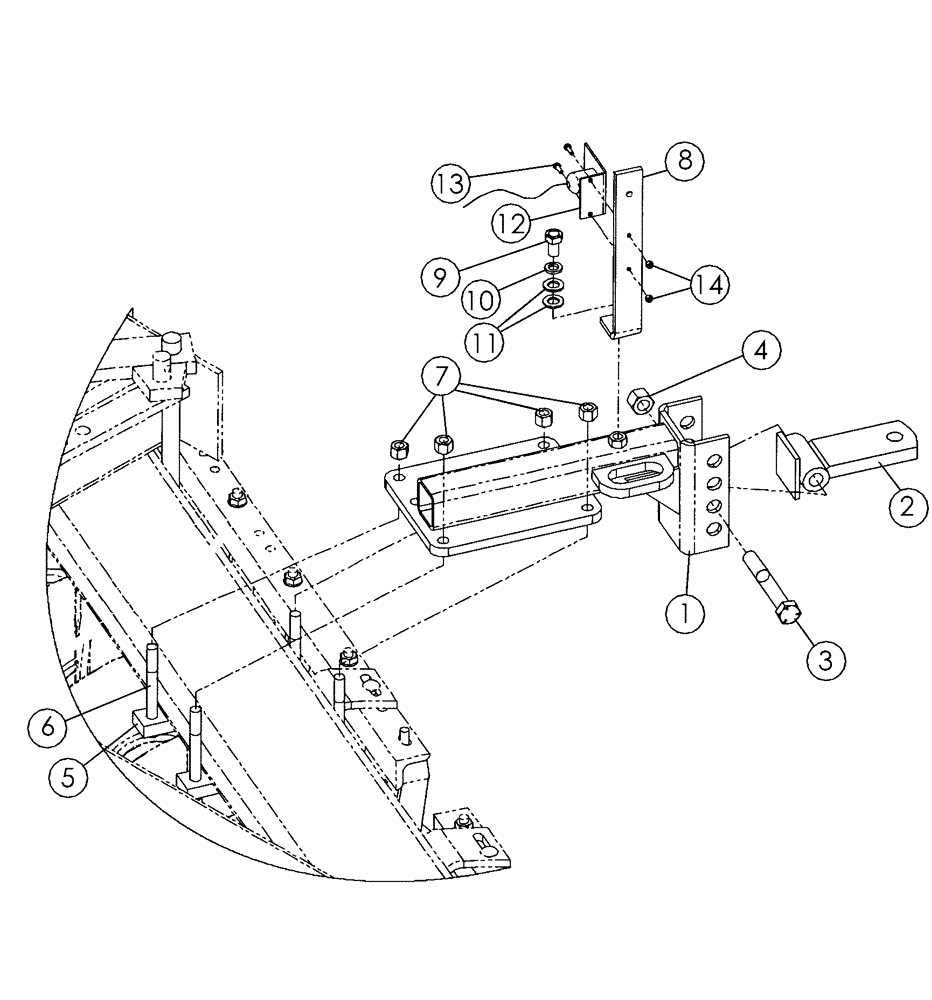

Запчасти Case IH RMX790 (39.110.01) - REAR HITCH PARTS (09) - CHASSIS/ATTACHMENTS

1

87440691

TOW BAR

Rear Hitch

1шт.

2

87440687

TOW BAR

Clevis, Rear Hitch

1шт.

3

413-16112

BOLT,Hex, 1" - 8 x 7", Gr 5

1шт.

4

86992219

LOCK NUT

1, NC

1шт.

5

87411444

STRAP

Mounting, Rear Hitch

2шт.

6

413-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 5

4шт.

7

280375

NUT,3/4"-10, GC

4шт.

8

87417380

BAR

Hose Stand

1шт.

9

413-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

1шт.

10

492-11075

LOCK WASHER,3/4"

1шт.

11

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

2шт.

12

87446767

WIRE HARNESS

Wiring, Rear Hitch

1шт.

13

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

14

86992211

NUT

1/4 , NC

2шт.

14

533959R1

CABLE TIE,.135" x 11"

CABLE STRAP Plastic Hose Tie

1шт.

14

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP Plactic Hose Tie

1шт.
