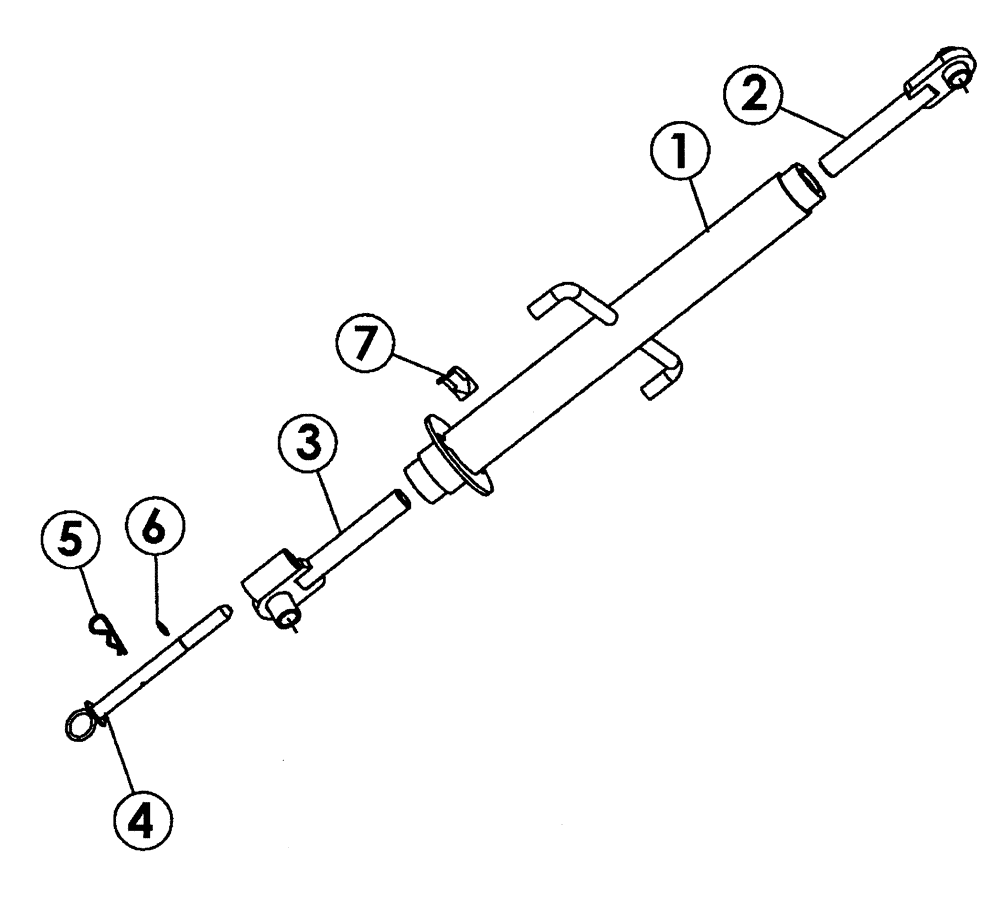

Запчасти Case IH RMX790 (39.100.04) - TURNBUCKLE ASSEMBLY (09) - CHASSIS/ATTACHMENTS

1

427289A1

TURNBUCKLE

Tube, Turnbuckle

1шт.

2

87438438

CLEVIS,1-1/2" - 6, LH Thread

Rod, Threaded, LH

1шт.

3

87438439

CLEVIS,1-1/2" - 6

Rod, Threaded, RH

1шт.

4

395028A2

HITCH PIN

Turnbuckle, Weld

1шт.

5

1978738C1

HAIR PIN COTTER

1шт.

6

103-11100

SNAP RING,#100, .925", Ext

Retaining

1шт.

7

87395867

DECAL

Depth Control, Turnbuckle

1шт.
