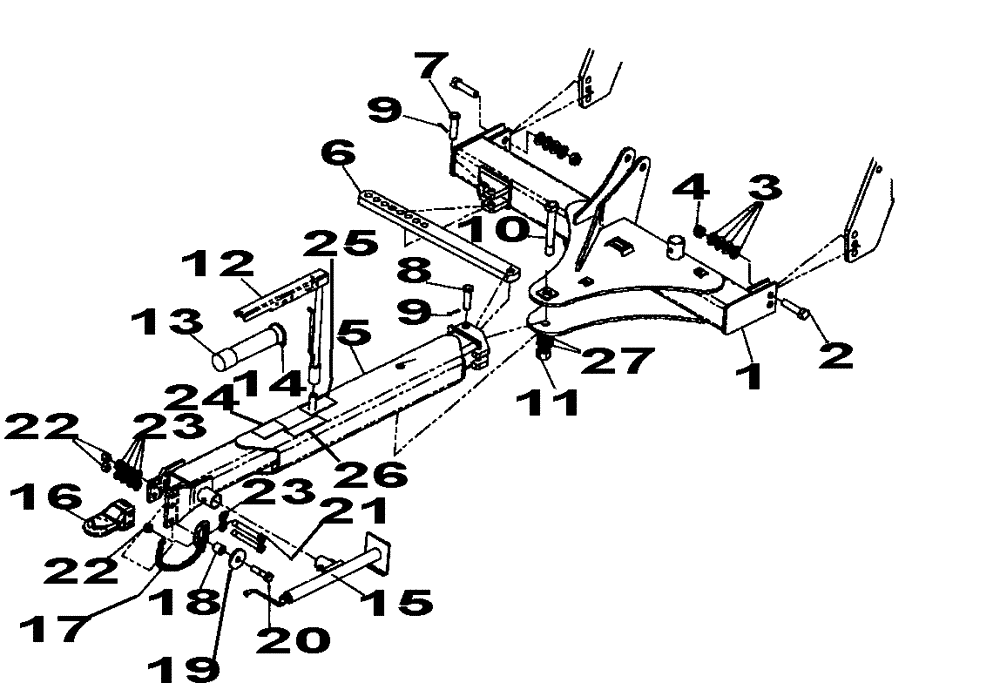

Запчасти Case IH RMX790 (39.100.02) - PULL FRAME PARTS (09) - CHASSIS/ATTACHMENTS

1

87429659

HITCH ASSY

Weldment

1шт.

2

252079A1

BOLT

1-1/4 x 5, Special

2шт.

3

496-81017

WASHER,1 3/8" x 2 1/2" x .156", HDN

8шт.

4

28748R1

LOCK NUT,1 1/4"-7, G5

Torque Hex

2шт.

5

87429661

TONGUE

Heavy, Shown

1шт.

Inc. 24 - 26

1шт.

5

87446412

TONGUE

Standard

1шт.

Inc. 24 - 26

1шт.

6

87438734

BAR

Lateral Adjust

1шт.

7

439-52080

HEADED PIN,1 1/4" x 5"

1шт.

8

439-12072

HEADED PIN,1 1/4" x 4 1/2"

1шт.

9

432-1632

COTTER PIN,1/4" x 2"

2шт.

10

87520988

SPECIAL BOLT

1-1/2 x 10-1/4, gd 8, ZP

1шт.

11

86992221

LOCK NUT

1-1/2, ZP

1шт.

12

87452523

MOUNTING PARTS

Swinging Hose

1шт.

13

30026030

TUBE

Canister

1шт.

14

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

1шт.

15

32252000

JACK ASSY.

1шт.

16

362933A1

HITCH

Tongue Type, Cat. 3

1шт.

16

362934A1

HITCH ASSY

Tongue Type, Cat. 4

1шт.

17

87393082

CHAIN

Safety, 20,200, Standard Main Frame

1шт.

17

87389757

CHAIN

Safety, 30,400, Heavy Main Frame

1шт.

18

340324A1

BUSHING

Safety Chain

1шт.

19

06400065

WASHER

Heavy

1шт.

20

413-1664

BOLT,Hex, 1" - 8 x 4", Gr 5

1шт.

21

87030492

BOLT,Hex, 1" - 8 x 7 1/4", Gr 8, Spcl

2шт.

22

86992219

LOCK NUT

1, ZP

3шт.

23

495-11106

WASHER,1", SAE

10шт.

24

18534282

WARNING DECAL

Warning

1шт.

25

18534228

DECAL

Caution

1шт.

26

443890A1

DECAL

Towing Hazard

1шт.

27

87412142

WASHER,40mm ID x 75mm OD x 6.5mm Thk

1.57 ID, 3 OD

2шт.
