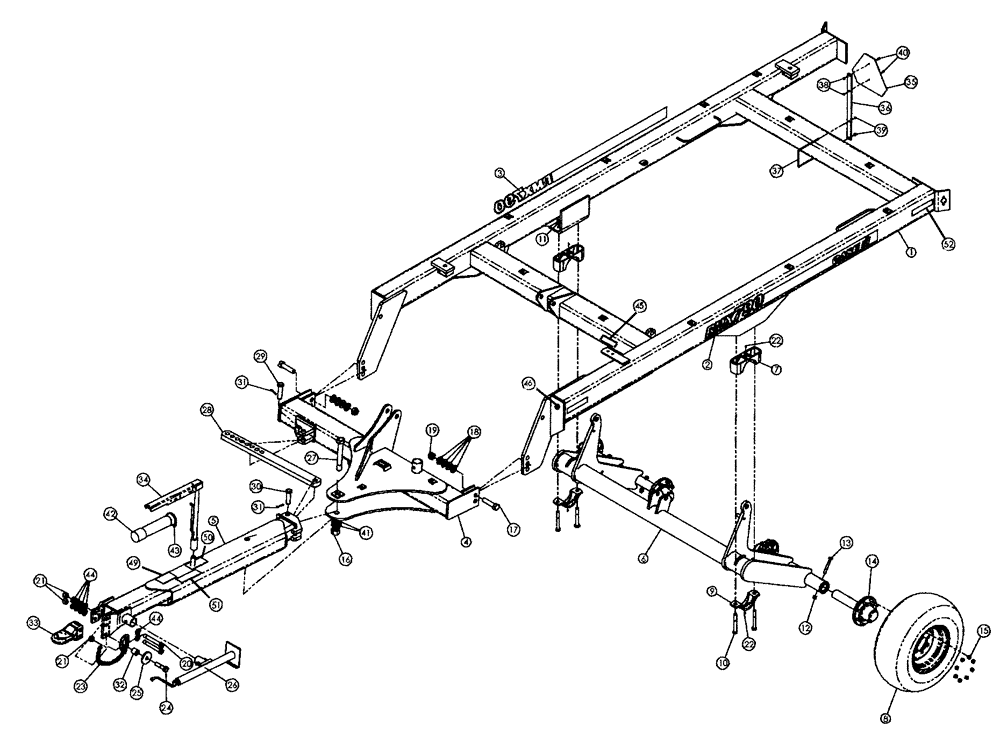

Запчасти Case IH RMX790 (39.100.01) - MAIN FRAME (09) - CHASSIS/ATTACHMENTS

1

87429657

FRAME ASSY

Main, Standard, Shown, Inc. 44 - 48

1шт.

1

87439468

FRAME ASSY

Main, Heavy, Inc. 44 - 48

1шт.

2

87441610

DECAL

RMX790 Stripe, Lh

1шт.

3

87441611

DECAL

RMX790 Stripe, Rh

1шт.

4

87429659

HITCH ASSY

1шт.

5

87446412

TONGUE

Standard, Inc. 49 - 51

1шт.

5

87429661

TONGUE

Heavy, Inc. 49 - 51, Shown

1шт.

6

87417976

ROCKSHAFT

1шт.

7

86984889

BEARING,97 mm

2шт.

8

87447196

WHEEL ASSY

12.5L x 15, 10 Ply

4шт.

8

87447197

WHEEL ASSY

12.5L x 15, 12 Ply

4шт.

8

10010286

WHEEL ASSY.

12.5L x 15 Fi

4шт.

8

87426170

WHEEL ASSY

31 x 13.5-15, 10 Ply

4шт.

9

86984888

CAP

Wheel

2шт.

10

413-14104

BOLT,Hex, 7/8" - 9 x 6-1/2", Gr 5

4шт.

11

87681198

NUT,Hex, 7/8"-9, 0.45 high

4шт.

12

231-42410

LOCK NUT,5/8"-11, GB

4шт.

13

88729

BOLT,Hex, 5/8" - 11 x 5", Gr 5

4шт.

14

NSS

NOT SOLD SEPARAT

8 Bolt, Hub And Spindle, 87454026

4шт.

15

554480R1

WHEEL NUT

Wheel, 5/8

32шт.

16

86992221

LOCK NUT

1.5, ZP, Stover, gd C

1шт.

17

252079A1

BOLT

HHCS, 1-1/4 x 5 Lg, Special

2шт.

18

496-81017

WASHER,1 3/8" x 2 1/2" x .156", HDN

8шт.

19

28748R1

LOCK NUT,1 1/4"-7, G5

2шт.

20

87030492

BOLT,Hex, 1" - 8 x 7 1/4", Gr 8, Spcl

2шт.

21

86992219

LOCK NUT

1, ZP, Stover, gd C

3шт.

22

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

23

87393082

CHAIN

20,200, Safety

1шт.

23

87389757

CHAIN

30,400, Safety

1шт.

24

413-1664

BOLT,Hex, 1" - 8 x 4", Gr 5

1шт.

25

06400065

WASHER

Heavy

1шт.

26

32252000

JACK ASSY.

1шт.

27

87520988

SPECIAL BOLT

1.5 x 10-1/4, ZP, gd 8

1шт.

28

87438734

BAR

Lateral Adjust

1шт.

29

439-52080

HEADED PIN,1 1/4" x 5"

1шт.

30

439-12072

HEADED PIN,1 1/4" x 4 1/2"

1шт.

31

432-1632

COTTER PIN,1/4" x 2"

2шт.

32

340324A1

BUSHING

Safety Chain

1шт.

33

362933A1

HITCH

Tongue, Cat. 3

1шт.

33

362934A1

HITCH ASSY

Tongue, Cat 4

1шт.

34

87452523

MOUNTING PARTS

Swinging Hose Boom

1шт.

35

311860A1

EMBLEM

SMV, ASAE, W/Steel Plate

1шт.

36

87453378

BRACKET

Bracket, SMV

1шт.

37

87426569

U-BOLT

3/8 x 6 x 8

1шт.

38

86992211

NUT

0.25, ZP, Stover, gd C

2шт.

39

86992213

NUT

0.375, ZP, Stover, gd C

2шт.

40

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

41

87412142

WASHER,40mm ID x 75mm OD x 6.5mm Thk

1.57 ID, 3 OD

2шт.

42

30026030

TUBE

Manual

1шт.

43

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

1шт.

44

495-11106

WASHER,1", SAE

10шт.

45

18534277

DECAL

Warning, Spring Compression

1шт.

46

147782C1

DECAL

Earth Metal

1шт.

48

87653276

DECAL

Case IH, Not Shown

1шт.

Used on 2006 Models

1шт.

48

87595770

DECAL

Case IH, Not Shown

1шт.

Used On 2007 Models And After

1шт.

48

87594280

DECAL

Case IH, Not Shown

1шт.

Used On 2008 And After Units

1шт.

49

18534282

WARNING DECAL

Warning

1шт.

50

18534228

DECAL

Caution

1шт.

51

443890A1

DECAL

Towing

1шт.

52

311864A1

REFLECTOR

Yellow

4шт.
