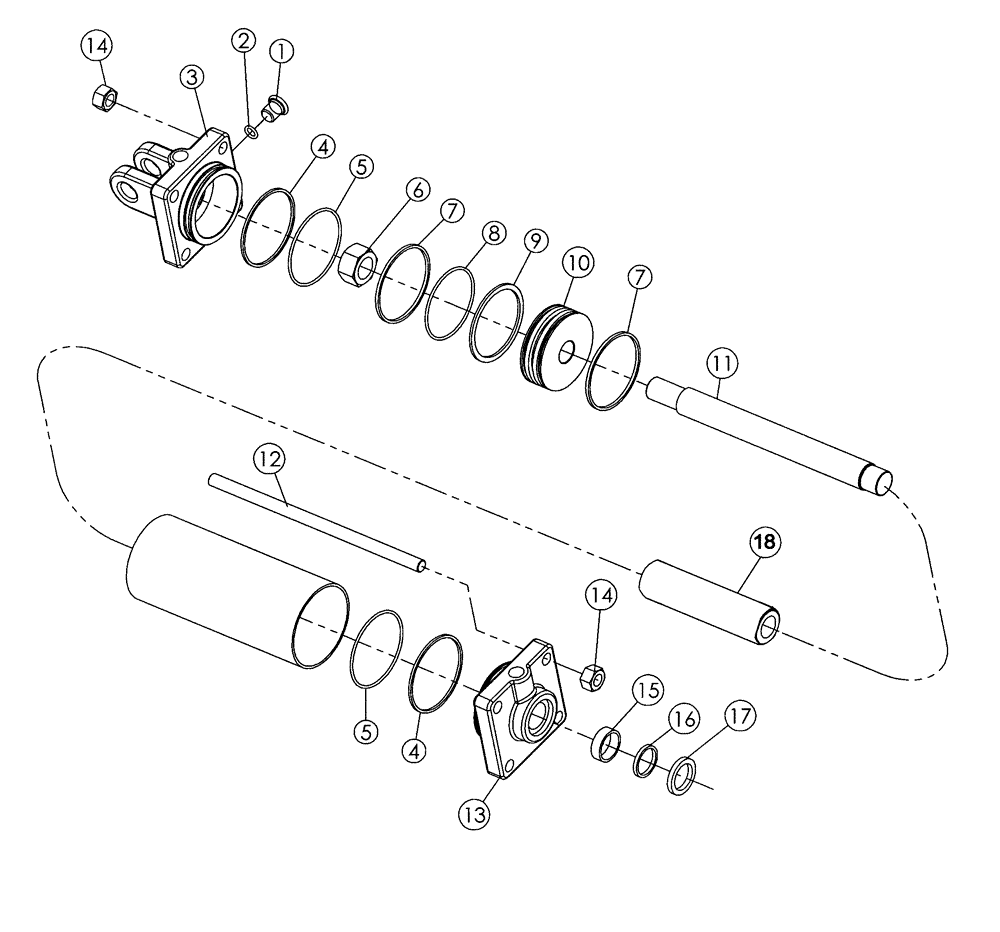

Запчасти Case IH RMX790 (35.100.09) - LEVELING CYLINDER 4 X 4 (08) - HYDRAULICS

87341190

HYDRAULIC CYLINDER,Double Acting, 44.45mm Rod, 101.6mm Stroke

4 Inch Leveling

1шт.

1

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

87409439

HEAD

Clevis Base End

1шт.

6

232-46318

LOCK NUT,1 1/8"-12, GC

1шт.

10

87454887

PISTON

Piston, Cylinder

1шт.

11

87343249

PISTON ROD

Rod, Piston

1шт.

12

87409492

THREADED TIE-ROD

Rod,Tie

4шт.

13

87409410

HEAD

Cap, Rod

1шт.

14

25-1110

NUT,5/8"-18, G5

4шт.

18

87344016

TUBE,1.81" ID x 2.50" OD x 12.17" L

Tube

1шт.

9791V2

SEAL KIT

Inc. 4-5, 7-9, & 15-17

1шт.
