(35.100.07) - WING FOLD 3-1/2 X 16, 21 AND 24 MACHINES

Запчасти Case IH RMX790 (35.100.07) - WING FOLD 3-1/2 X 16, 21 AND 24 MACHINES (08) - HYDRAULICS

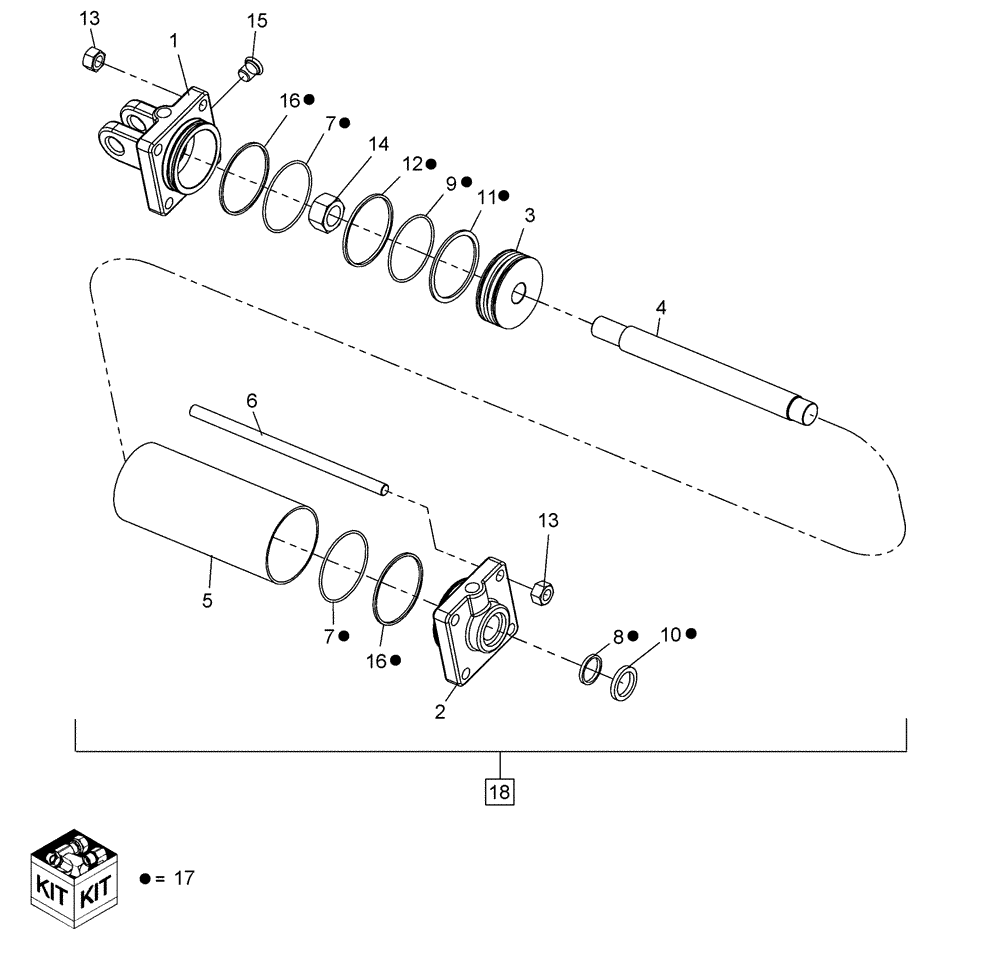

Схема запчастей Case IH RMX790 - (35.100.07) - WING FOLD 3-1/2 X 16, 21 AND 24 MACHINES (08) - HYDRAULICS
13
17
13
10
17
15
17
17
7
18
8
16
5
14
6
17
7
11
17
12
1
17
2
3
4
17
16
17
17
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87409446

HEAD

Clevis, Base End

1шт.

2

87409417

HEAD

Cap

1шт.

3

87409481

PISTON

Cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

Rod, Incl In 18

1шт.

5

NSS

NOT SOLD SEPARAT

Tube, Incl In 18

1шт.

6

87409492

THREADED TIE-ROD

Tie Rod

4шт.

7

NSS

NOT SOLD SEPARAT

Incl In 17

2шт.

8

NSS

NOT SOLD SEPARAT

Incl In 17

1шт.

9

NSS

NOT SOLD SEPARAT

Incl In 17

1шт.

10

NSS

NOT SOLD SEPARAT

Incl In 17

1шт.

11

NSS

NOT SOLD SEPARAT

Incl In 17

1шт.

12

NSS

NOT SOLD SEPARAT

Incl In 17

1шт.

13

25-1110

NUT,5/8"-18, G5

8шт.

14

232-46316

NUT,1"-14, GC

1шт.

15

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

1шт.

16

NSS

NOT SOLD SEPARAT

Incl In 17

2шт.

17

87409039

SEAL KIT

Includes 7 - 12, 16

1шт.

18

87443139

CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3-1/2 x 16, Incl 1 - 16

1шт.
