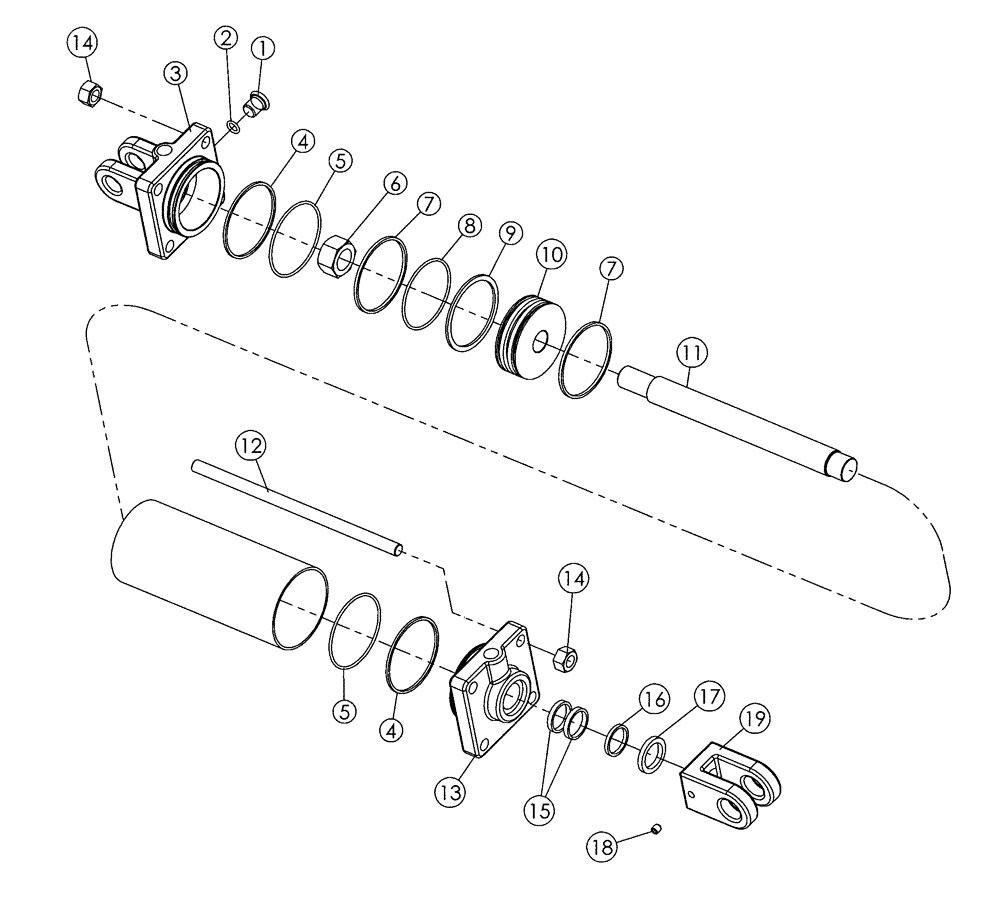

Запчасти Case IH RMX790 (35.100.06) - TRANSPORT CYLINDER 3-1/2 X 16 (08) - HYDRAULICS

87423765

CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3-1/2 x 16

1шт.

1

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

87409446

HEAD

Clevis, Base End

1шт.

6

87021832

LOCK NUT,3/4"-16, GC

1шт.

10

87409481

PISTON

Cylinder

1шт.

11

87454884

PISTON ROD

Piston

1шт.

12

87409492

THREADED TIE-ROD

Rod Tie

4шт.

13

87409417

HEAD

Cap, Rod End

1шт.

14

25-1110

NUT,5/8"-18, G5

4шт.

18

83-1388

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

1шт.

19

87410781

CLEVIS

Clevis, Rod End

1шт.

87409039

SEAL KIT

Inc. 4-5, 7-9, & 15-17

1шт.
