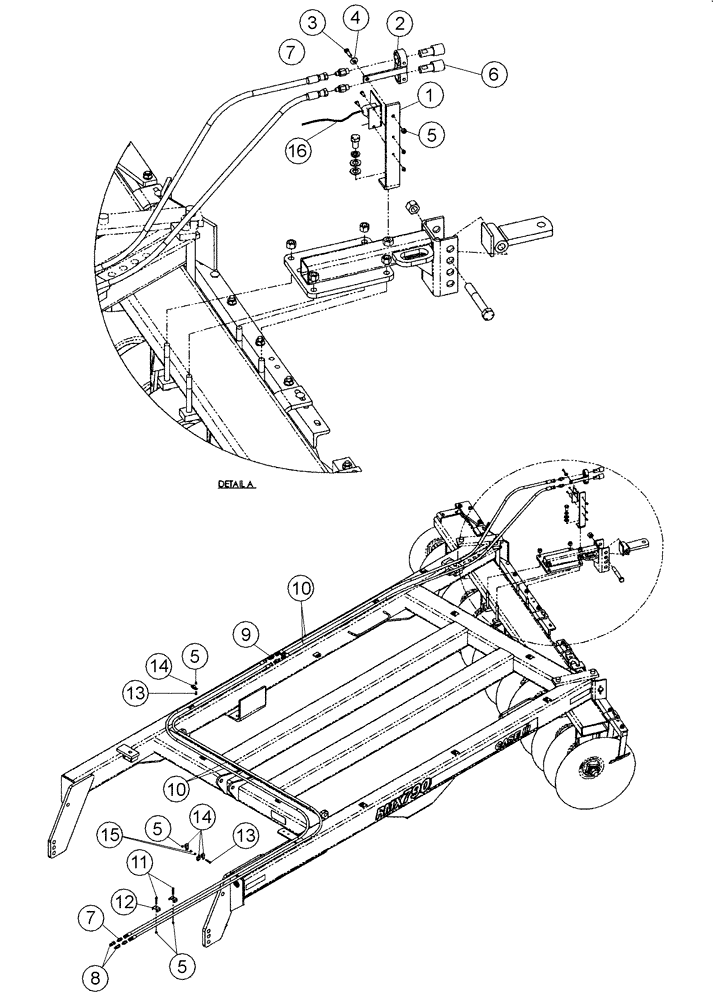

Запчасти Case IH RMX790 (35.100.05) - REAR HITCH HYDRAULICS (08) - HYDRAULICS

1

87417380

BAR

Hose Stand, Rear Hitch

1шт.

2

25705012

COUPLING

Breakaway, Frame

1шт.

3

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

4

495-21044

WASHER,3/8"

(.438 ID x 1 OD)

1шт.

5

86992213

NUT

3/8

12шт.

6

25705021

COUPLING

Female

2шт.

7

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

4шт.

8

25705041

COUPLING

3/4 SAEF

2шт.

9

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

2шт.

10

227185A1

HYDRAULIC HOSE,6.35 mm ID x 6350.00 mm, SAE 100R1

Hydraulic, 1/4 x 250

4шт.

11

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

(2 Hose Clamps)

2шт.

Used With Reference 12

1шт.

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

(3 Hose Clamps)

2шт.

Used With Reference 12

1шт.

413-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

(4 Hose Clamps)

2шт.

Used With Reference 12

1шт.

12

06200125

HOSE CLAMP

2шт.

13

433-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

(2 Hose Clamps)

1шт.

Used With Reference 14

1шт.

13

134-3

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 2", Gr 5, Full Thd

(3 Or 4 Hose Clamps)

1шт.

Used With Reference 14

1шт.

14

22510700

HOSE CLAMP,15.86mm

5/8

9шт.

15

425-106

NUT,3/8"-16, Cl 5

1шт.

16

87435657

HARNESS

Rear Hitch

1шт.
