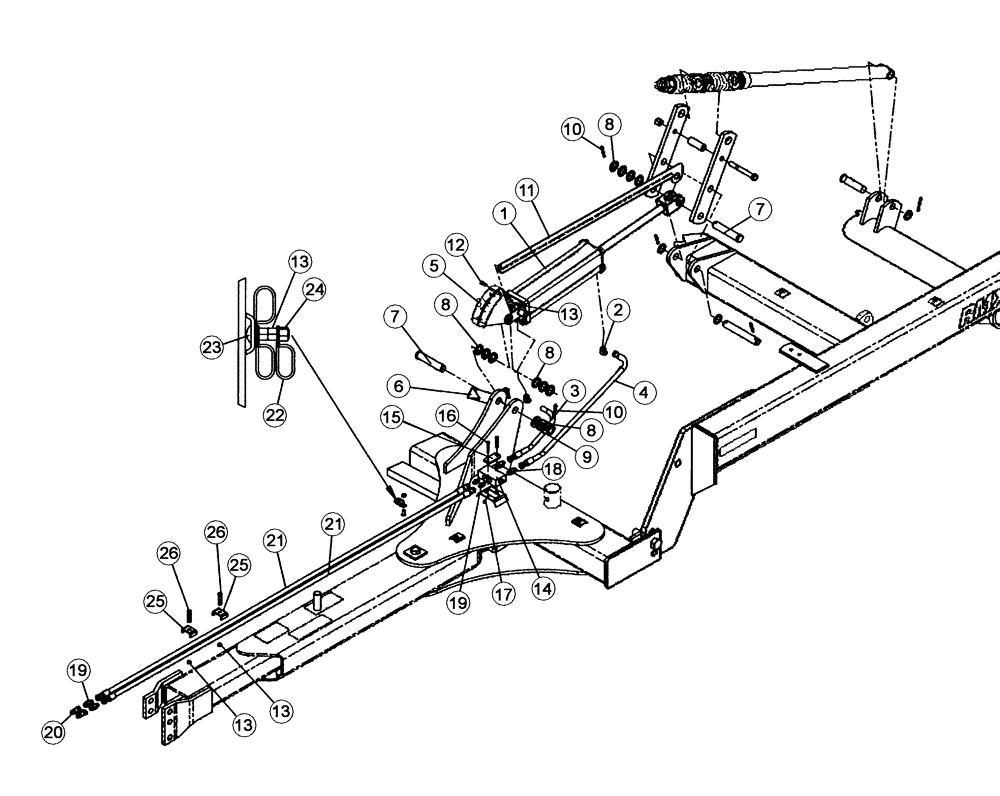

Запчасти Case IH RMX790 (35.100.04) - LEVELING PULL FRAME HYDRAULICS (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
87341190
HYDRAULIC CYLINDER,Double Acting, 44.45mm Rod, 101.6mm Stroke
Hydraulic, 4 x 4
1шт.
2
218-5128
ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB
2шт.
3
810604C1
HYDRAULIC HOSE
1/4 x 29, Hyd Leveling
1шт.
4
147876C1
HYDRAULIC HOSE
1/4 x 45, Hyd Leveling
1шт.
5
87435350
INDICATOR
Leveling, Weldment
1шт.
6
87341111
INDICATOR
Leveling
1шт.
7
427-20625
CLEVIS PIN,31.75mm OD x 158.75mm L
2шт.
8
496-81009
WASHER,33.33mm ID x 50.33mm OD x 5.41mm Thk
14шт.
9
17620020
BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L
1-1/4, 14 Ga
4шт.
10
432-1632
COTTER PIN,1/4" x 2"
3шт.
11
87342487
LINK
Leveleing Indicator
1шт.
12
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
1шт.
Used With Reference 22
1шт.
13
425-106
NUT,3/8"-16, Cl 5
Hyd Leveling
4шт.
Used With Reference 22
1шт.
14
298624A1
VALVE
Check, Hyd Leveling
1шт.
15
09987521
PLATE
Strap Top, Hyd Leveling
1шт.
16
413-436
BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5
2шт.
17
86992211
NUT
0.25, Stover, Lock, Hyd Leveling
2шт.
18
1263477C3
HYD CONNECTOR
Orifice, 3/4 SAEM-9/16 JICM, Hyd Leveling
2шт.
19
218-5058
HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB
4шт.
20
25705041
COUPLING
3/4 SAEF, Hyd Leveling
2шт.
21
315711A1
HOSE,6.35mm ID x 3555mm L
1/4 x 140, Hyd Leveling
2шт.
22
22510700
HOSE CLAMP,15.86mm
Cushion, Hyd Leveling
1шт.
23
433-616
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5
3/8 x 2, (3 Clamps) Hyd Leveling Folding
1шт.
23
134-3
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 2", Gr 5, Full Thd
3/8 x 1, (2 Clamps) Hyd Leveling Non Folding
1шт.
24
86992213
NUT
0.375, ZP, Stover, Hyd Leveling
1шт.
25
06200125
HOSE CLAMP
Hyd Leveling
2шт.
26
413-636
BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5
(2 Clamps) Hyd Leveling Non Folding
2шт.
Used With Reference #25
1шт.
26
433-648
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3", Gr 5
0.375 x 3, ZP, (3 Clamps) Hyd Leveling
2шт.
Used With Reference #25
1шт.
Выбрано товаров: 32
