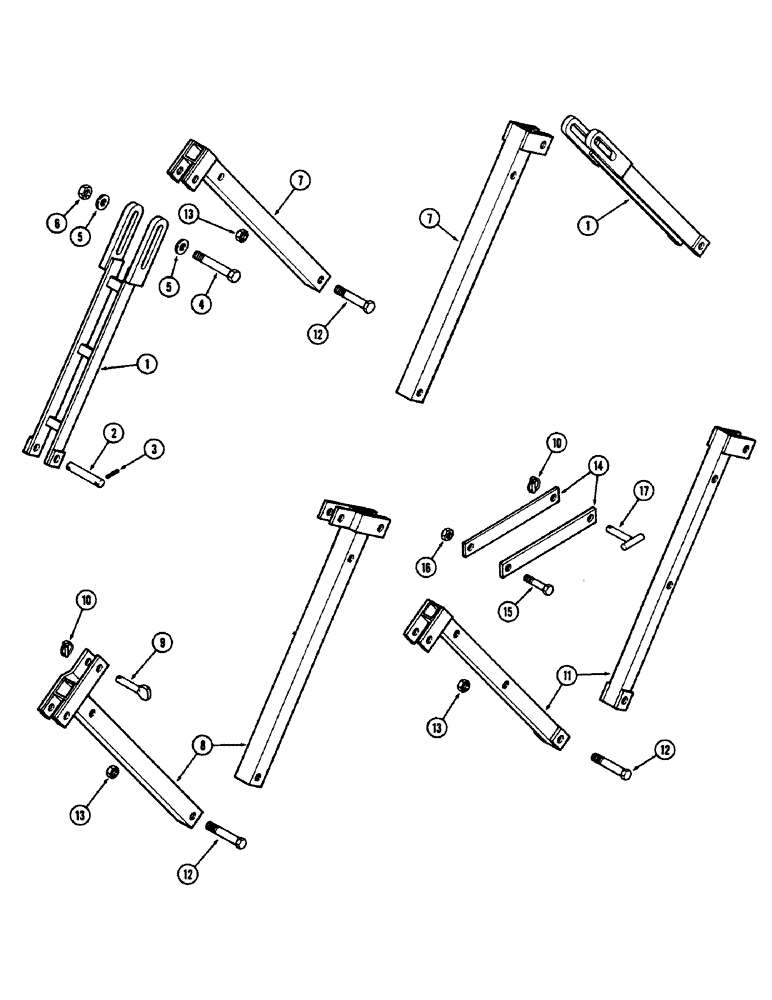

Запчасти Case IH E30 (016) - WING CONTROL ASSEMBLY

1

T52713

ARM - wing control outside

2шт.

2

T52708

PIN

2шт.

3

138-162

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, 5/16" x 2 1/4", Slotted

4шт.

4

13-20128

BOLT,Hex, 1-1/4" - 7 x 8", Gr 5

- 1-1/4 x 8" NC hex (Grade 5)

2шт.

5

195-113

WASHER,1 1/4"

- 3 x 1-3/8" x 8 gauge

4шт.

6

131-382

LOCK NUT,1 1/4"-7, GA

NUT - lock 1-1/4" NC hex

2шт.

7

T52712

ARM

- wing control inside (Before serial no. 744)

2шт.

8

T54073

ARM

- wing control inside (Serial no., Serial Range: 744-1606765)

2шт.

9

T54074

PIN

- retainer (Serial no., Serial Range: 744-1606765)

1шт.

10

A30338

PIN

- klik

2шт.

11

T55872

ARM

- wing control inside (Serial no. 1606765 and after)

2шт.

12

13-20112

BOLT,Hex, 1-1/4" - 7 x 7", Gr 5

- 1-1/4 x 7" NC hex (Grade 5)

2шт.

13

131-382

LOCK NUT,1 1/4"-7, GA

NUT - lock 1-1/4" NC hex

2шт.

14

T55870

STRAP

- transport (Serial no. 1606765 and after)

2шт.

15

113-903

BOLT,Hex, 1" - 8 x 4-1/2", Gr 5

1шт.

16

131-1184

LOCK NUT,1"-8, GA

NUT - lock 1" NC hex

1шт.

17

T55871

PIN

- transport (Serial no. 1606765 and after)

1шт.
