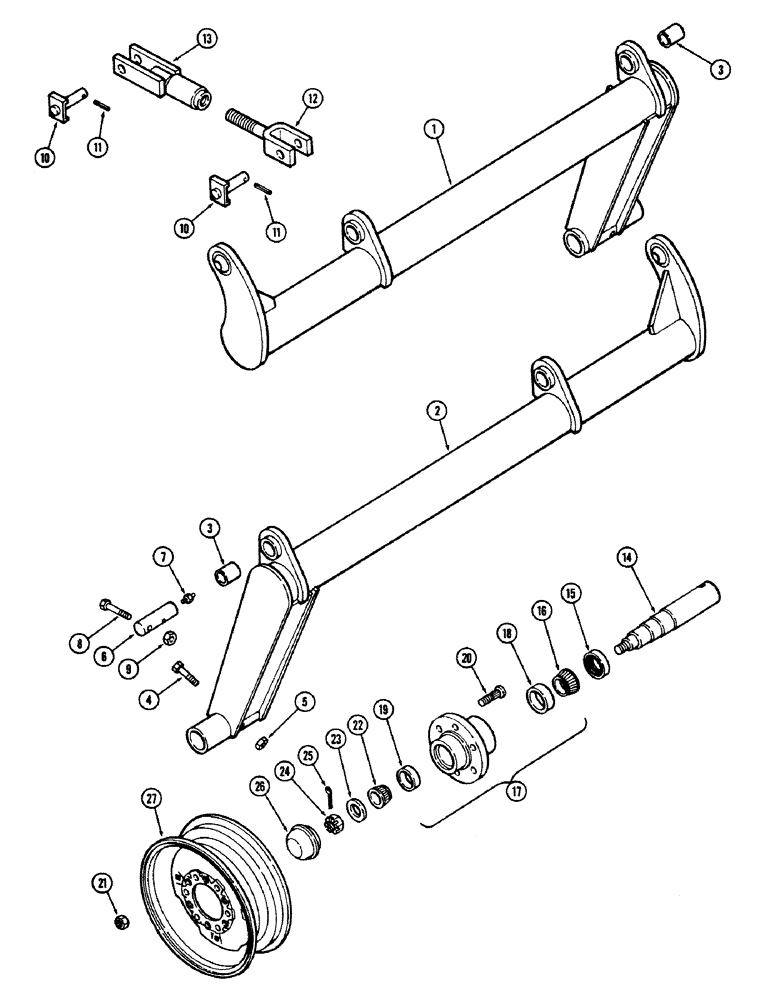

Запчасти Case IH E30 (014) - WING ROCKSHAFTS AND WHEELS

1

T53483

ROCKSHAFT - LH

1шт.

2

T53482

ROCKSHAFT - RH

1шт.

3

T51708

BUSHING

2шт.

4

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

2шт.

5

131-178

LOCK NUT,Prev Torque, Hex, 3/8" - 16, Gr A

NUT - lock 3/8" NC hex

2шт.

6

T51587

PIN

- retainer

4шт.

7

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease 5/16"

4шт.

8

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

9

131-178

LOCK NUT,Prev Torque, Hex, 3/8" - 16, Gr A

NUT - lock 3/8" NC hex

4шт.

10

T52711

PIN

- retainer

4шт.

11

138-162

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, 5/16" x 2 1/4", Slotted

4шт.

12

T53782

YOKE

- adjusting male

2шт.

13

T52710

YOKE

- adjusting female

2шт.

14

T52707

SPINDLE

2шт.

15

T30028

SEAL

- grease

2шт.

16

T20079

ROLLER BEARING,1.625" ID x 3.1496" OD x 1.1802"

CONE - bearing inner 1-5/8" ID (41.3 MM)

2шт.

17

T55906

HUB

ASSEMBLY - with cups bolts and nuts

2шт.

18

40421

BEARING CUP

CUP - bearing inner 3-5/32" OD (80.2 MM)

1шт.

19

A29977

BEARING CUP

CUP - bearing outer 2-23/32" OD (69.1 MM)

1шт.

20

E16592

WHEEL BOLT

BOLT - hub

6шт.

21

F23214

WHEEL NUT

- hub bolt

6шт.

22

A29976

ROLLER BEARING

CONE - bearing outer 1-3/8" ID (34.9 MM)

2шт.

23

95-14

WASHER,7/8"

- 2-1/4 x 15/16" x 8 gauge

2шт.

24

25-1314

SLOTTED NUT,7/8"-14, G5

NUT - 7/8" NF hex slotted

2шт.

25

132-71

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

2шт.

26

T30029

HUB CAP

CAP - hub (Order G57436)

2шт.

27

T39714

WHEEL

- 15 x 10" (381.0 x 254.0 MM)

2шт.
