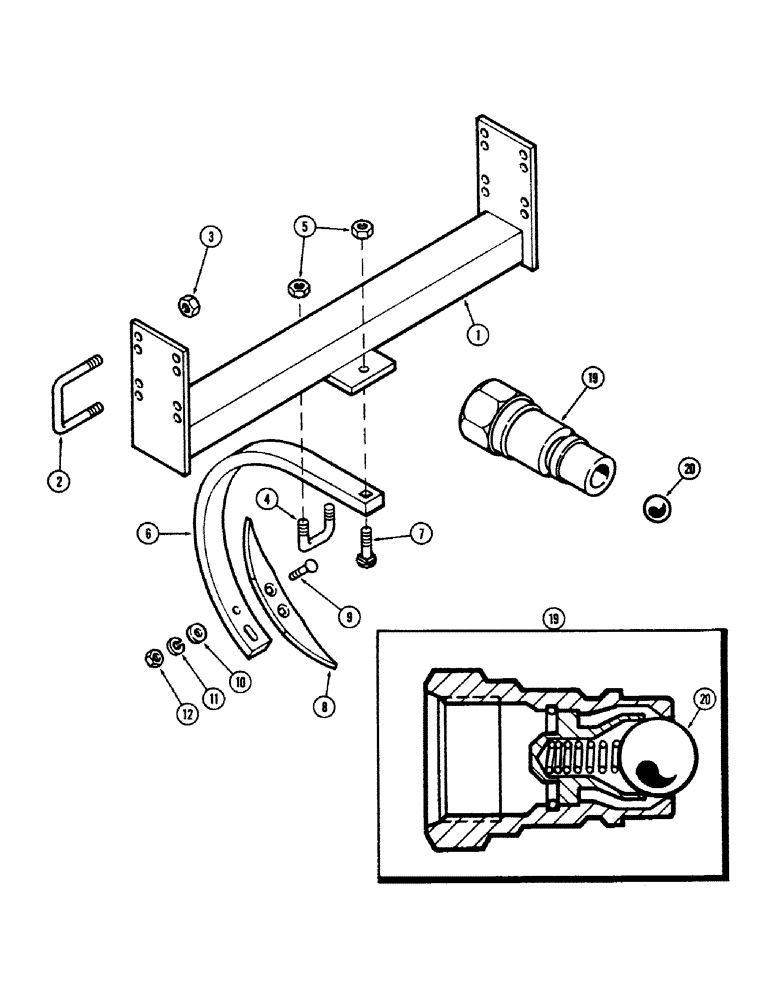

Запчасти Case IH E30 (100) - CENTER TOOTH ATTACHMENT

1

T56513

CLAMP

ATTACHMENT - center tooth

1шт.

2

T52722

U BOLT

4шт.

3

131-1131

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex

9шт.

4

T54083

U-BOLT

U BOLT

1шт.

5

230-41110

LOCK NUT,5/8"-11, GA

NUT - lock 5/8" NC hex

2шт.

6

T52735

SHANK

- tooth

1шт.

7

111-707

CARRIAGE BOLT,Short NK, 3/4" -10 x 2 1/2", G8

BOLT - 3/4 x 2-1/2" NC carriage (Grade 5)

1шт.

8

T52734

SHANK

TOOTH - spike

1шт.

9

19-836

BOLT

- plow 1/2 x 2-1/4" NC (Grade 5)

2шт.

10

195-106

WASHER,1/2"

- 1-3/8 x 9/16" x 12 gauge

2шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

12

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

19

A147889

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - breakaway (Male), hydraulic

1шт.

20

211-316

BALL,17/32" Dia

- meter, hydraulic coupler 17/32" Dia

1шт.
