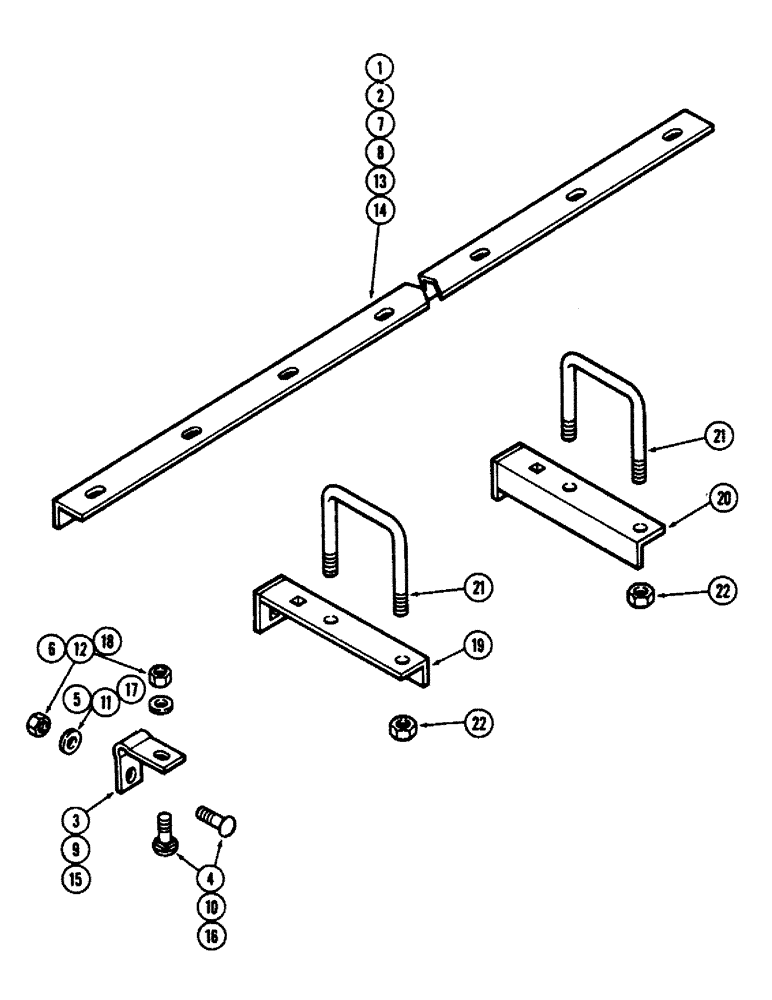

Запчасти Case IH E30 (098) - SCRAPER BARS, WING GANG, 10-1/2 INCH (266.7 MM) SPACING, MODEL 11-318

1

T52045

BAR - scraper (Front LH and RH) 79-3/8" (2016.1 MM)

2шт.

2

T52046

BAR

- scraper (Rear LH and RH) 100-5/8" (2555.9 MM)

2шт.

3

T51592

BRACKET

- scraper bar

12шт.

4

111-617

BOLT,Short NK, 5/8"-11 x 1 3/4", G5

- 5/8 x 1-3/4" NC carriage (Grade 5)

24шт.

5

195-108

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge

24шт.

6

230-41110

LOCK NUT,5/8"-11, GA

NUT - lock 5/8" NC hex

24шт.

7

T52038

BAR

- scraper (Front LH and RH) 90" (2286.0 MM), model 11-339

2шт.

8

T52047

BAR

- scraper (Rear LH and RH) 111-1/4" (2825.8 MM), model 11-339

2шт.

9

T51592

BRACKET

- scraper bar, model 11-339

12шт.

10

111-617

BOLT,Short NK, 5/8"-11 x 1 3/4", G5

- 5/8 x 1-3/4" NC carriage (Grade 5), model 11-339

24шт.

11

195-108

WASHER,5/8"

- 1-3/4" x 11/16" x 10 gauge, model 11-339

24шт.

12

230-41110

LOCK NUT,5/8"-11, GA

NUT - lock 5/8" NC hex, model 11-339

24шт.

13

T52046

BAR

- scraper (Front LH and RH) 100-5/8" (2555.9 MM) , model 11-360

2шт.

14

T52036

BAR

- scraper (Rear LH and RH) 58-1/8" (1476.4 MM), model 11-360

4шт.

15

T51592

BRACKET

- scraper bar, model 11-360

18шт.

16

111-617

BOLT,Short NK, 5/8"-11 x 1 3/4", G5

- 5/8 x 1-3/4" NC carriage (Grade 5), model 11-360

36шт.

17

195-108

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge, model 11-360

36шт.

18

230-41110

LOCK NUT,5/8"-11, GA

NUT - lock 5/8" NC hex, model 11-360

36шт.

19

T52031

MOUNTING PARTS

MOUNT - scraper bar (Front RH), model 11-360

2шт.

20

T52032

MOUNTING PARTS

MOUNT - scraper bar (Front LH), model 11-360

2шт.

21

T51593

BOLT

U BOLT, model 11-360

4шт.

22

131-385

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex, model 11-360

8шт.
