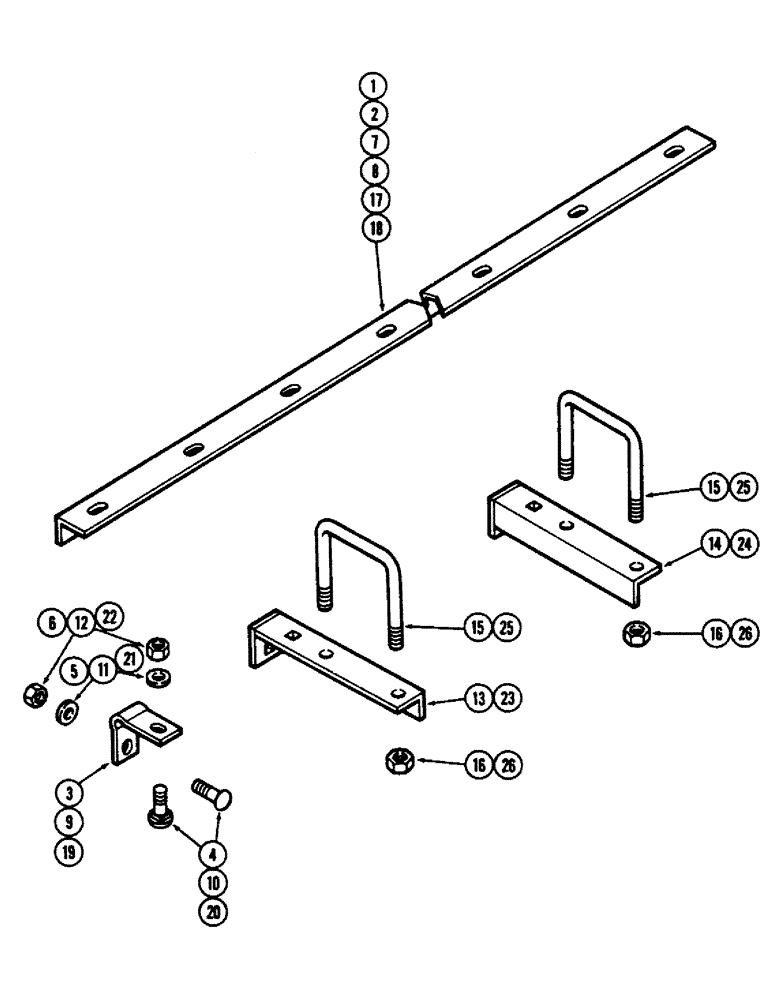

Запчасти Case IH E30 (096) - SCRAPER BARS, WING GANG, 9 INCH (228.6 MM) SPACING, MODEL 9-306

1

T52035

BAR

- scraper (Front LH and RH) 79" (2006.6 MM)

2шт.

2

T52039

BAR

- scraper (Rear LH and RH) 97-1/2" (2476.5 MM)

2шт.

3

T51592

BRACKET

- scraper bar

12шт.

4

111-617

BOLT,Short NK, 5/8"-11 x 1 3/4", G5

- 5/8 x 1-3/4" NC carriage (Grade 5)

24шт.

5

195-108

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge

24шт.

6

230-41110

LOCK NUT,5/8"-11, GA

NUT - lock 5/8" NC hex

24шт.

7

T52042

ANGLE

BAR - scraper (Front LH and RH) 88-1/4" (2241.6 MM) , model 9-324

2шт.

8

T52040

BAR

- scraper (Rear LH and RH) 106-3/3" (2711.5 MM) , model 9-324

2шт.

9

T51592

BRACKET

- scraper bar , model 9-324

14шт.

10

111-617

BOLT,Short NK, 5/8"-11 x 1 3/4", G5

- 5/8 x 1-3/4" NC carriage (Grade 5) , model 9-324

28шт.

11

195-108

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge , model 9-324

28шт.

12

230-41110

LOCK NUT,5/8"-11, GA

NUT - lock 5/8" NC hex , model 9-324

28шт.

13

T52031

MOUNTING PARTS

MOUNT - scraper bar (Rear LH and front RH) , model 9-324

1шт.

14

T52032

MOUNTING PARTS

MOUNT - scraper bar (Rear RH and front LH) , model 9-324

1шт.

15

T51593

BOLT

U BOLT , model 9-324

2шт.

16

131-385

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex , model 9-324

4шт.

17

T52040

BAR

- scraper (Front LH and RH) 106-3/4" (2711.5 MM) , model 9-360

2шт.

18

T52033

BAR

- scraper (Rear LH and RH) 60-1/2" (1536.7 MM) , model 9-324

4шт.

19

T51592

BRACKET

- scraper bar , model 9-324

20шт.

20

111-617

BOLT,Short NK, 5/8"-11 x 1 3/4", G5

- 5/8 x 1-3/4" NC carriage (Grade 5) , model 9-324

40шт.

21

195-108

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge , model 9-324

40шт.

22

230-41110

LOCK NUT,5/8"-11, GA

NUT - lock 5/8" NC hex , model 9-324

40шт.

23

T52031

MOUNTING PARTS

MOUNT - scraper bar (Rear LH and front RH) , model 9-324

3шт.

24

T52032

MOUNTING PARTS

MOUNT - scraper bar (Rear RH and front LH) , model 9-324

3шт.

25

T51593

BOLT

U BOLT , model 9-324

6шт.

26

131-385

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex , model 9-324

12шт.
