Запчасти Case IH E30 (094[1]) - SCRAPERS, FRONT AND REAR, WING GANG, 10-1/2 INCH (266.7 MM), MODEL 11-339

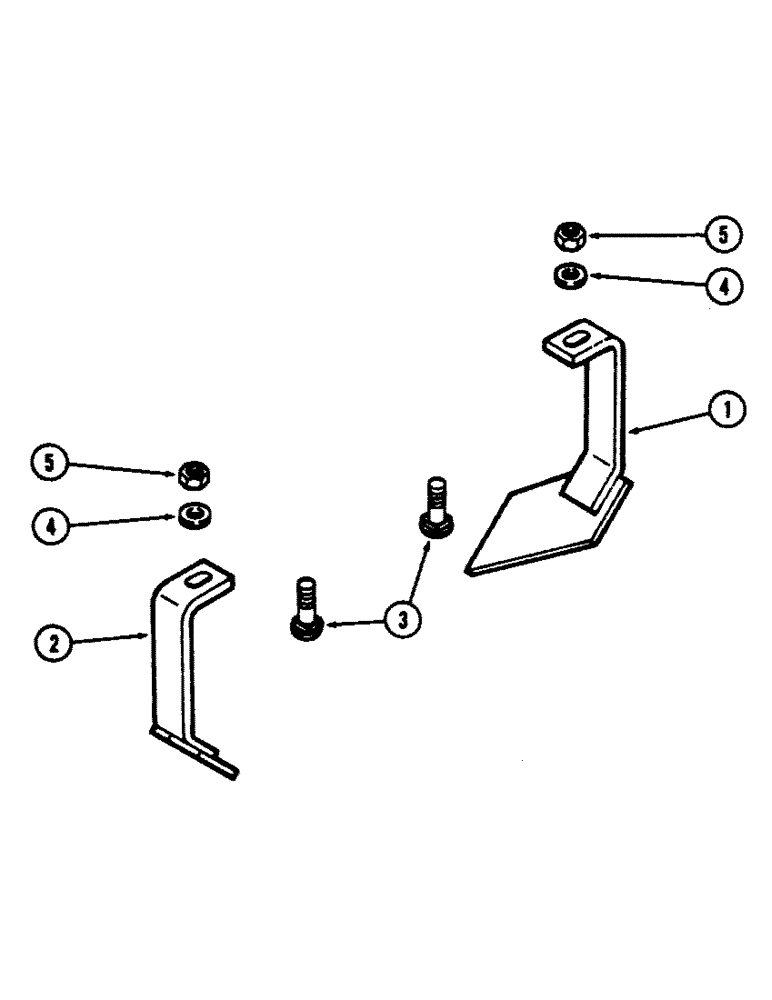

Схема запчастей Case IH E30 - (094[1]) - SCRAPERS, FRONT AND REAR, WING GANG, 10-1/2 INCH (266.7 MM), MODEL 11-339

Артикул

Название

Примечание

Количество

1

T51597

SCRAPER

- front LH and rear RH

18шт.

2

T51596

SCRAPER

- front RH and rear LH

18шт.

3

111-617

BOLT,Short NK, 5/8"-11 x 1 3/4", G5

- 5/8 x 1-3/4" NC carriage (Grade 5)

36шт.

4

195-108

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge

36шт.

5

230-41110

LOCK NUT,5/8"-11, GA

NUT - lock 5/8" NC hex

36шт.

1

T51597

SCRAPER

- front LH and rear RH

20шт.

2

T51596

SCRAPER

- front RH and rear LH

20шт.

3

111-617

BOLT,Short NK, 5/8"-11 x 1 3/4", G5

- 5/8 x 1-3/4" NC carriage (Grade 5)

40шт.

4

195-108

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge

40шт.

5

230-41110

LOCK NUT,5/8"-11, GA

NUT - lock 5/8" NC hex

40шт.

1

T51597

SCRAPER

- front LH and rear RH

22шт.

2

T51596

SCRAPER

- front RH and rear LH

22шт.

3

111-617

BOLT,Short NK, 5/8"-11 x 1 3/4", G5

- 5/8 x 1-3/4" NC carriage (Grade 5)

44шт.

4

195-108

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge

44шт.

5

230-41110

LOCK NUT,5/8"-11, GA

NUT - lock 5/8" NC hex

44шт.

Выбрано товаров: 15
